Memory Operation

Selecting the memorized position.

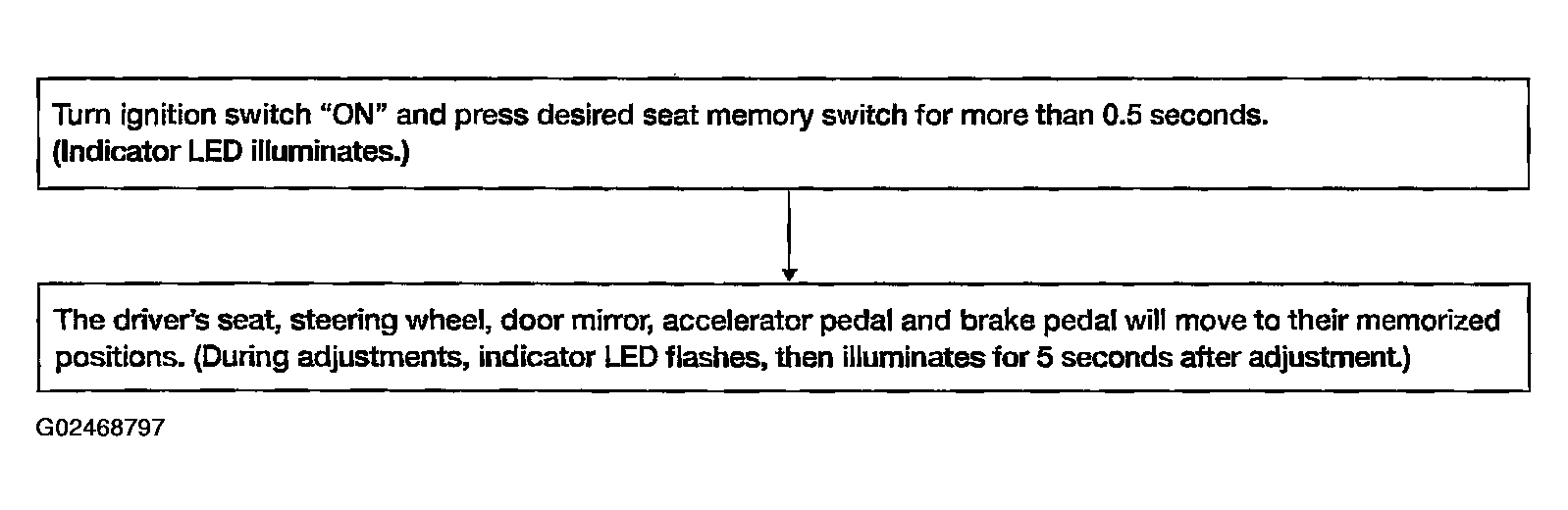

Fig 1: Memory Operation Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The front seat position and pedal adjustment functions (see the following table) operate simultaneously in the order of priority.

MEMORY OPERATION CHART

Priority

Function

Priority

Function

Seat sliding, (door mirror LH/RH)⁽¹⁾

Seat reclining

Pedal

Seat lifter-FR

Steering wheel

Seat lifter-RR

⁽¹⁾	In conjunction with sliding the seat, the door mirrors are positioned.
