Front Bumper

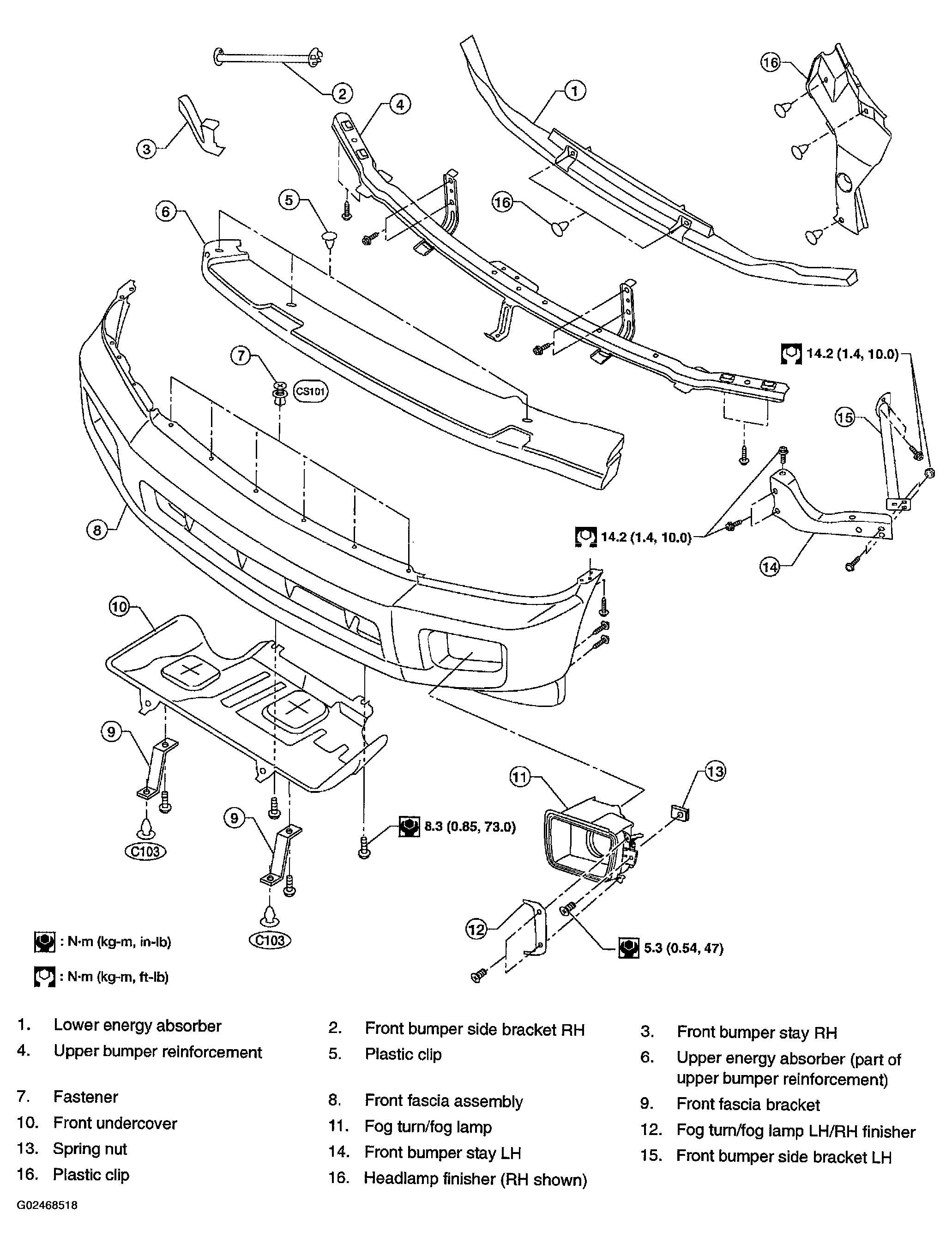

Fig 1: Exploded View Of Front Bumper
G02468518Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove side screws from fascia assembly.
  2. Remove screws from front of fender protector. Refer to FENDER PROTECTOR .
  3. Remove engine undercover.
  4. Remove fog turn/fog lamp finisher and fog turn/fog lamp.
    • Disconnect harnesses.
  5. Remove engine underside cover.
  6. Remove fasteners, release clips and remove front fascia assembly.
  7. Remove plastic clips and remove upper energy absorber.
  8. Remove upper bumper reinforcement.
  9. Remove plastic clips and remove lower energy absorber.
  10. Remove front bumper stays and front bumper side brackets, LH and RH. Installation is in the reverse order of removal.
