Removal and Installation: Front

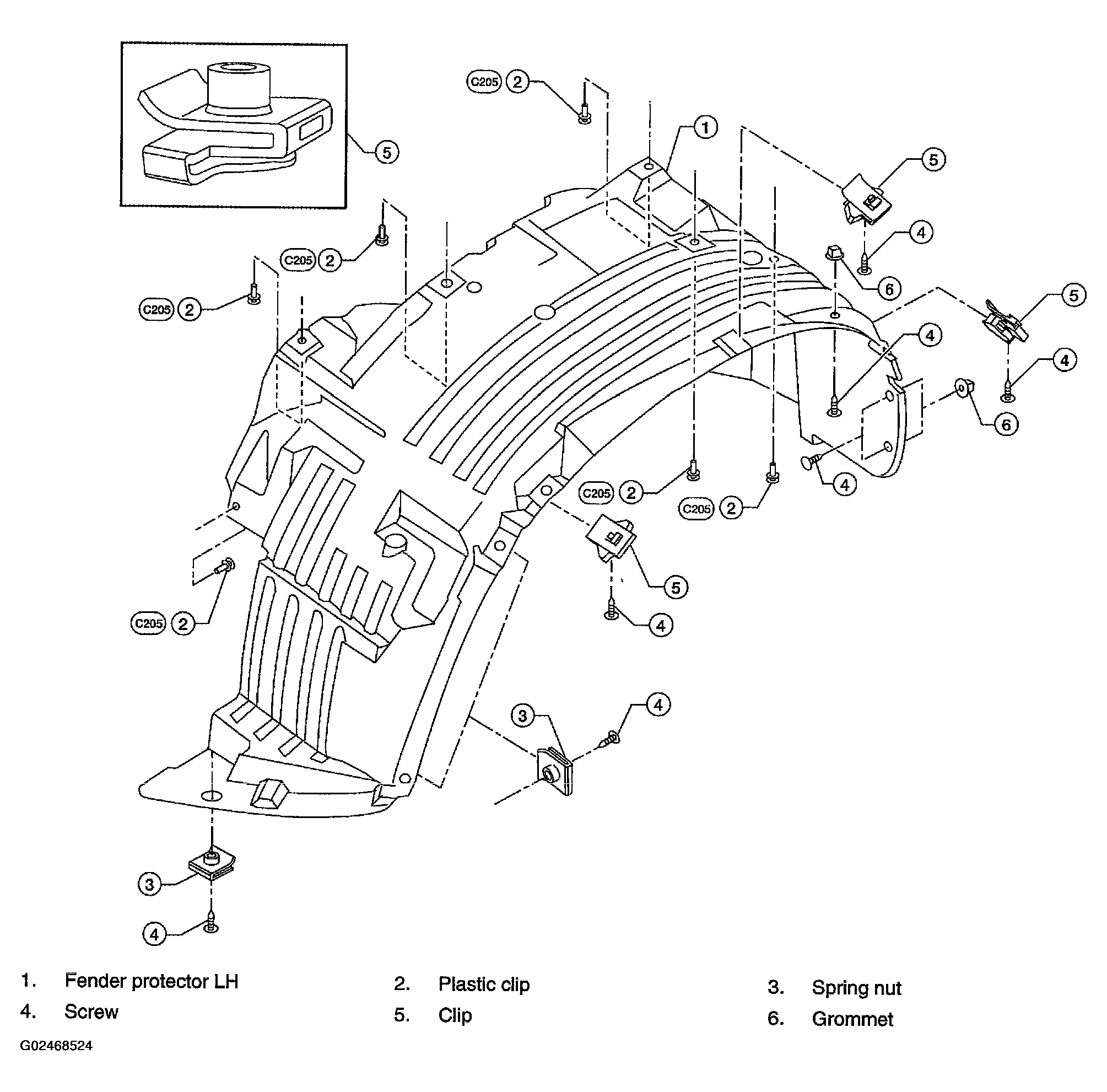

Fig 1: Exploded View Of Fender Protector

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove screws.
2. Remove plastic clips.
3. Remove front fender protector.
4. Remove clips and spring nuts from fender protector.

Installation is in the reverse order of removal.
