Symptom Chart

NOTE:

Always check the "Trouble Diagnosis Procedure" before troubleshooting. Refer to TROUBLE DIAGNOSIS PROCEDURE .
Always check keyfob battery before replacing keyfob. Refer to KEYFOB BATTERY AND FUNCTION CHECK .
The panic alarm operation and power back door opener operation of remote keyless entry system to not activate with the ignition key inserted in the ignition key cylinder.
Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of keyfob before replacing keyfob.

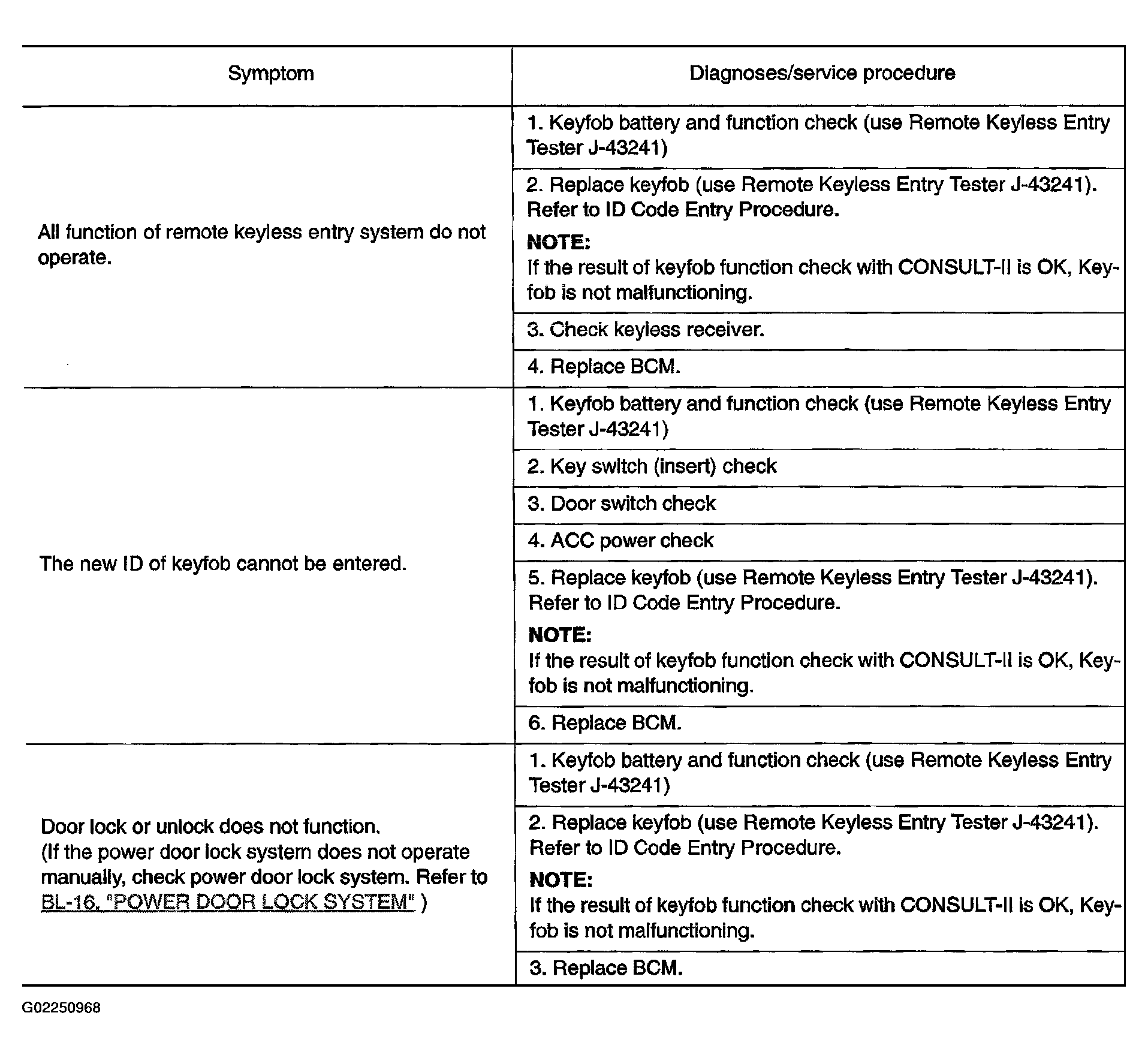

Fig 1: Remote Keyless Entry System Symptom Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

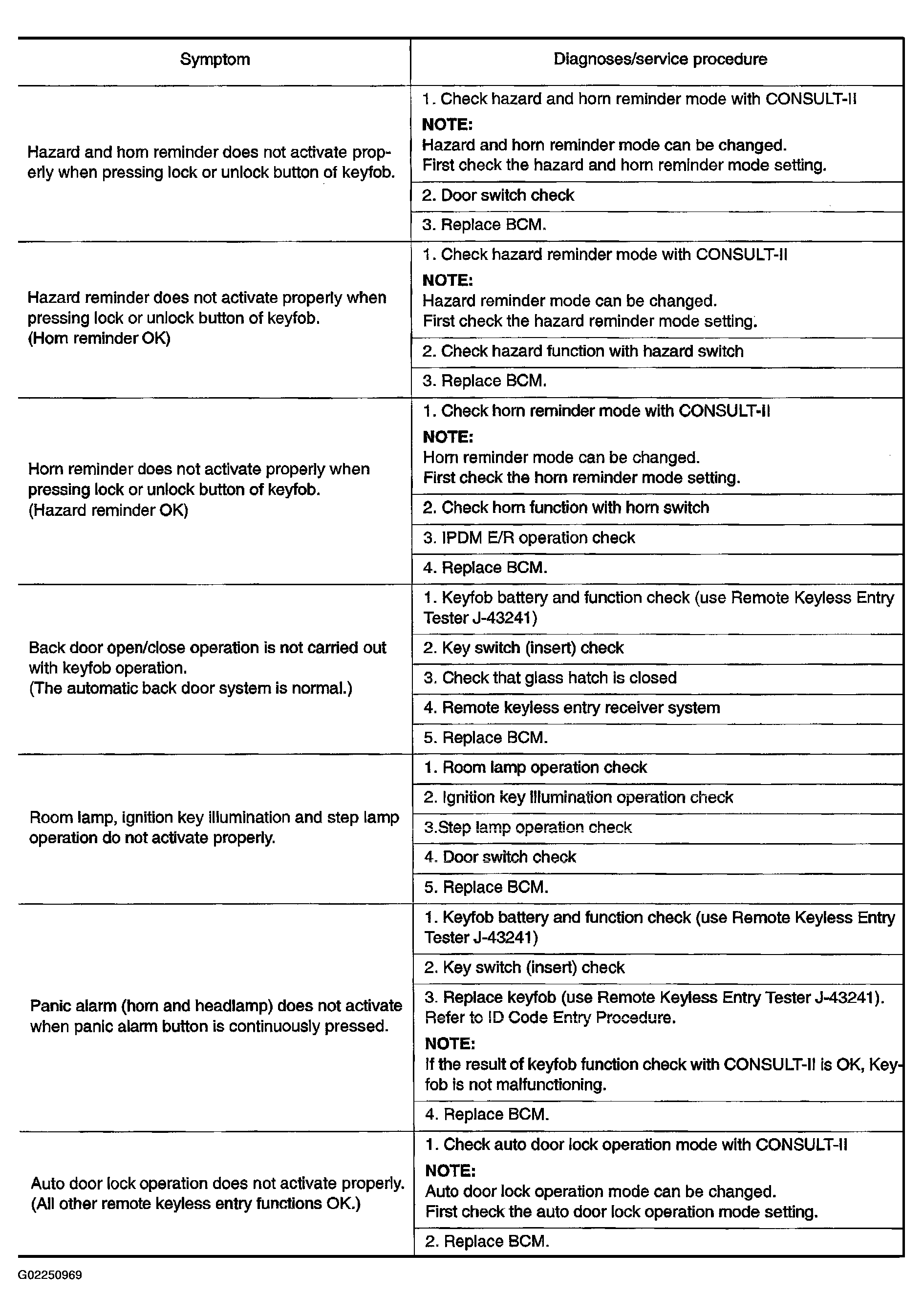

Fig 2: Remote Keyless Entry System Symptom Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

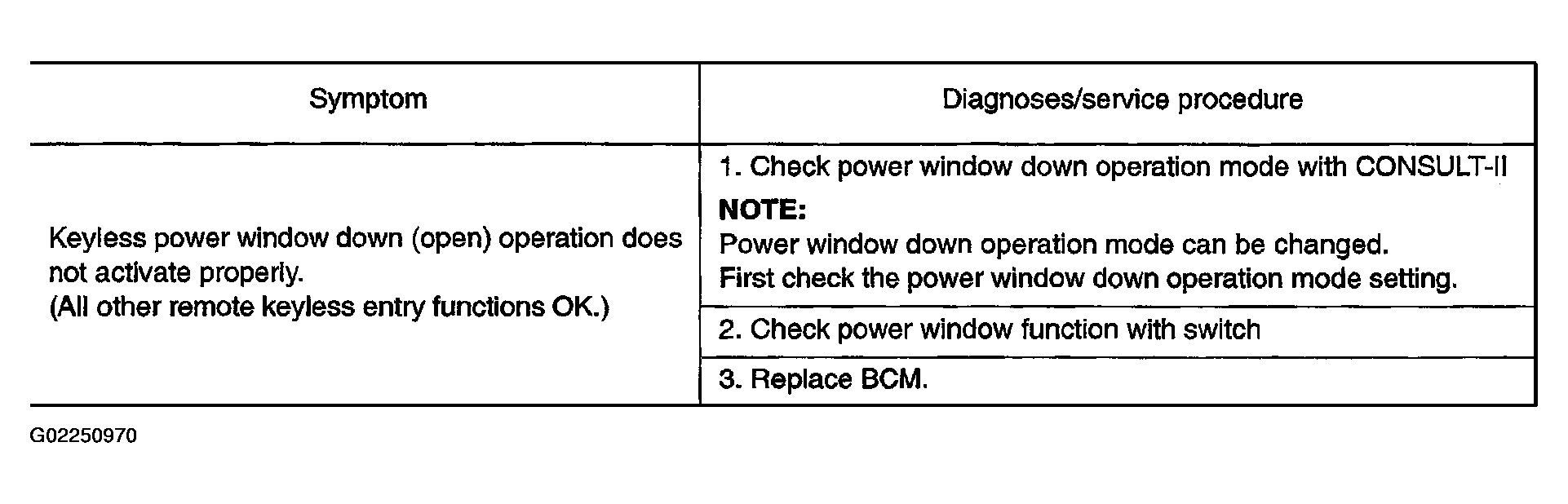

Fig 3: Remote Keyless Entry System Symptom Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
