Rear Case: Disassembly

  1. Remove bolts.

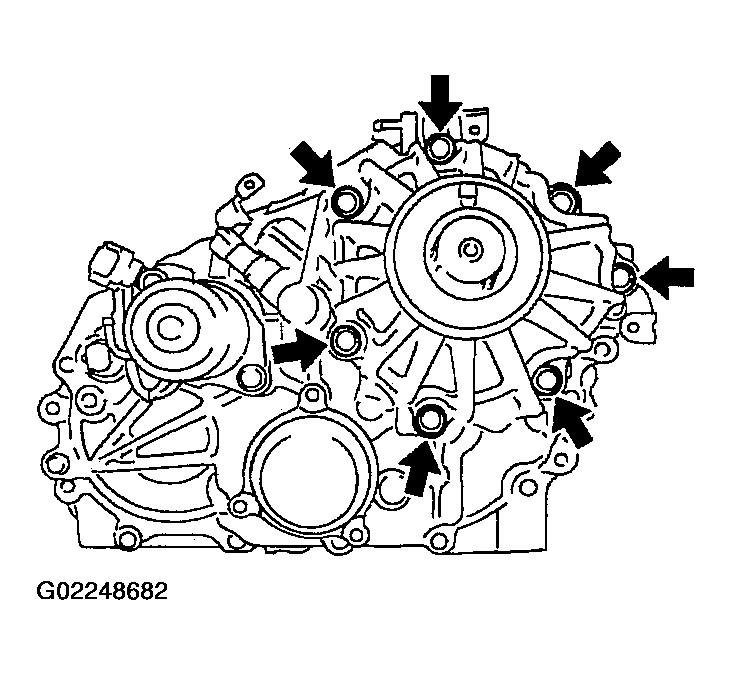

    2. Fig 1: Removing Rear Case Bolts
    G02248682Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove rear case from center case, using suitable tool.
    3. Fig 2: Removing Rear Case From Center Case
    G02248683Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the dust cover, using suitable tool.
    4. Fig 3: Removing Dust Cover
    G02248684Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the oil seal, using suitable tool.
    Fig 4: Removing Oil Seal
    G02248685Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful not to damage the rear case.
  5. Remove the air breather.
