Circuit Diagram for Quick Pinpoint Check

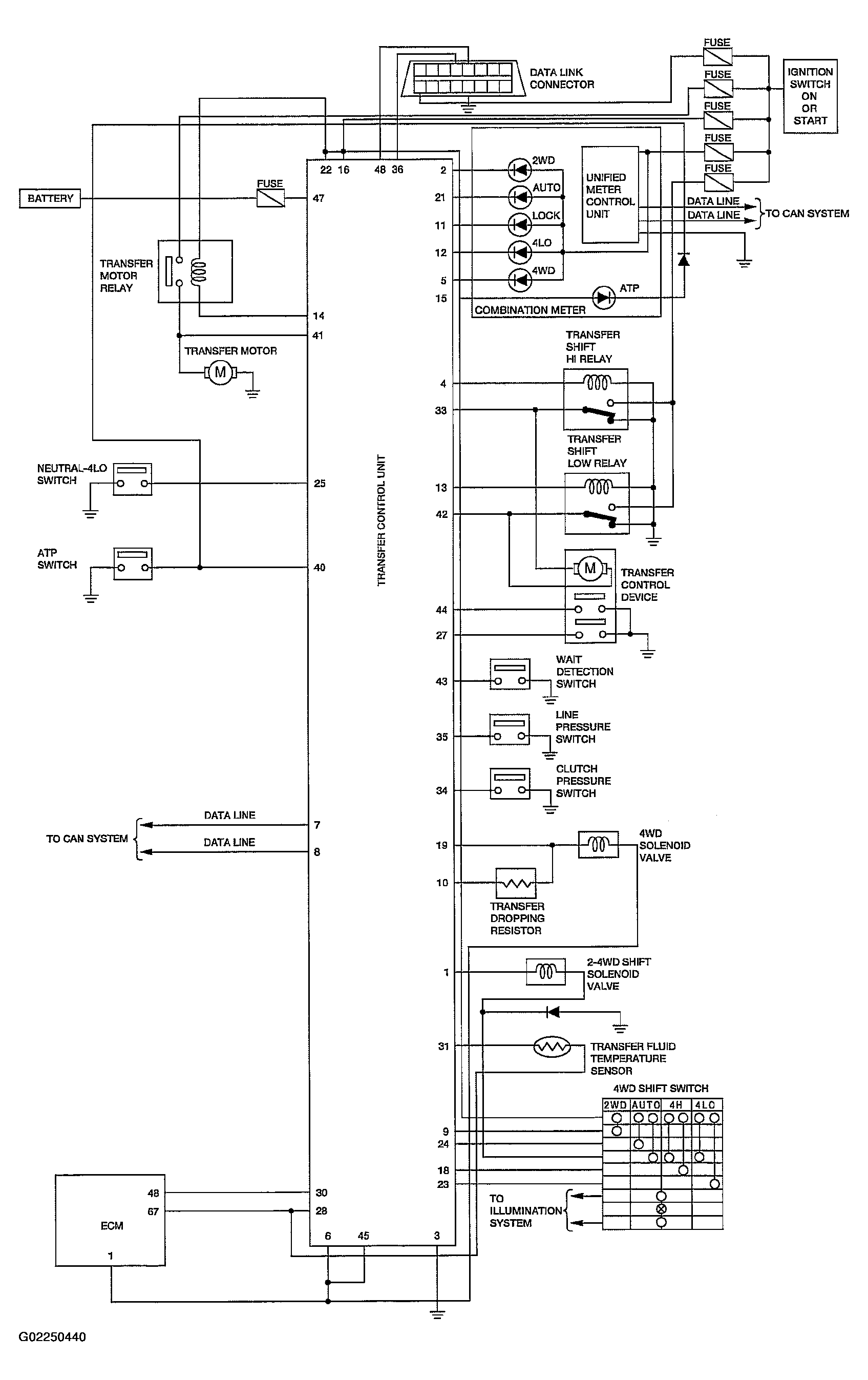

Fig 1: Quick Pinpoint Check Circuit Diagram

G02250440

Courtesy of NISSAN MOTOR CO., U.S.A.
