Oil Pump: Components

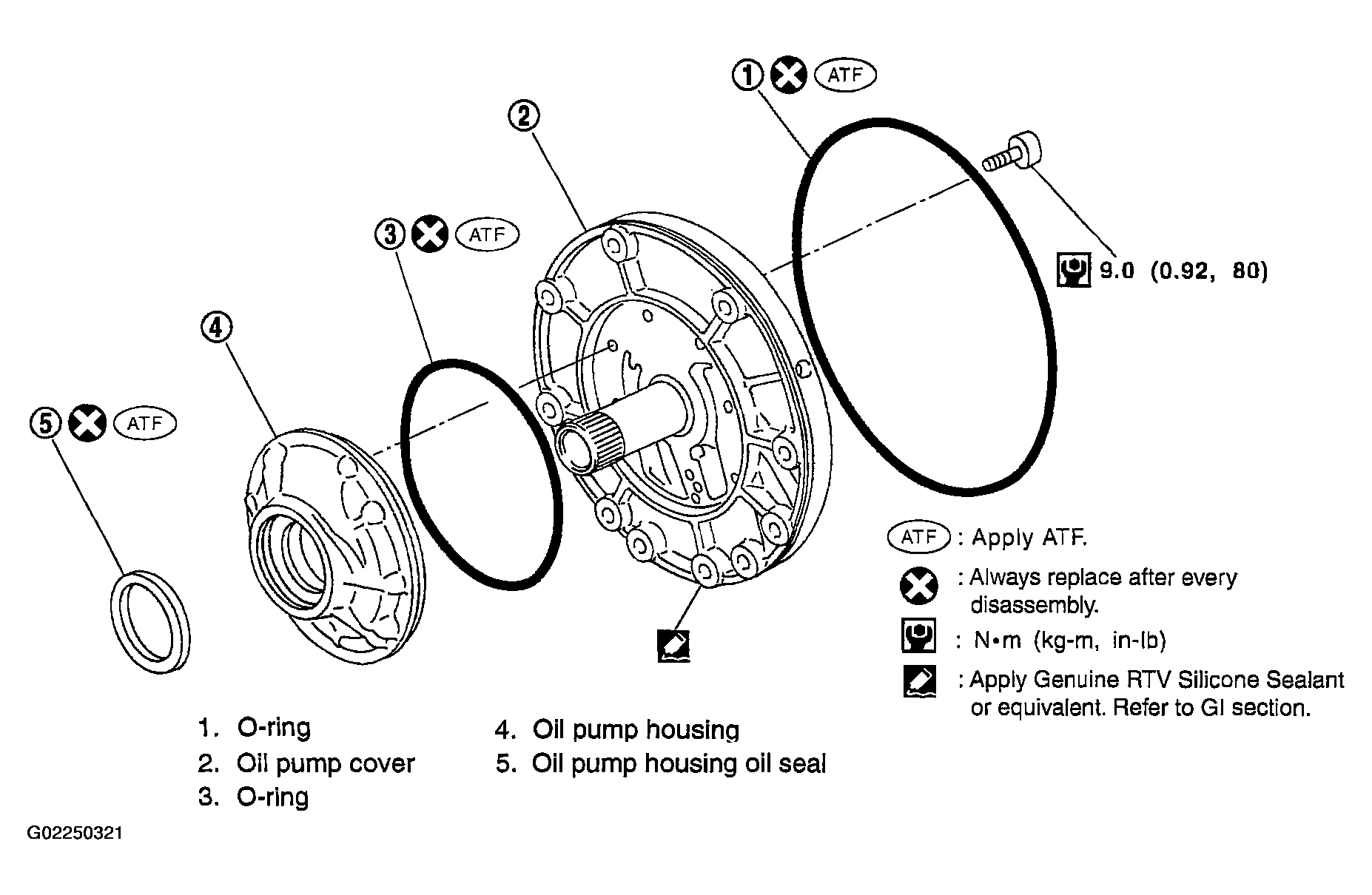

Fig 1: Exploded View And Torque Specifications Of Oil Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
