Direct Clutch: Assembly

  1. Install drive plates, driven plates and retaining plate in direct clutch drum.
    CAUTION: Take care with the order of plates.

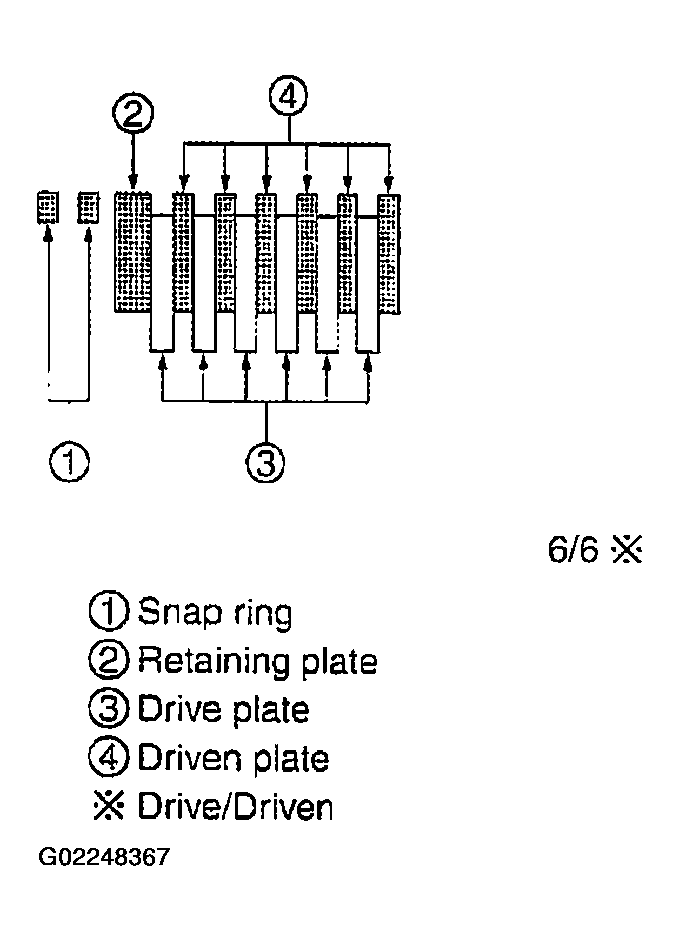

    2. Fig 1: Installing Drive Plates, Driven Plates And Retaining Plate In Direct Clutch Drum
    G02248367Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Using a flat-bladed screwdriver, install snap rings in direct clutch drum.

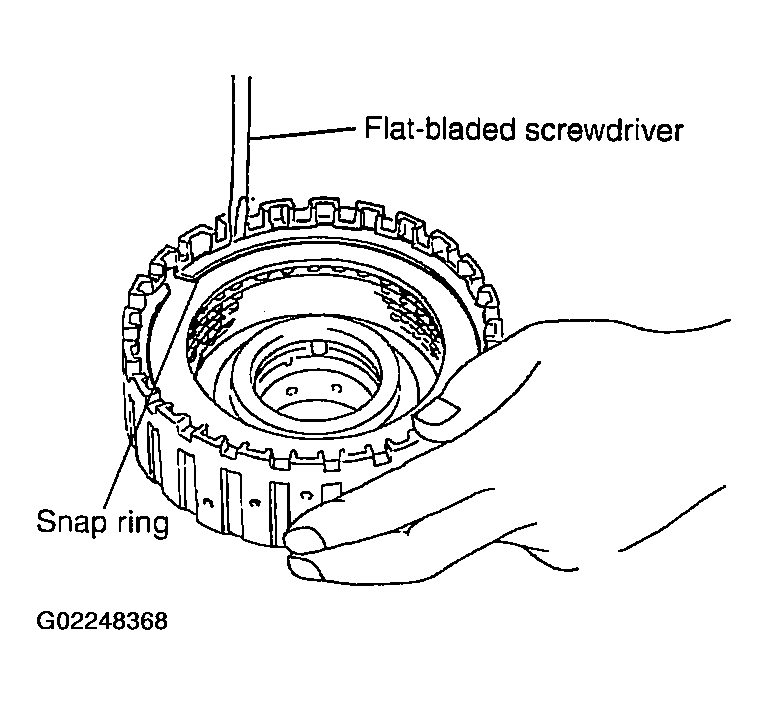

Fig 2: Installing Snap Rings In Direct Clutch Drum
G02248368Courtesy of NISSAN MOTOR CO., U.S.A.
