Oil Channel
Oil Channel

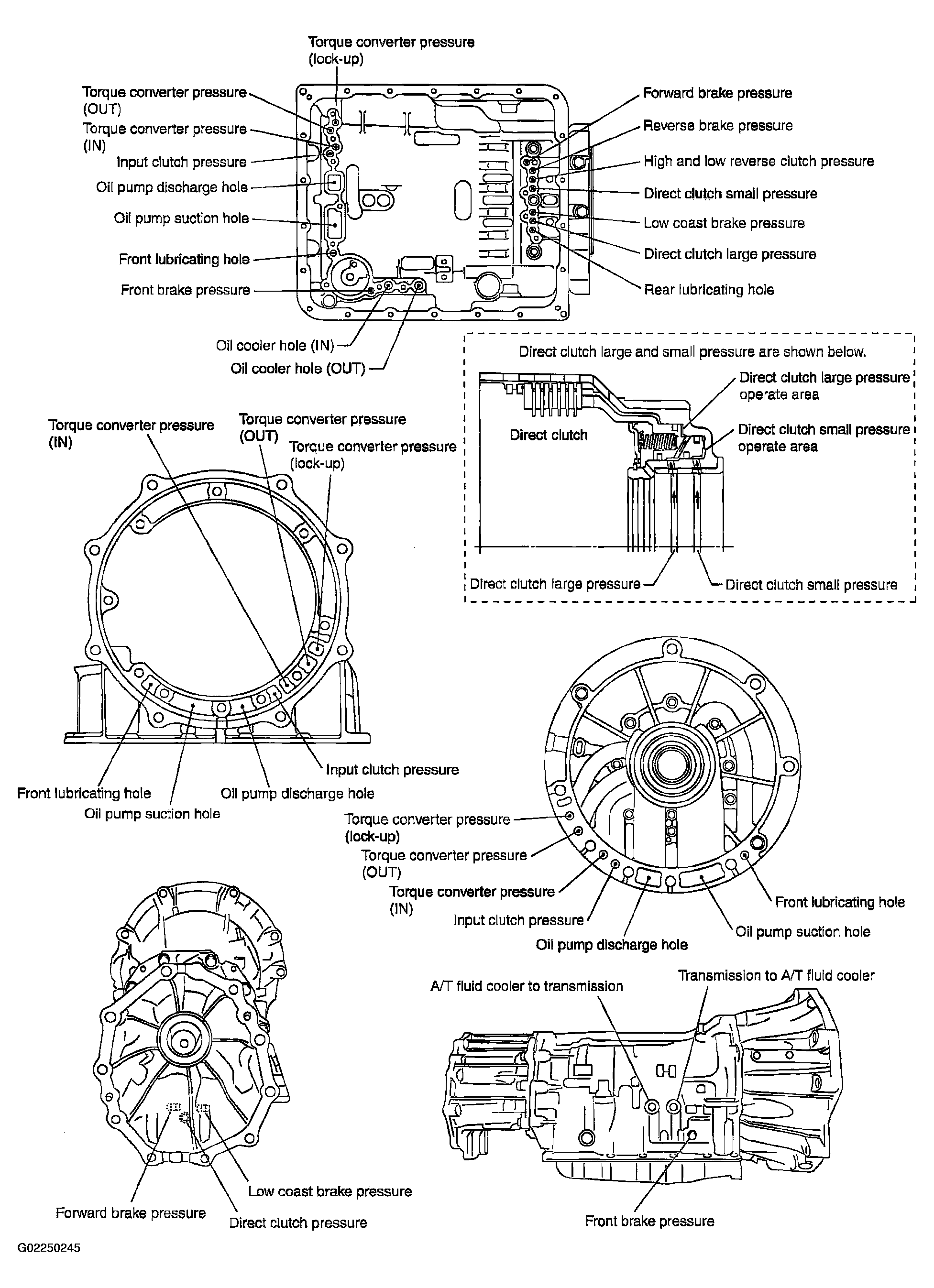

Fig 1: Identifying Oil Channel Components (2WD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.

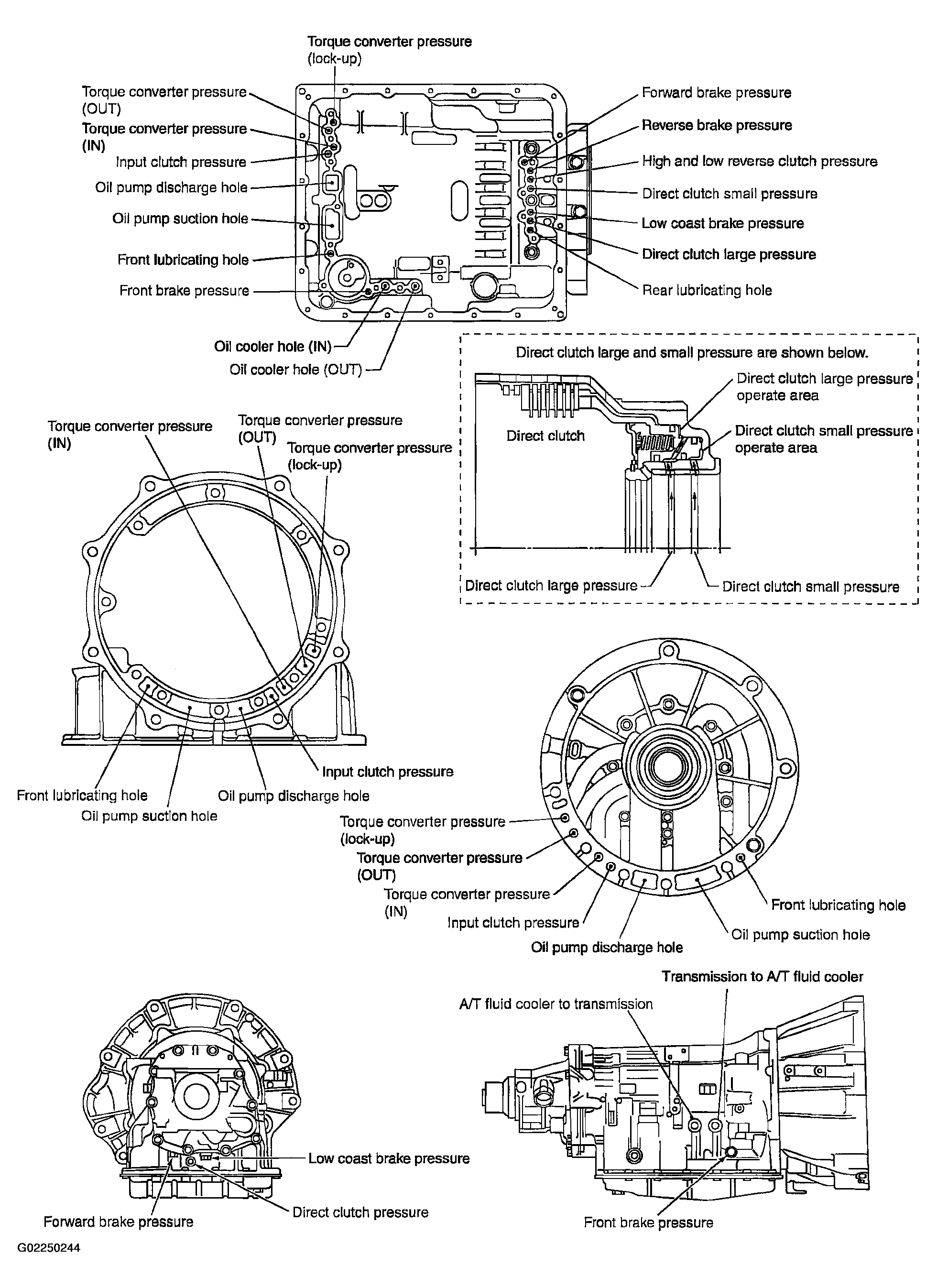

Fig 2: Identifying Oil Channel Components (4WD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
