Home >> Infiniti >> 2004 >> QX56 AWD >> Repair and Diagnosis >> Steering >> Power Steering System - QX56 >> Steering Column >> Disassembly and Assembly >> Notes

Disassembly and Assembly: Notes

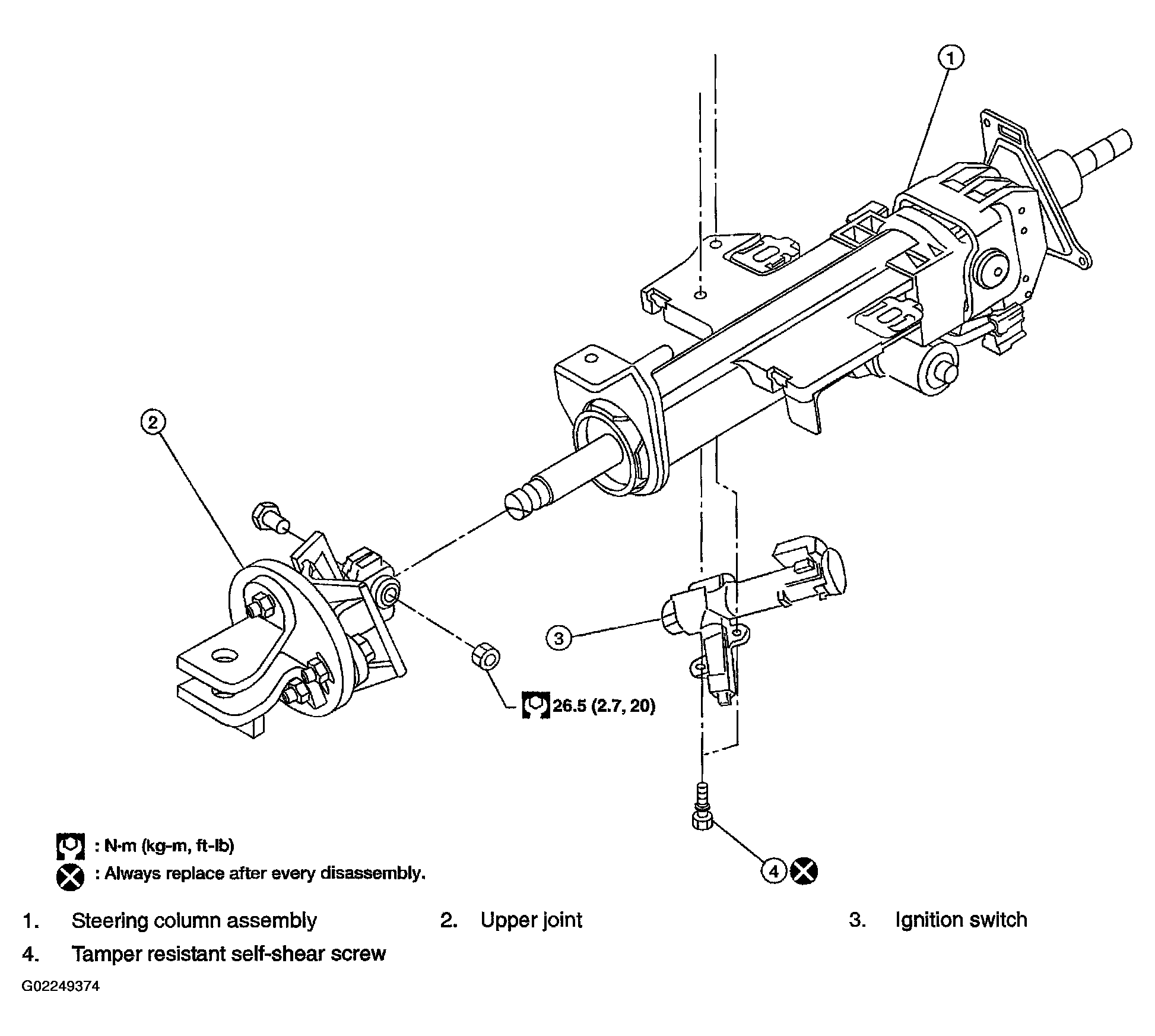

Fig 1: Exploded View And Torque Specification Of Steering Column

G02249374

Courtesy of NISSAN MOTOR CO., U.S.A.
