Disassembly and Assembly: Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Clean up the disassemble parts. Then, inspect if the parts are wear or damaged. If so, follow the measures below.

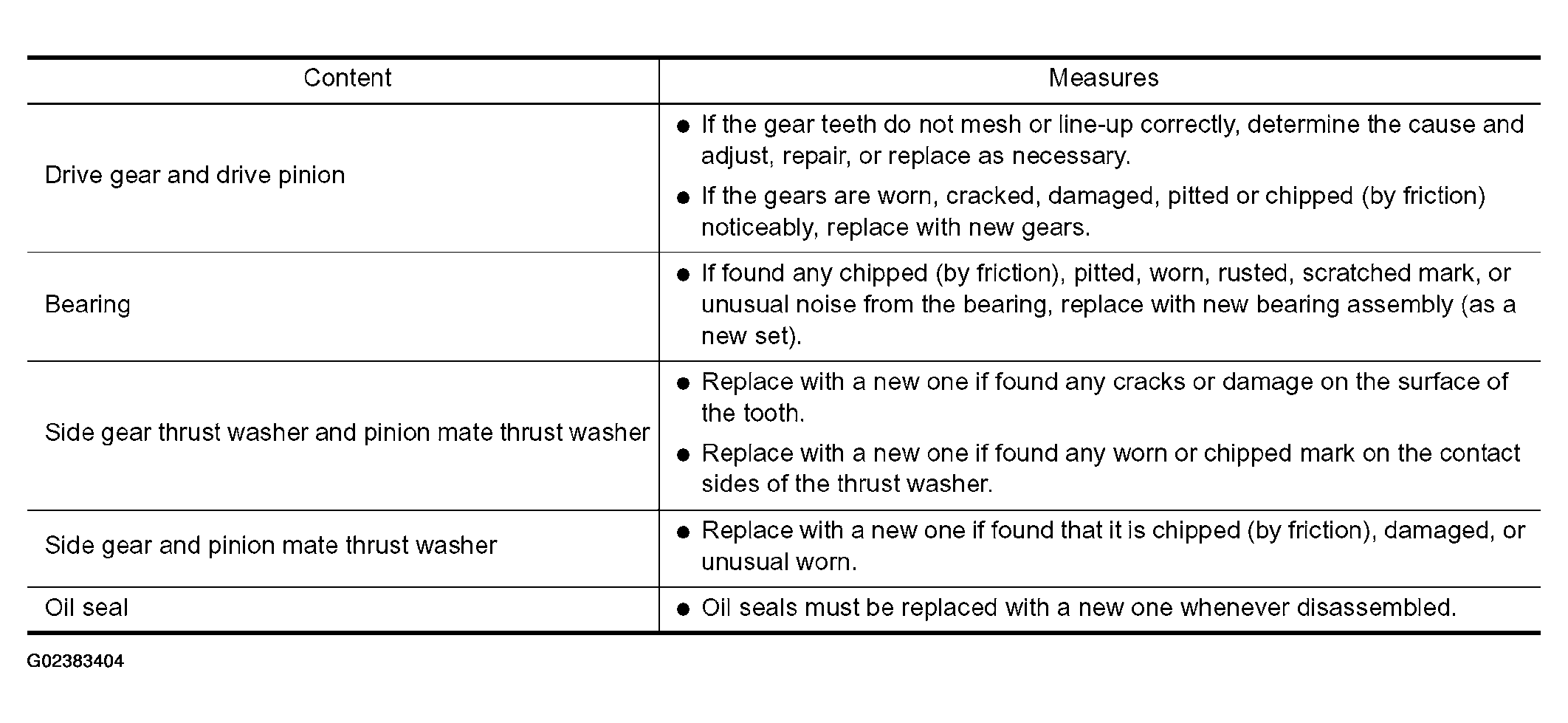

Fig 1: Front Final Drive Assembly Parts - Inspection Reference (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

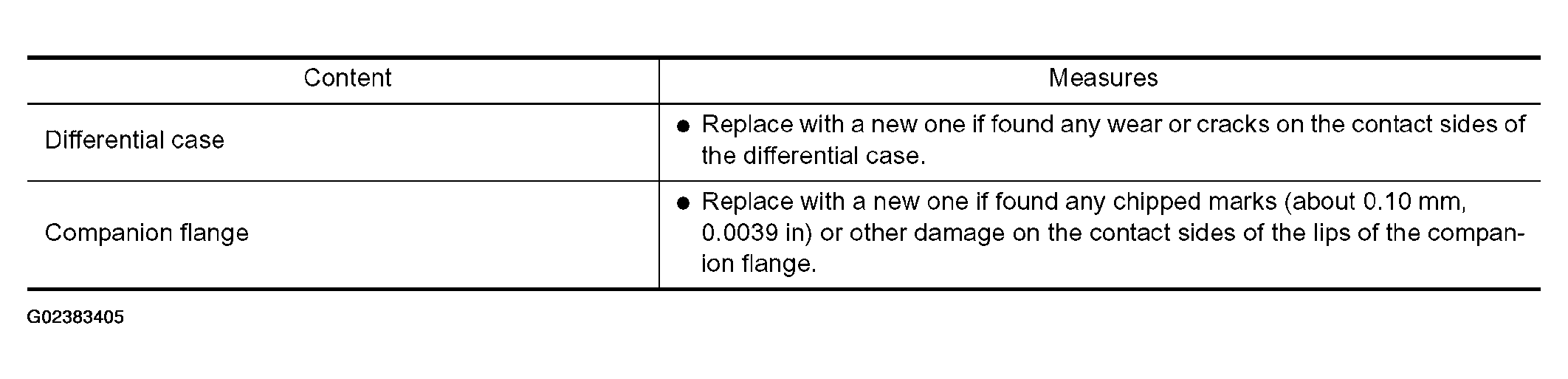

Fig 2: Front Final Drive Assembly Parts - Inspection Reference (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
