On Board Diagnosis Logic

To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1 signal fluctuates according to fuel feedback control.

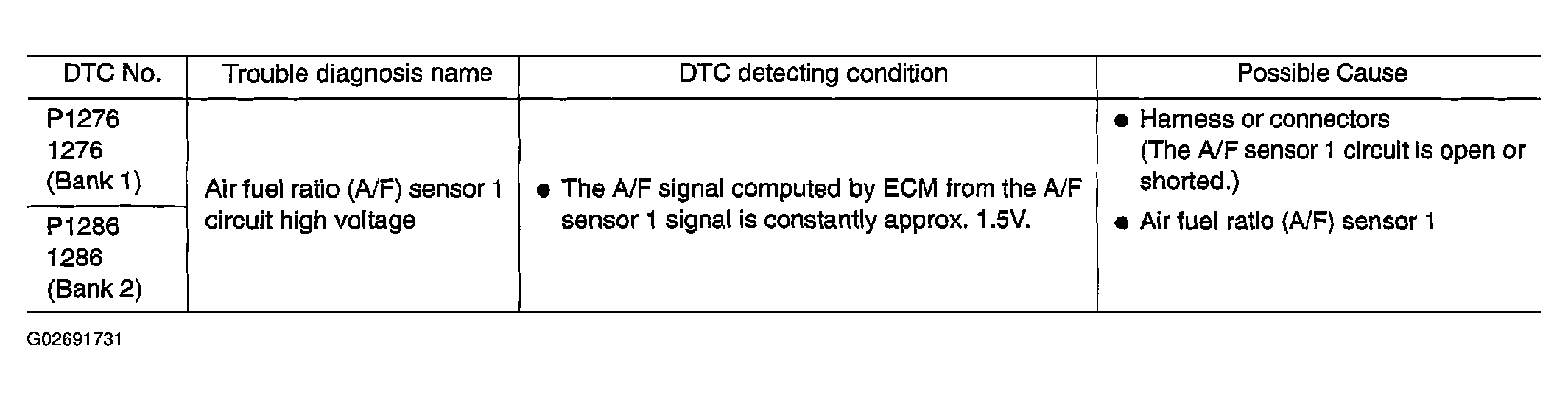

Fig 1: DTC P1276, P1286 A/F Sensor 1 - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
