CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

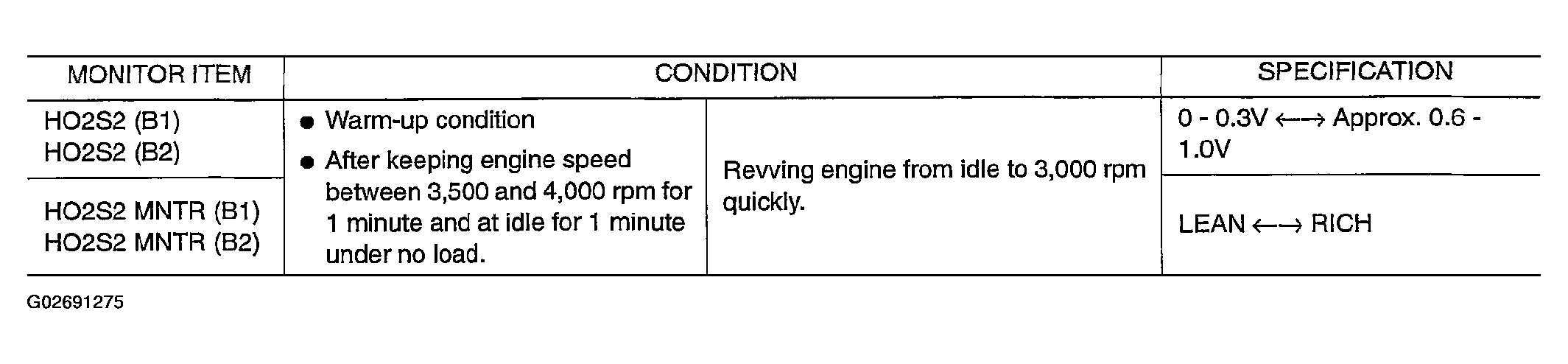

Fig 1: DTC P0138, P0158 HO2S2 - Specification Data

G02691275

Courtesy of NISSAN MOTOR CO., U.S.A.
