Removal and Installation: Notes

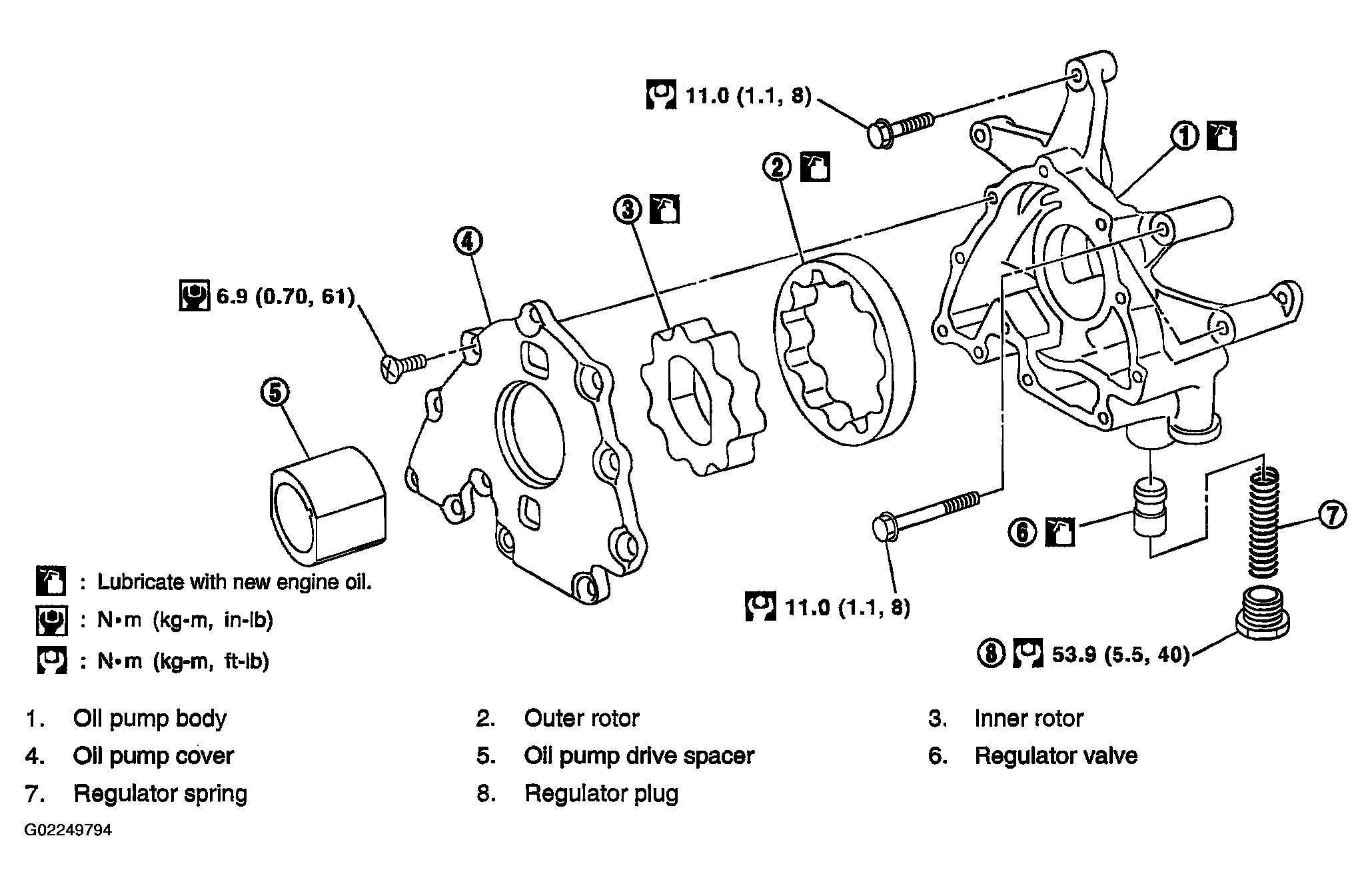

Fig 1: Exploded View Of Oil Pump
G02249794Courtesy of NISSAN MOTOR CO., U.S.A.
