Notes
Removal and Installation: Notes

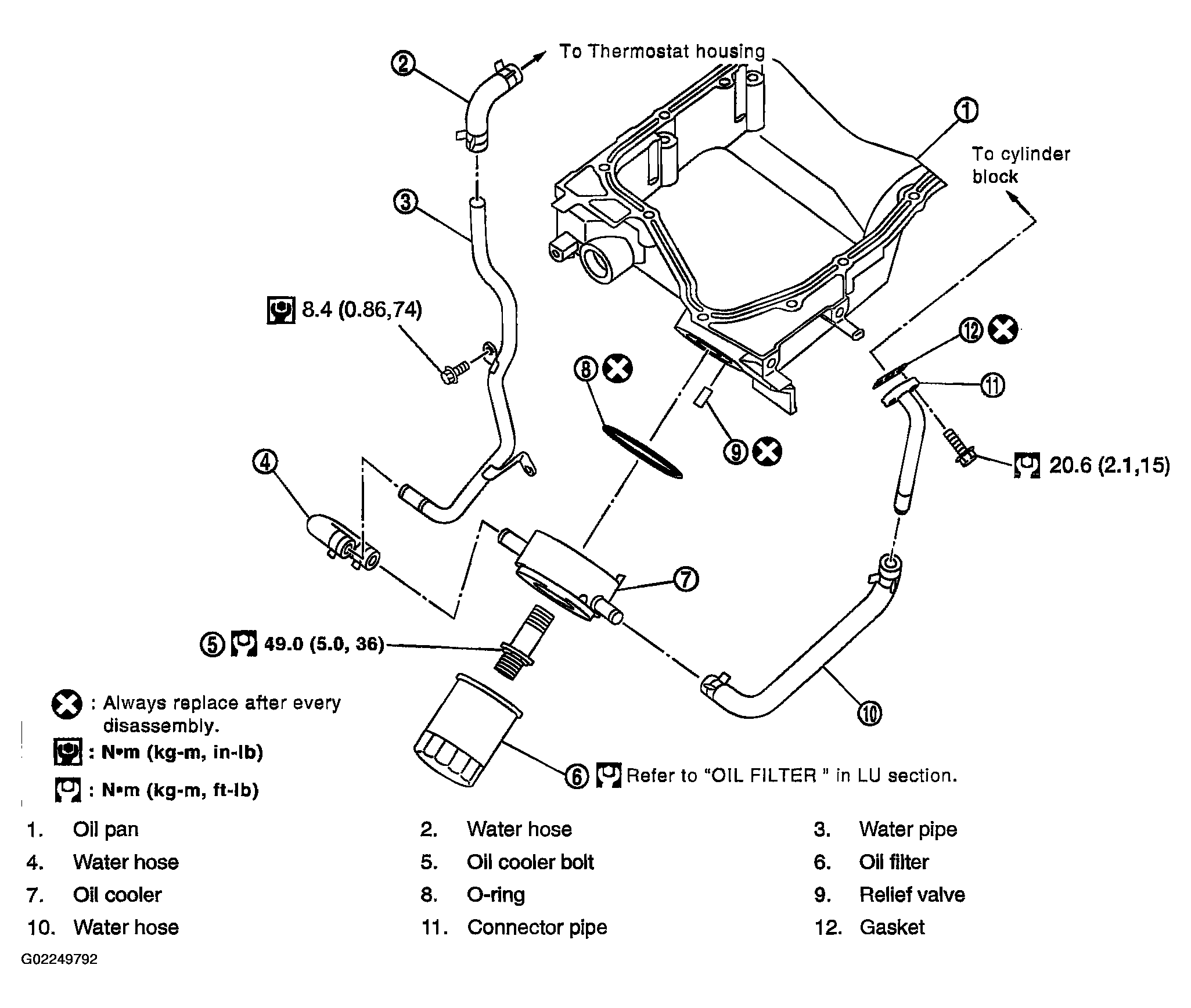

Fig 1: Exploded View Of Oil Cooler
Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING:
Be careful not to burn yourself, as the engine oil and engine coolant are hot.
Courtesy of NISSAN MOTOR CO., U.S.A.
