Home
>>
Infiniti
>>
2004
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Combination Meters
>>
Symptom Chart
Symptom Chart

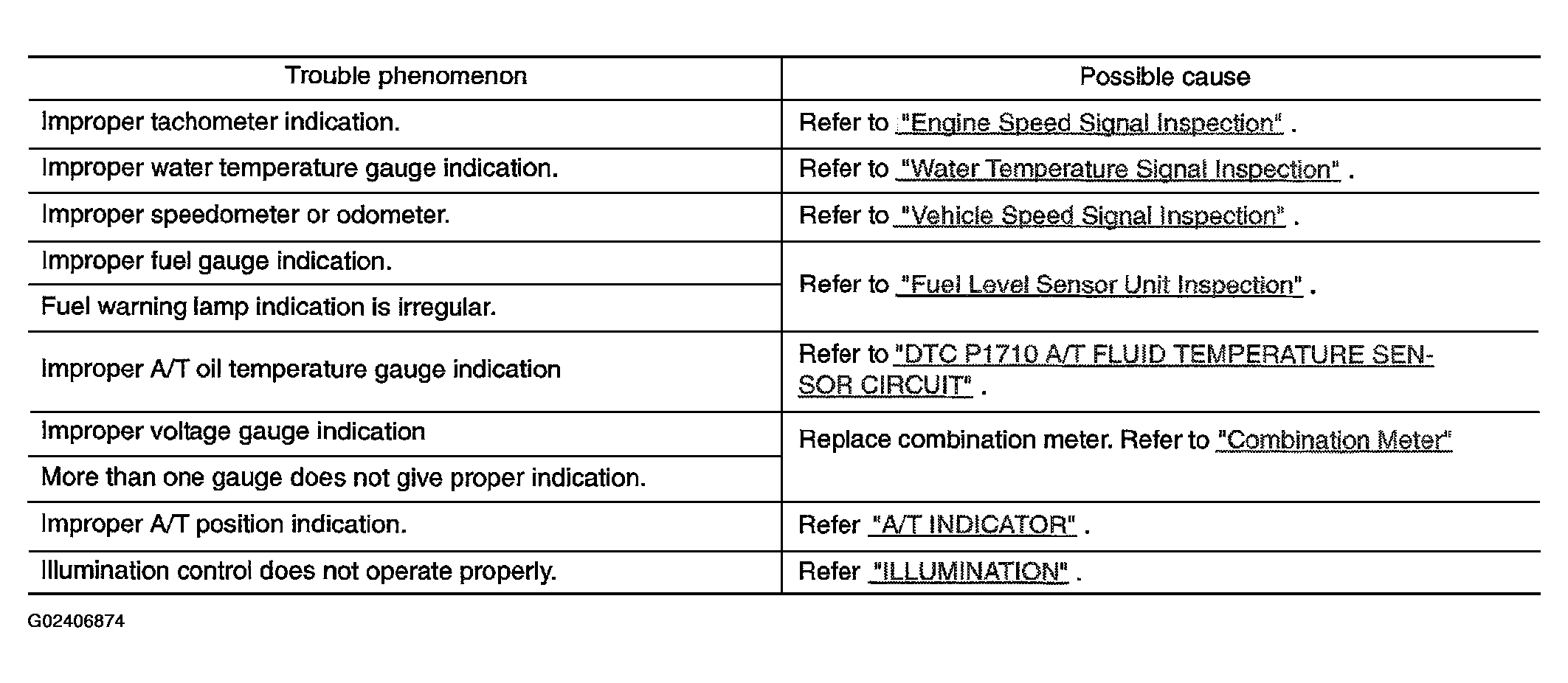

Fig 1: Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
