Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch RH

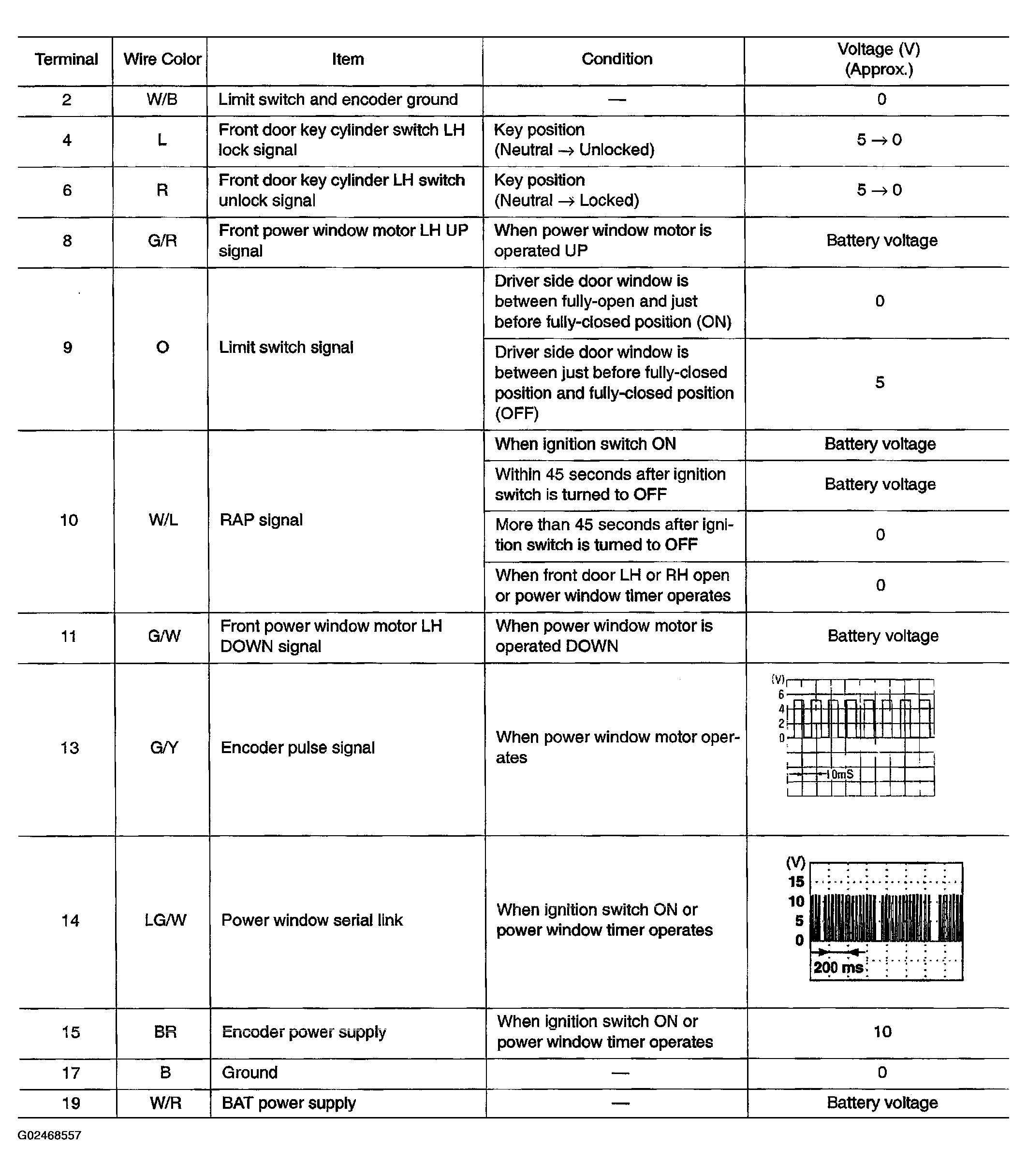

Fig 1: Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch Chart
G02468557Courtesy of NISSAN MOTOR CO., U.S.A.
