Setting Change Function

The settings of the automatic driving positioner system can be changed, using CONSULT-II and the display in the center of the instrument panel.

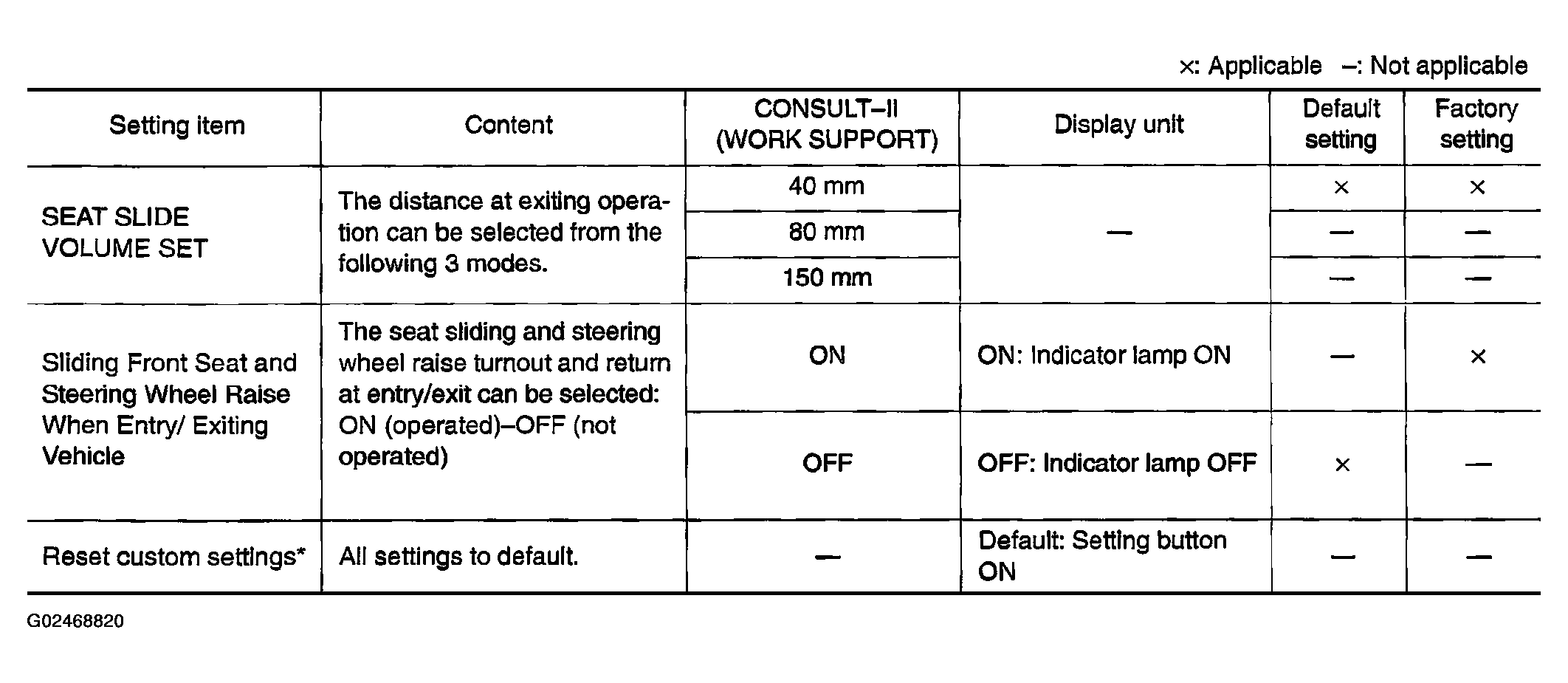

Fig 1: Automatic Driving Positioner Settings

Courtesy of NISSAN MOTOR CO., U.S.A.

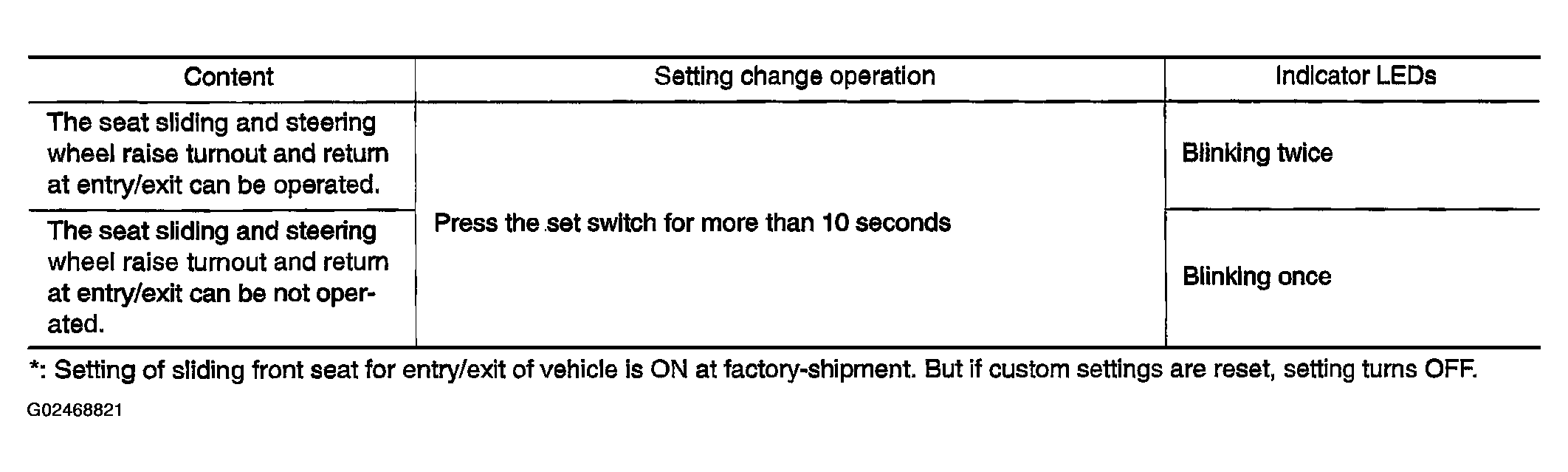

Fig 2: Automatic Driving Positioner Settings (Sliding Front Seat)

Courtesy of NISSAN MOTOR CO., U.S.A.

It is possible to set sliding front seat for entry/exit of vehicle by pressing set switch.

NOTE: After the setting is registered, the new setting is effective, even if the battery is disconnected.
