Navigation Setting

How To Perform Navigation Setting

1. Start the engine.
2. Push "SETTING" button.
3. Select "NAVIGATION".

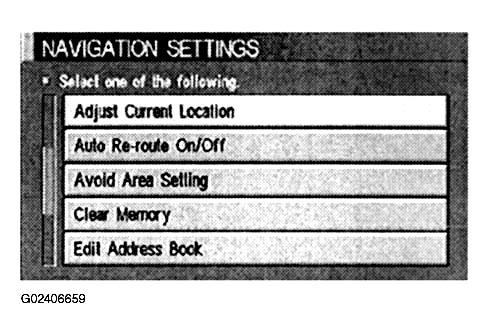

   Fig 1: Identifying Navigation Setting Button

   Courtesy of NISSAN MOTOR CO., U.S.A.
   APPLICATION ITEMS



   Icon	Description	Reference page
   View	Map display mode can be switched.	AV-70
   Heading	Heading of the map display can be customized for either north heading or the actual driving direction of the vehicle.	AV-71
   Nearby Display Icons(1)	Icons of facilities can be displayed. Facilities to be displayed can be selected from the variety selections.	AV-71
   Save Current Location(1)	Current vehicle location can be registered in Address Book.	AV-71
   Adjust Current Location(1)	Current location of position marker can be adjusted. Direction of position marker also can be calibrated when heading direction of the vehicle on the display is not matched with the actual direction.	AV-71
   Auto Re-route On/Off(1)	ON/OFF of Auto Re-route can be switched.	AV-72
   Avoid Area Setting(1)	A particular area can be avoided when routing.	AV-72
   Clear Memory(1)	Address Book, Previous destination or Avoid area can be deleted.	AV-72
   Edit Address Book(1)	Address Book can be edited.	AV-78
   GPS Information(1)	The GPS data includes longitude, latitude and altitude (distance above sea level) of the present vehicle position, and current date and time for the area in which the vehicle is being driven. Also indicated are the GPS reception conditions and the GPS satellite position.	AV-73
   Quick Stop Customer Setting(1)	One facility of your selection can be added to your Quick Stop.	AV-73
   Set Average Speed for Estimated Journey Time(1)	Average vehicle speed can be set to calibrate estimated journey time for the destination.	AV-73
   Tracking On/Off(1)	Tracking to the present vehicle position can be displayed.	AV-74
   (1) Not displayed in Easy Mode.
