Navigation System
>>
System Description
>>
Function Of Center Switch
>>
Display with Pushed "DEST" button
Display with Pushed "DEST" button
Easy Mode ("Short Menus" ON)

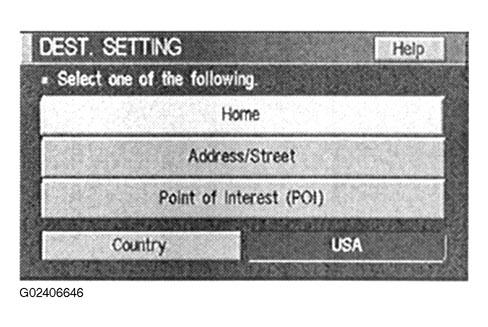

Fig 1: Display Easy Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Expert Mode ("Short Menus" OFF)

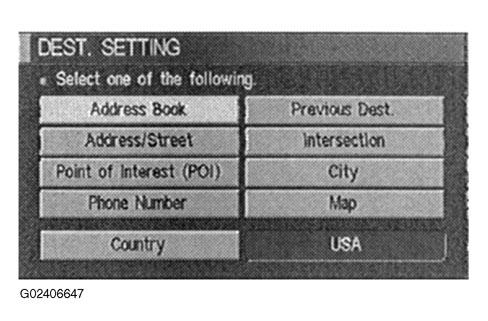

Fig 2: Display Expert Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
The function of each icon is as follows:

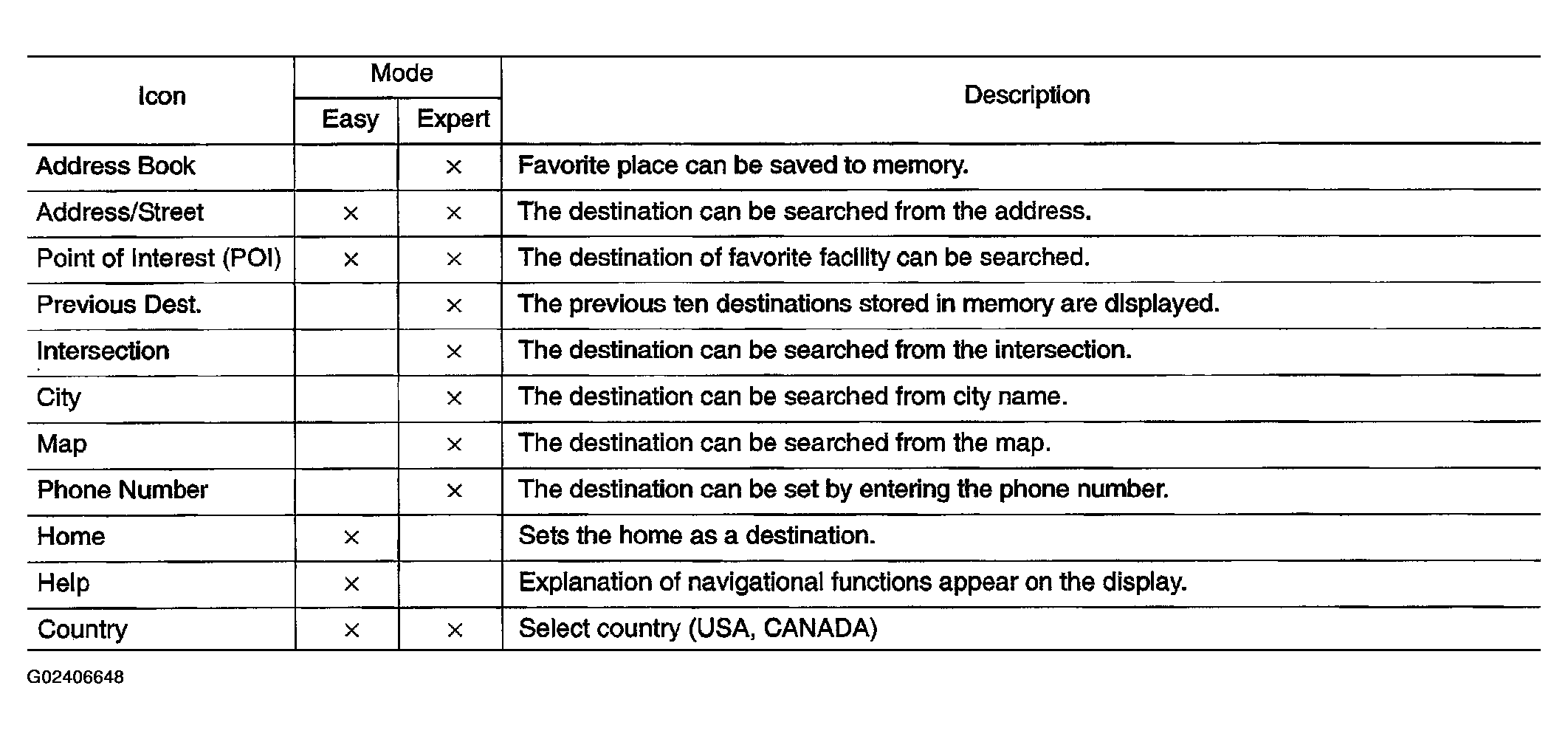

Fig 3: Each Icon Mode Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
