Rear Power Vent Window Switch Circuit Check

1. Turn ignition switch OFF.
2. Disconnect rear power vent window switch.
3. Check continuity between rear power vent window switch terminals 1, 3 and 4.

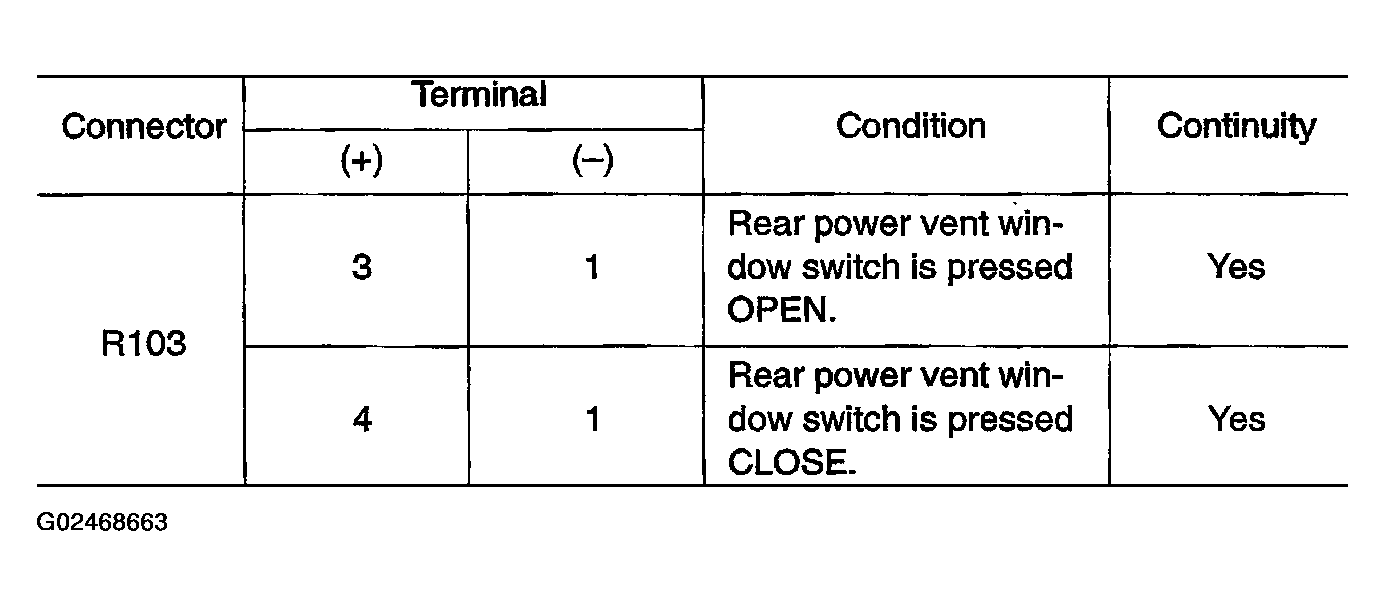

   Fig 1: Connector Terminal Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 2: Checking Continuity Between Rear Power Vent Window Switch Terminals 1, 3 And 4

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Replace rear power vent window switch.

Check continuity between rear power vent window switch connector R103 terminal 1 and ground.

Fig 3: Checking Continuity Between Rear Power Vent Window Switch And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. 1 (B) - Ground: Continuity should exist.

OK or NG

1. OK: Rear power vent window switch circuit harness OK.
2. NG: Repair or replace harness.
