Remote Keyless Entry System: Schematic

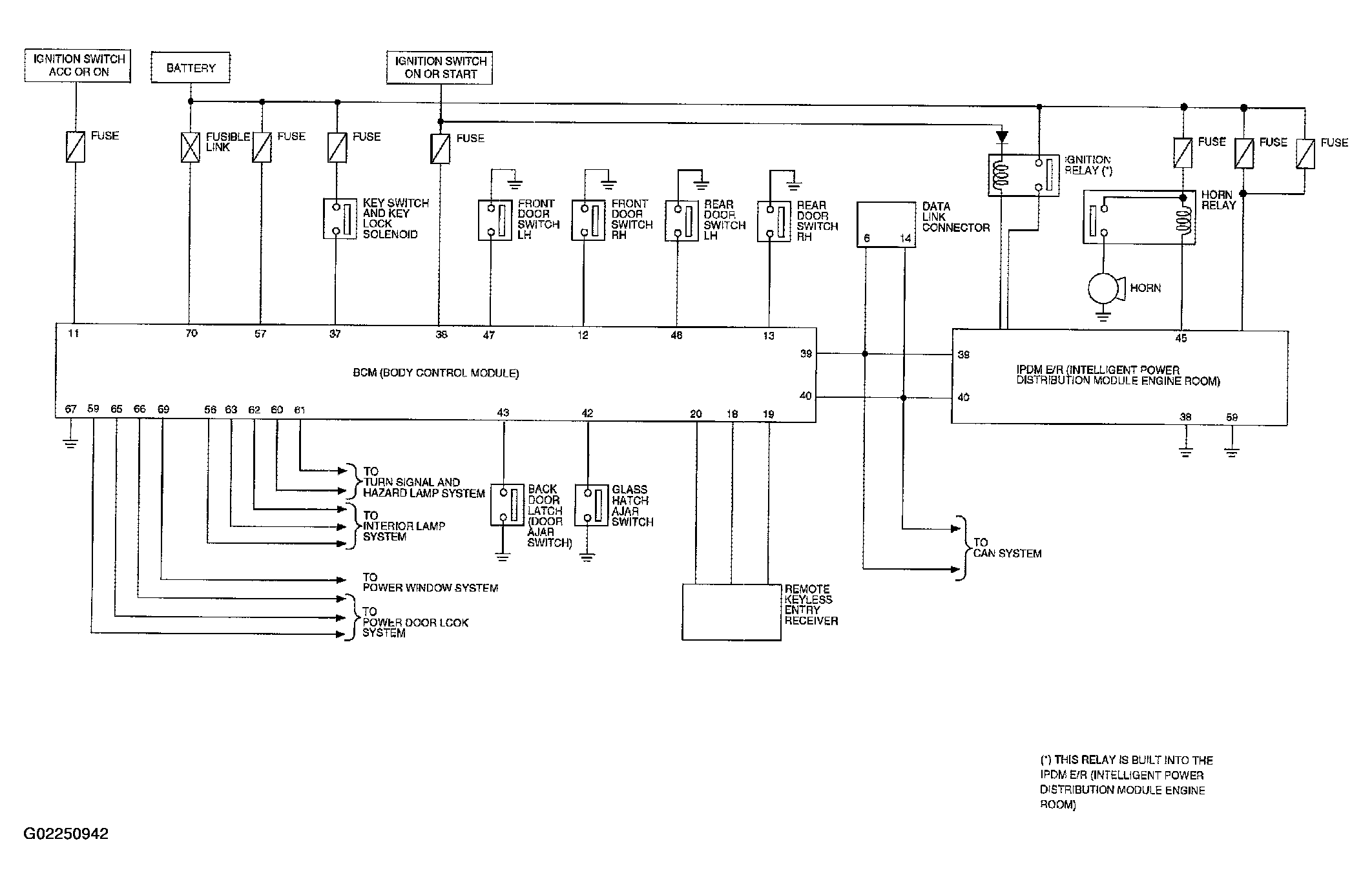

Fig 1: Remote Keyless Entry System Circuit Diagram

G02250942

Courtesy of NISSAN MOTOR CO., U.S.A.
