Steering Outer Socket And Inner Socket

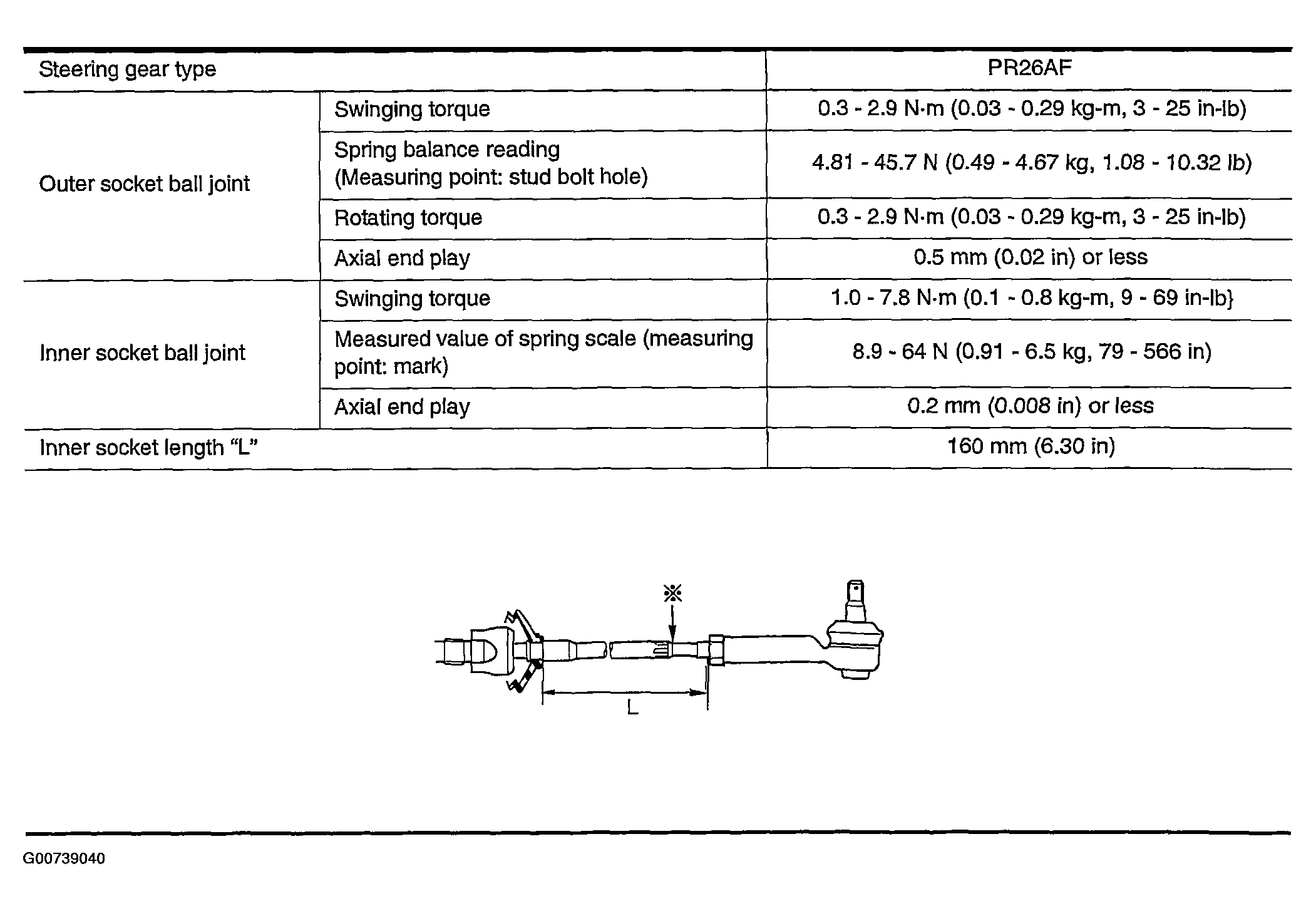

Fig 1: Steering Outer Socket & Inner Socket Specifications

G00739040

Courtesy of NISSAN MOTOR CO., U.S.A.
