System - Engine Mechanical & Other

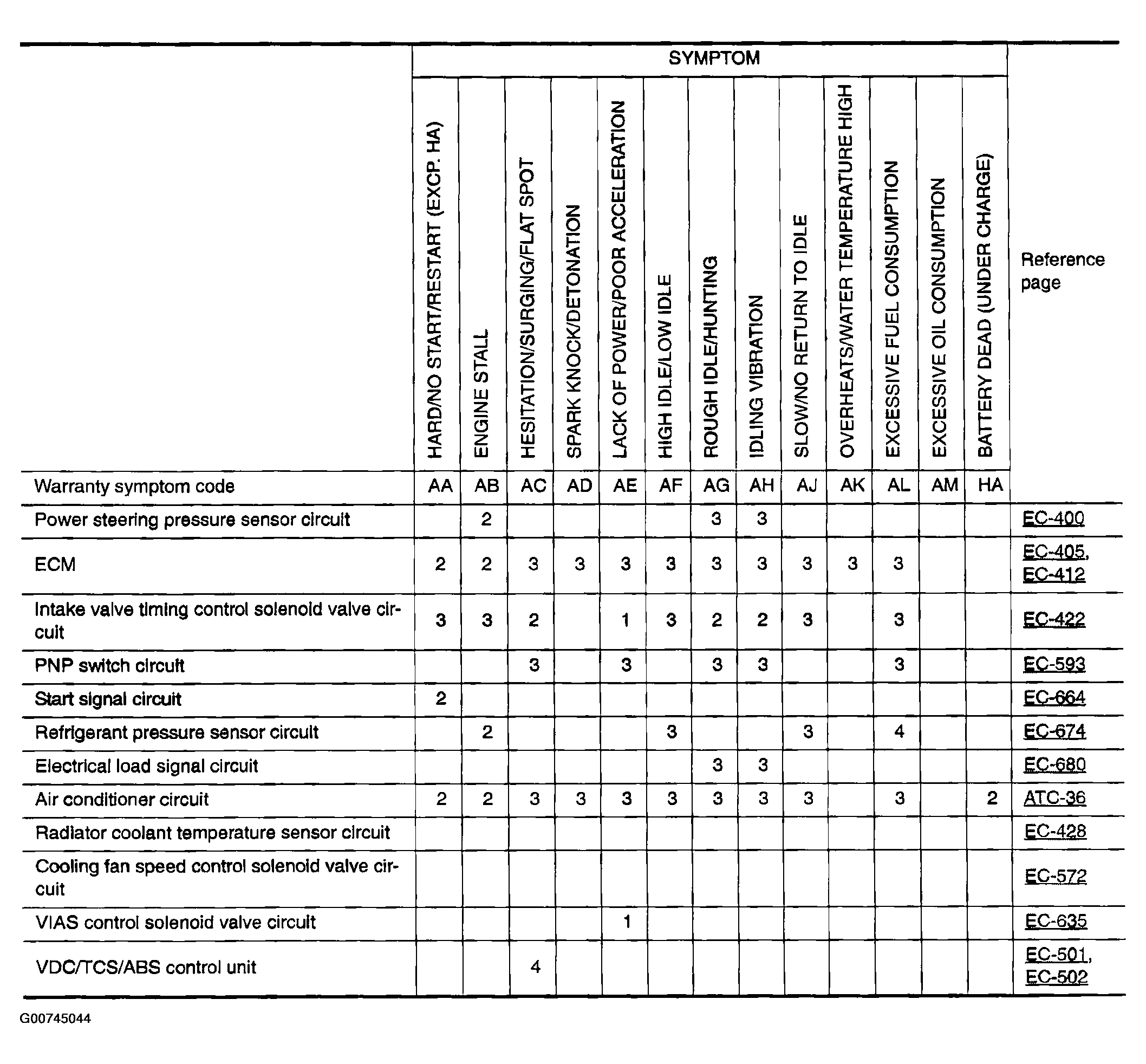

Fig 1: System - Engine Mechanical & Other (1 Of 2)
G00745044Courtesy of NISSAN MOTOR CO., U.S.A.

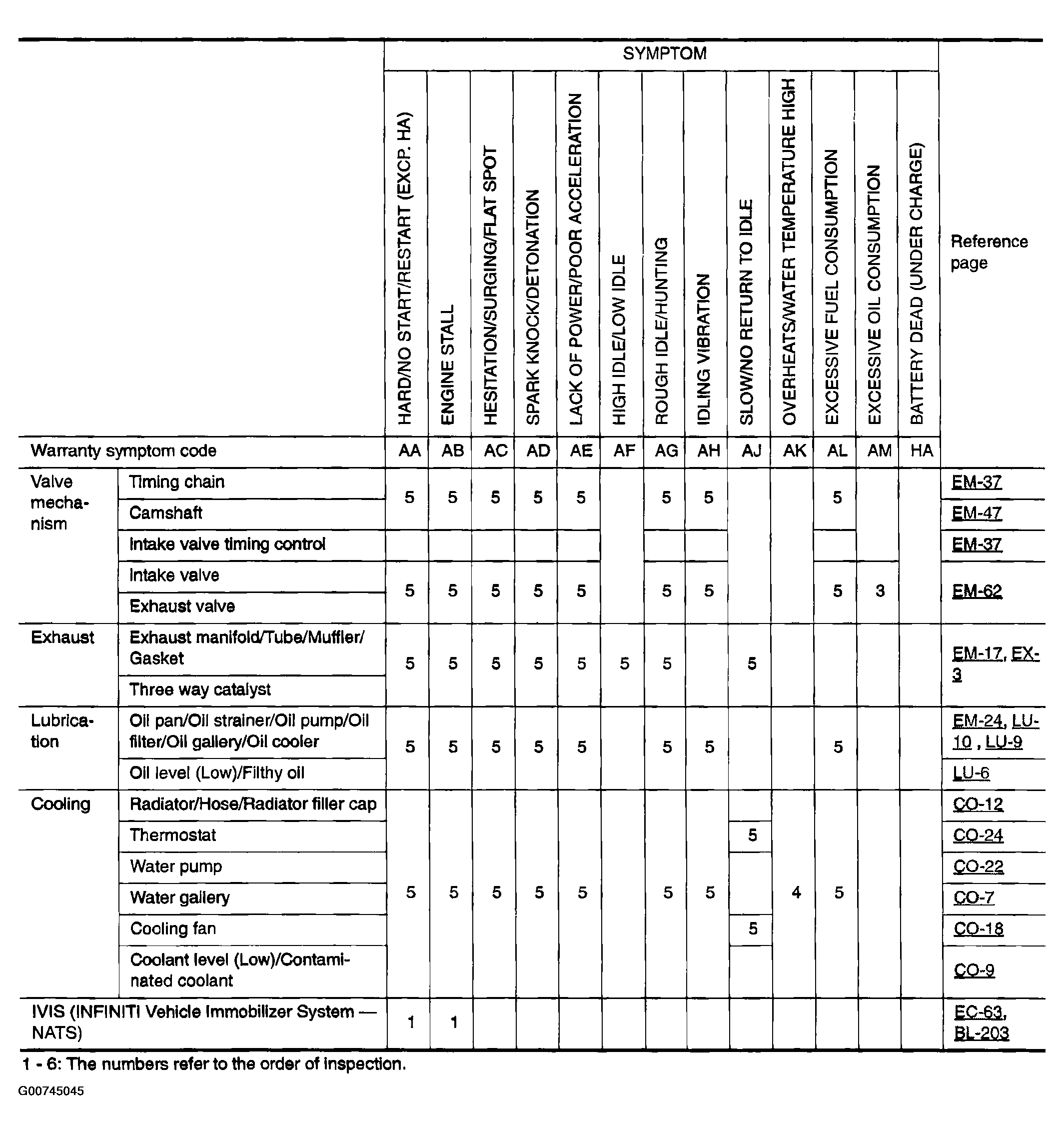

Fig 2: System - Engine Mechanical & Other (2 Of 2)
G00745045Courtesy of NISSAN MOTOR CO., U.S.A.
