Fail-Safe Mode

ECM enters fail-safe mode when the malfunction A is detected.

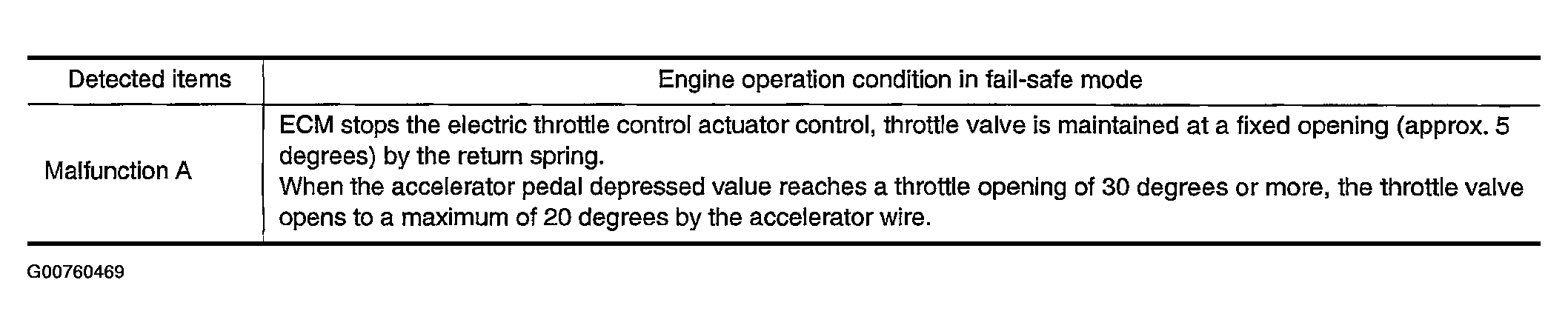

Fig 1: FAIL-SAFE MODE

G00760469

Courtesy of NISSAN MOTOR CO., U.S.A.
