Overall Inspection Sequence

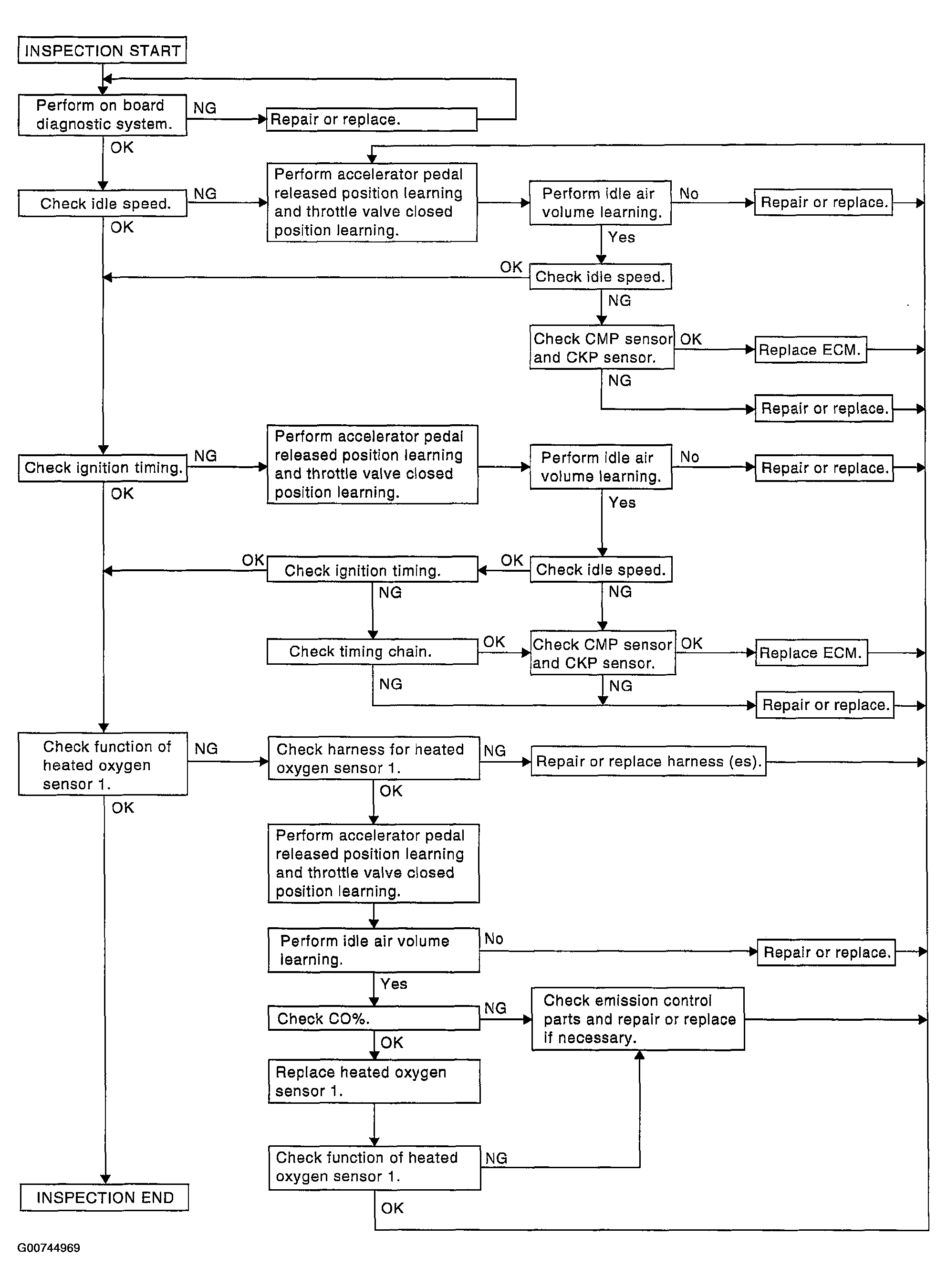

Fig 1: Overall Inspection Sequence
G00744969Courtesy of NISSAN MOTOR CO., U.S.A.
