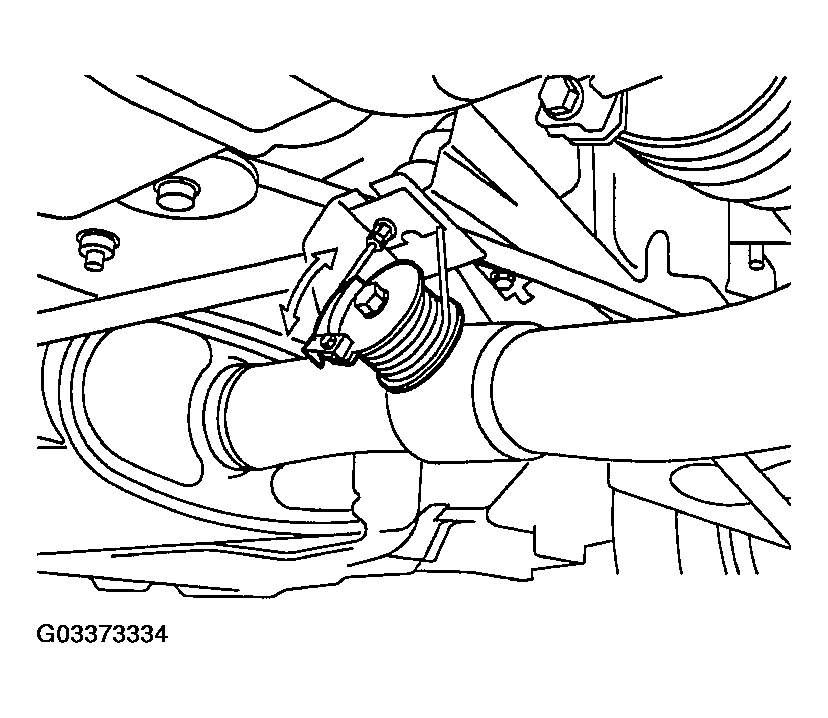

Exhaust Control Valve
Check operation of valve and actuator by revving engine.
EXHAUST CONTROL VALVE
| Condition |
Exhaust control valve |
| Accelerator pedal opening |
Engine rpm |
| Below half (no-load) |
Above approximate 4830 rpm |
Open |
| Below approximate 4730 rpm |
Close |
| Over half (loaded) |
- |
Open |
Courtesy of NISSAN MOTOR CO., U.S.A.
