Removal And Installation: Notes

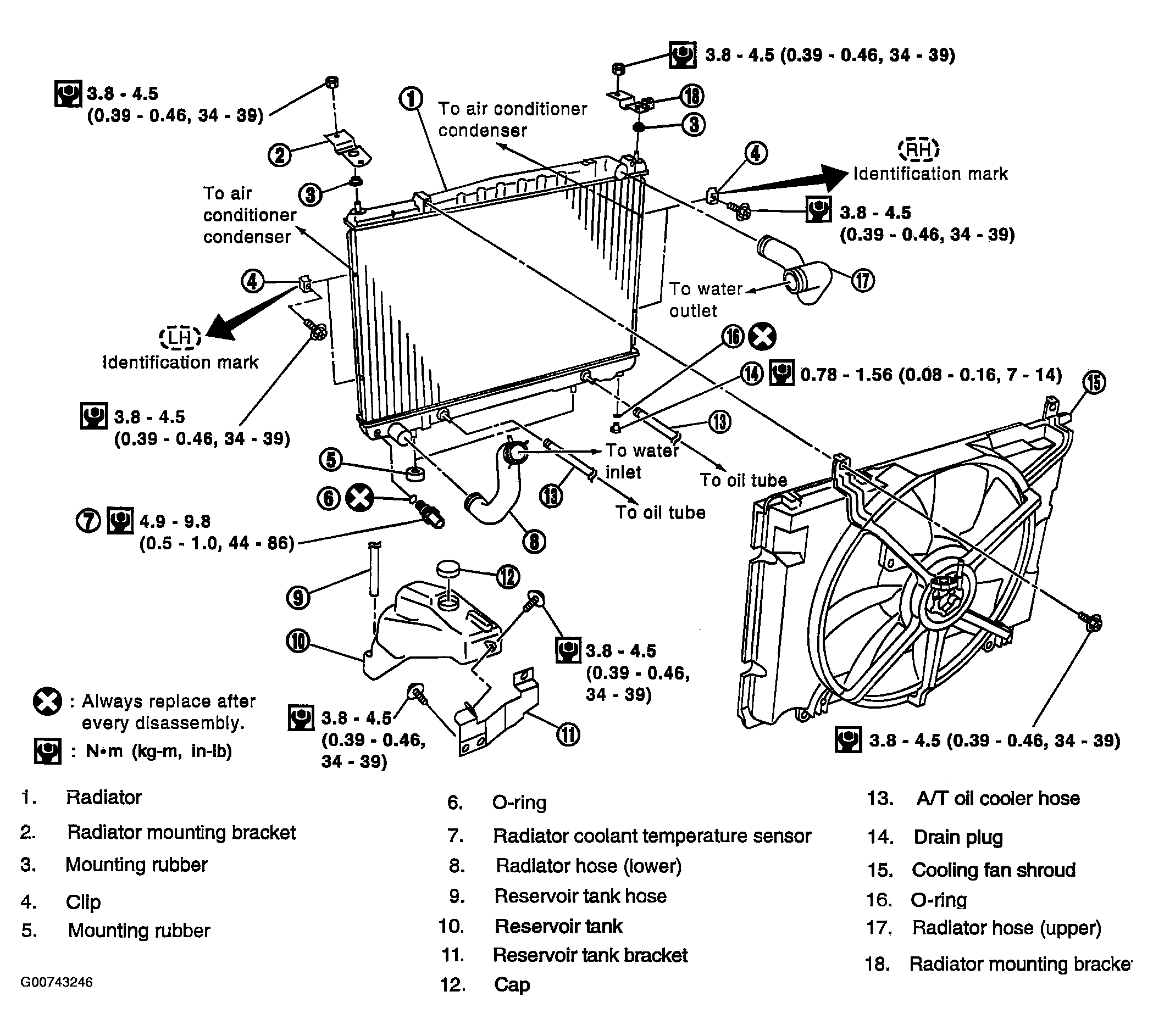

Fig 1: Displaying Radiator Components
G00743246Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Never remove radiator cap when engine is hot. Serious burns could occur from high pressure engine coolant escaping from radiator.
