Driver Information System
>>
Warning Chime
>>
Symptom Chart
Symptom Chart

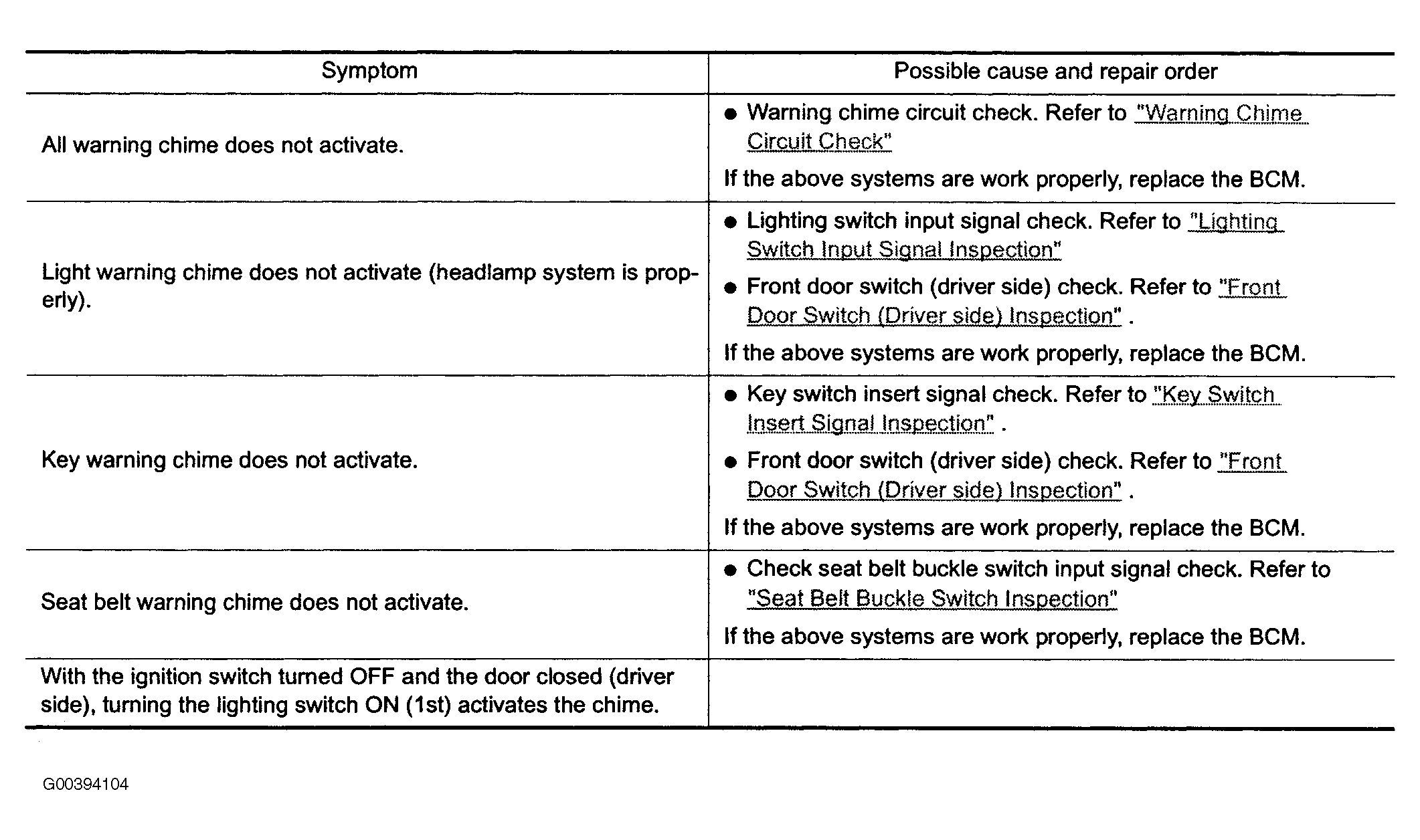

Fig 1: Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
