3. Check Key Switch (Insert)

Check continuity between key switch and key lock solenoid (key switch) connector terminal 3 and 4.

When key is inserted into ignition key cylinder: Continuity should exist.

When key is removed from ignition key cylinder: Continuity should not exist.

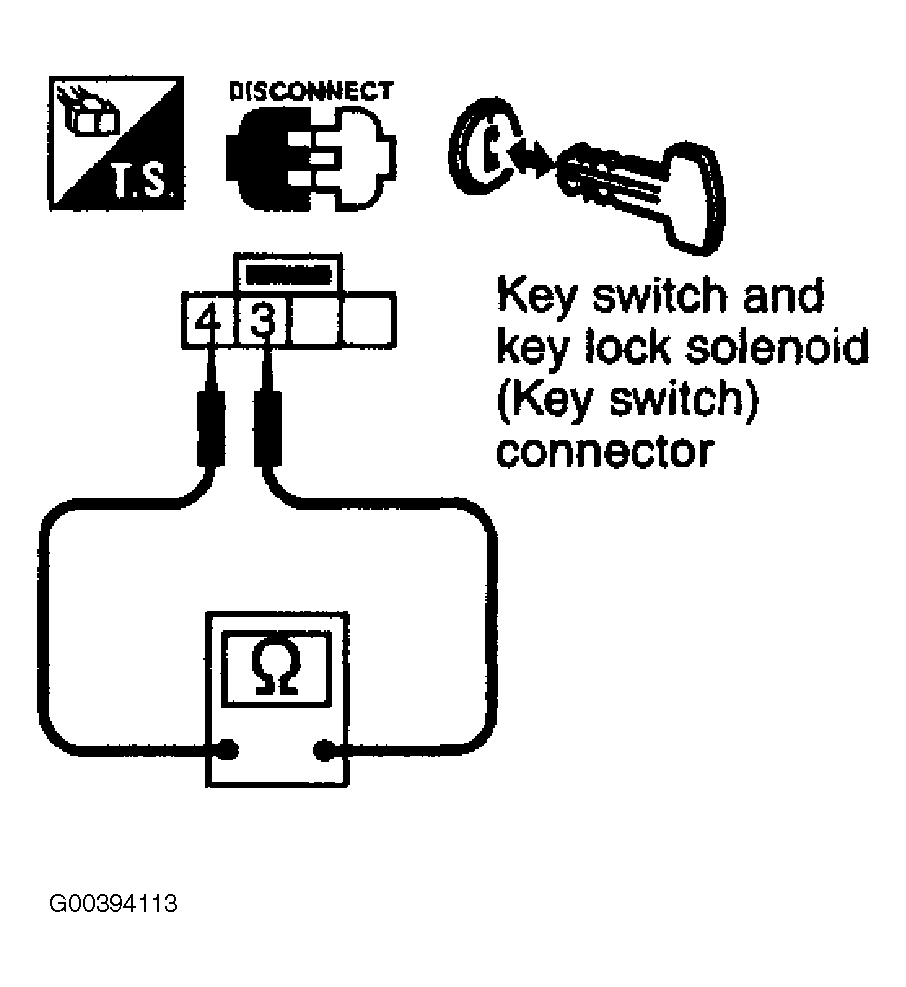

Fig 1: Checking Key Insert Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Inspection end.
2. NG: Replace key switch and key lock solenoid (key switch).
