1. Check Harness

  1. Disconnect connectors of AV control unit and display.
  2. Check continuity between AV control unit harness connector and display.

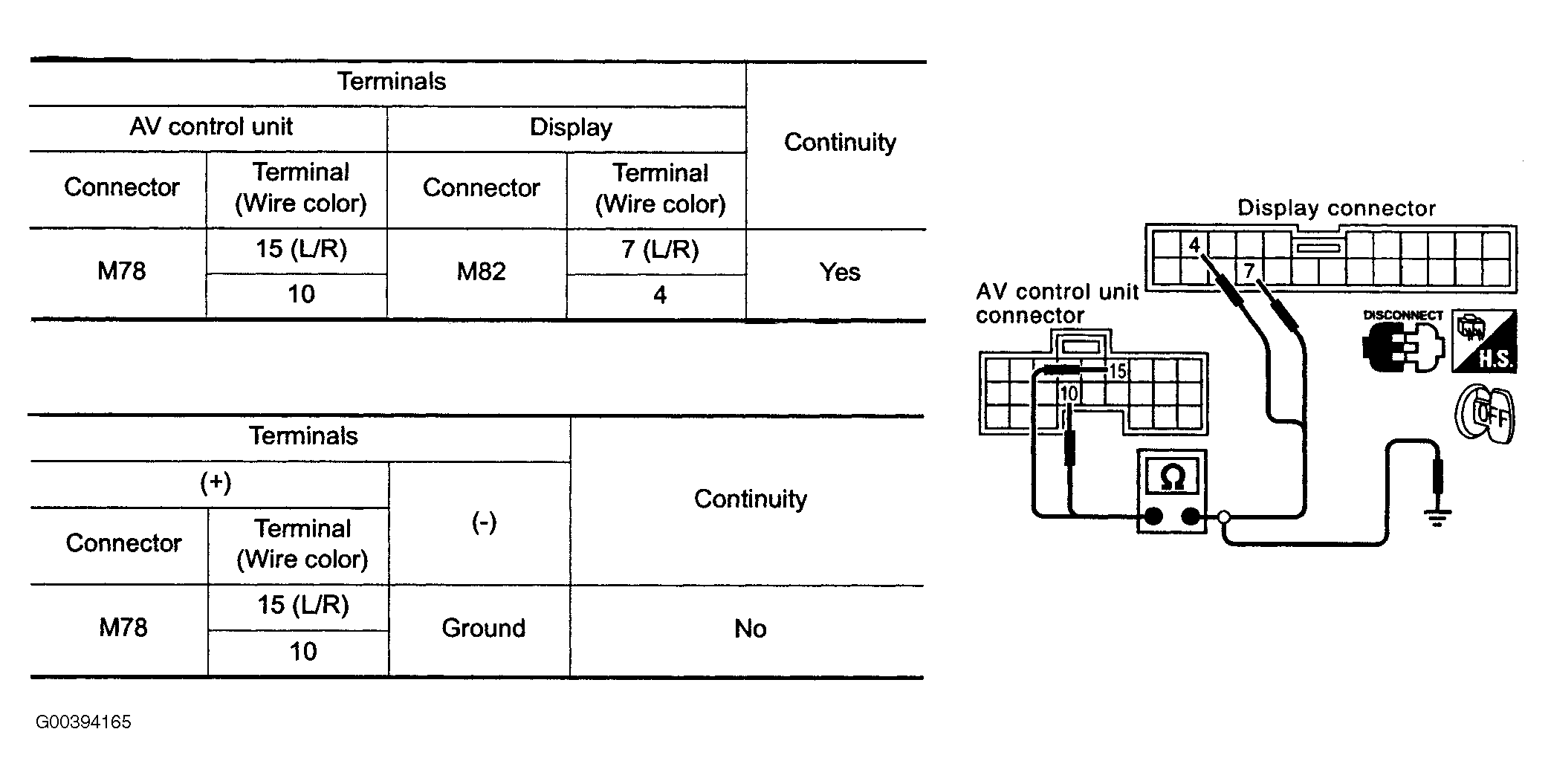

    3. Fig 1: Checking Harness
    G00394165Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check continuity between AV control unit harness connector and ground.

OK or NG

  1. OK: GO TO 2  .
  2. NG: Check connector housings for disconnected or loose terminals. Repair harness or connector.
