Removal And Installation Of Rear View Camera Control Unit: Removal
- Remove the trunk trim. Refer to
TRUNK ROOM TRIM & TRUNK LID FINISHER
.
- Remove the rear parcel shelf finisher. Refer to
REAR PARCEL SHELF FINISHER
.

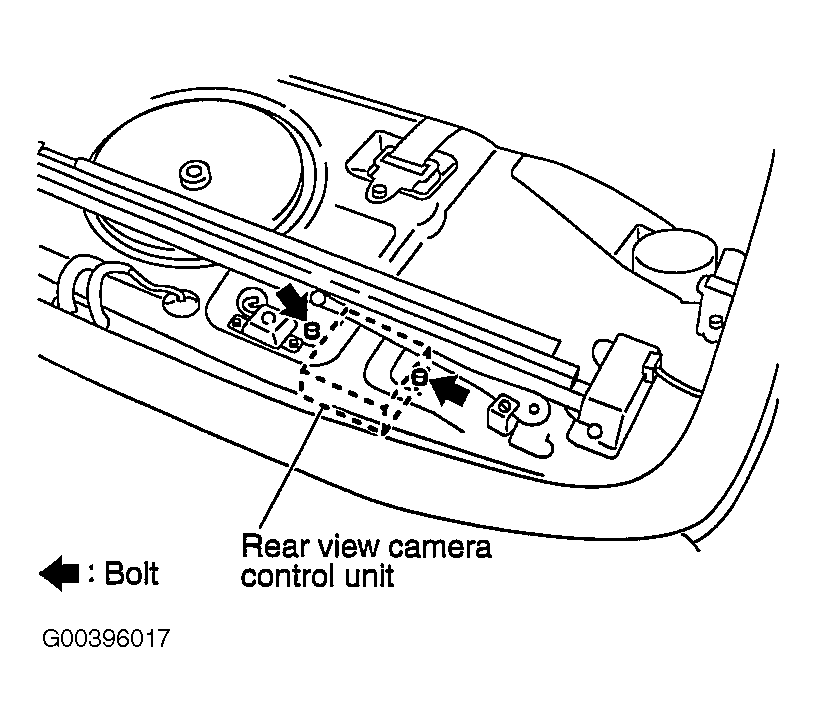

- Remove the bolts (2), and remove rear view camera control unit.
Courtesy of NISSAN MOTOR CO., U.S.A.
