Wiring Diagram - Compass

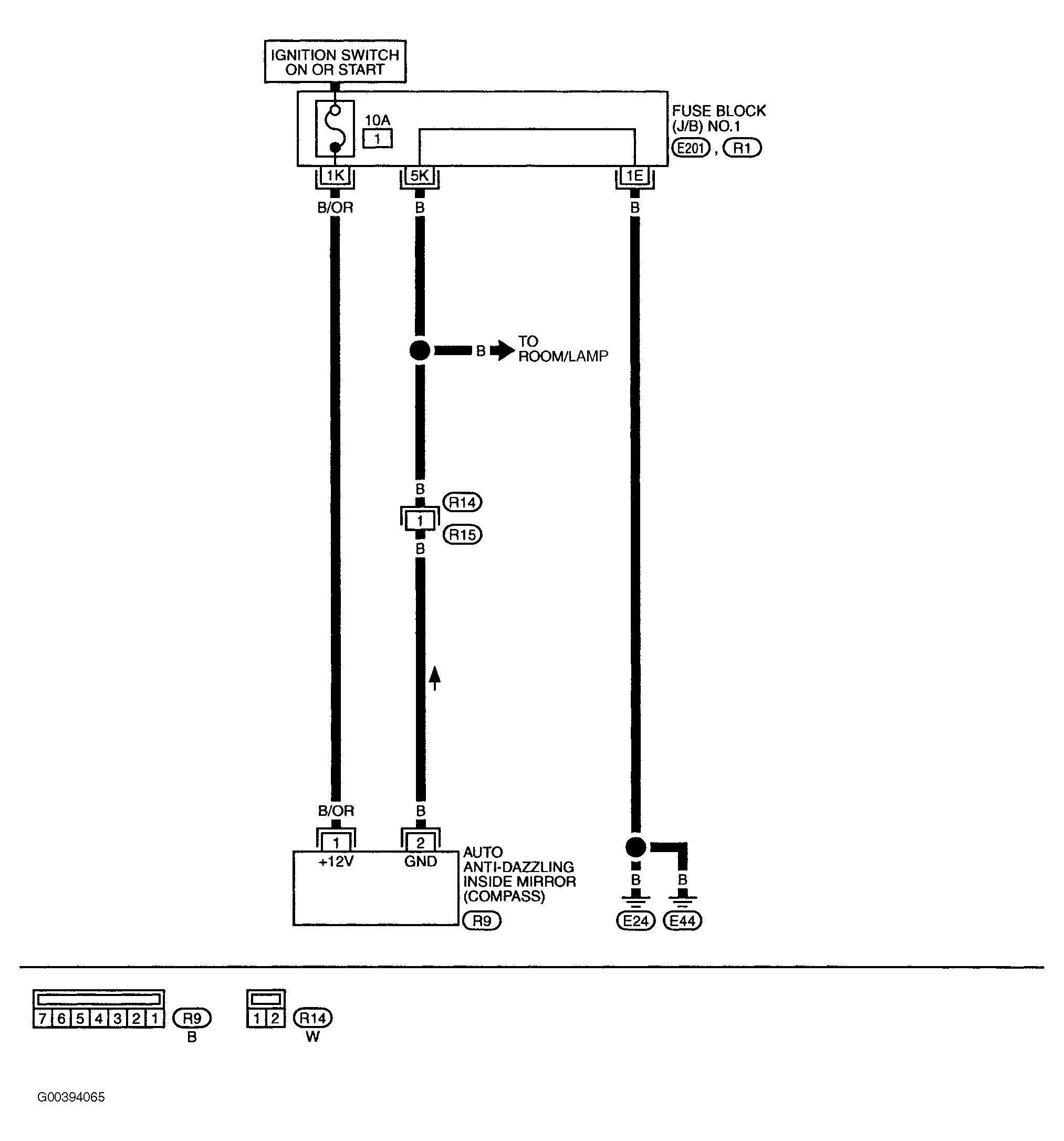

Fig 1: Circuit Diagram Of Compass

G00394065

Courtesy of NISSAN MOTOR CO., U.S.A.
