Engine Compartment Junction & Relay Blocks

NOTE: For engine compartment fuse, fusible link and relay box locations, see Fig 1 .

Component Locations

Fuse block is located at right front of engine compartment. See Fig 2 . For identification of protected circuits, see Fig 14 . For circuit wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
Fuse, fusible link, and relay block is located at right front of engine compartment. For component locations, see Fig 2 and Fig 3 . For identification of protected circuits, see Fig 5 , Fig 6 and Fig 11 . For circuit wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
Fuse, fusible link and relay box is located at right front of engine compartment. For component locations, see Fig 4 . For identification of protected circuits, see Fig 5 -Fig 7 . For circuit wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.

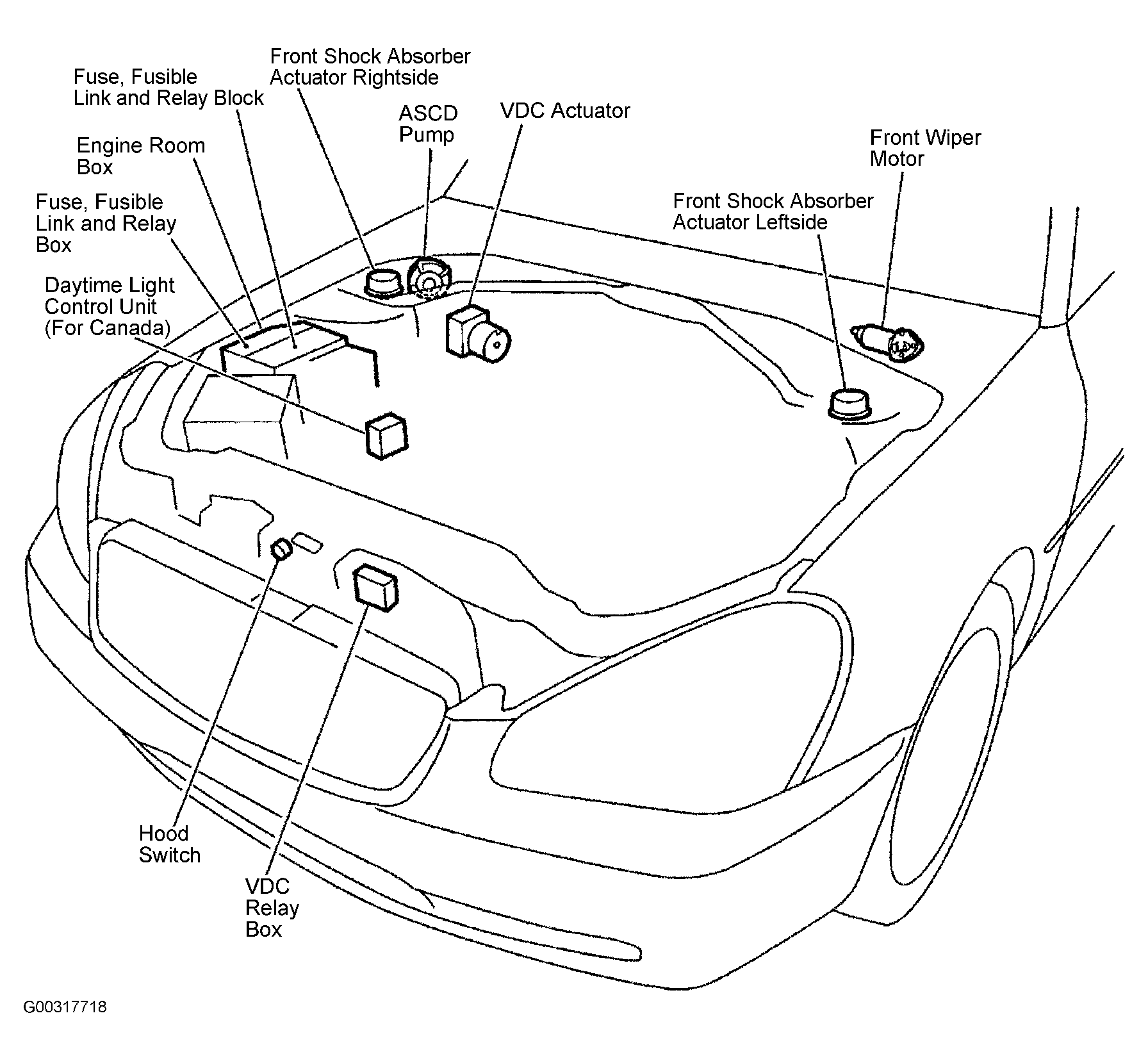

Fig 1: Locating Engine Compartment Fuse, Fusible Link & Relay Boxes

G00317718

Courtesy of NISSAN MOTOR CO., U.S.A.

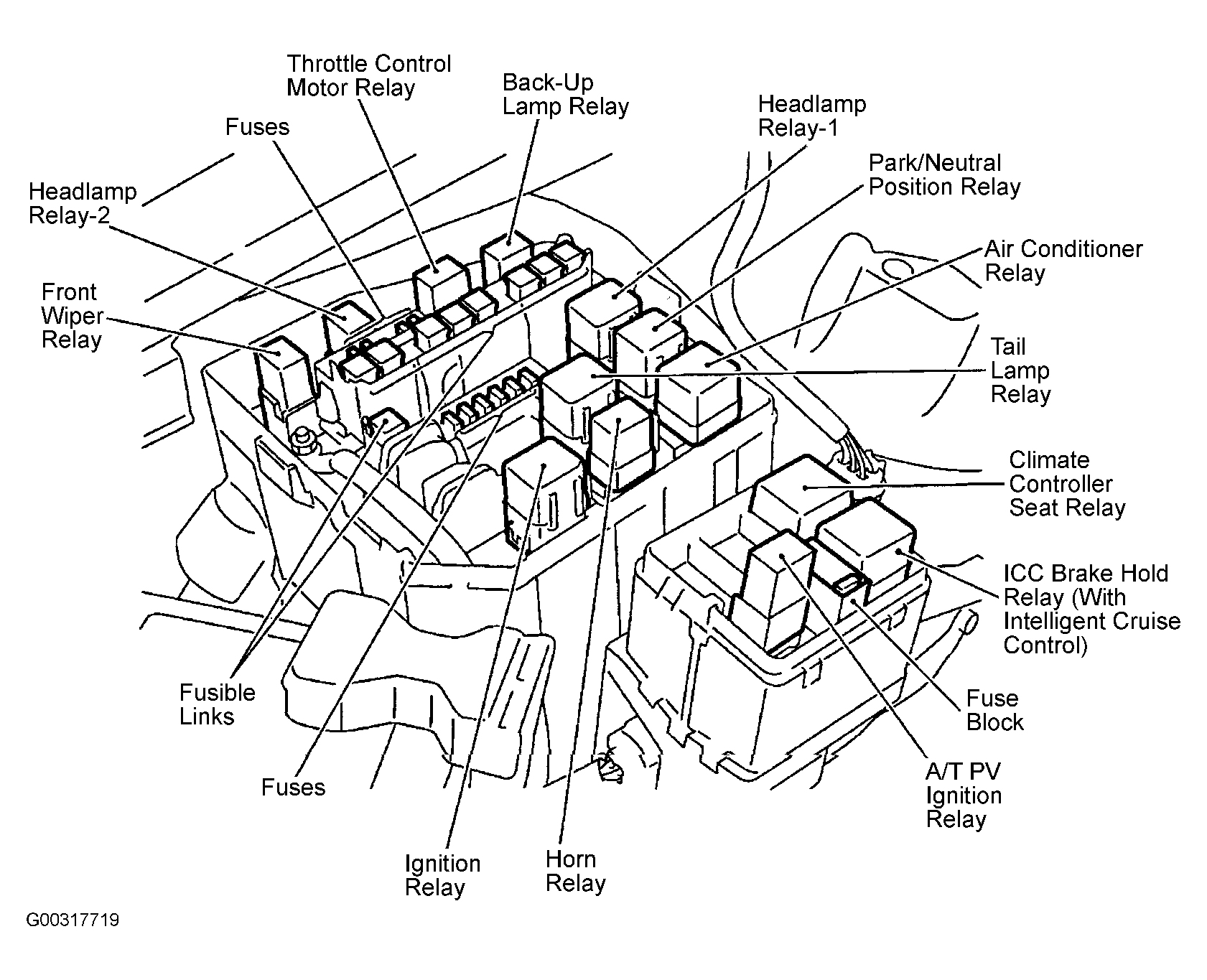

Fig 2: Locating Fuses, Fusible Links & Relays

G00317719

Courtesy of NISSAN MOTOR CO., U.S.A.

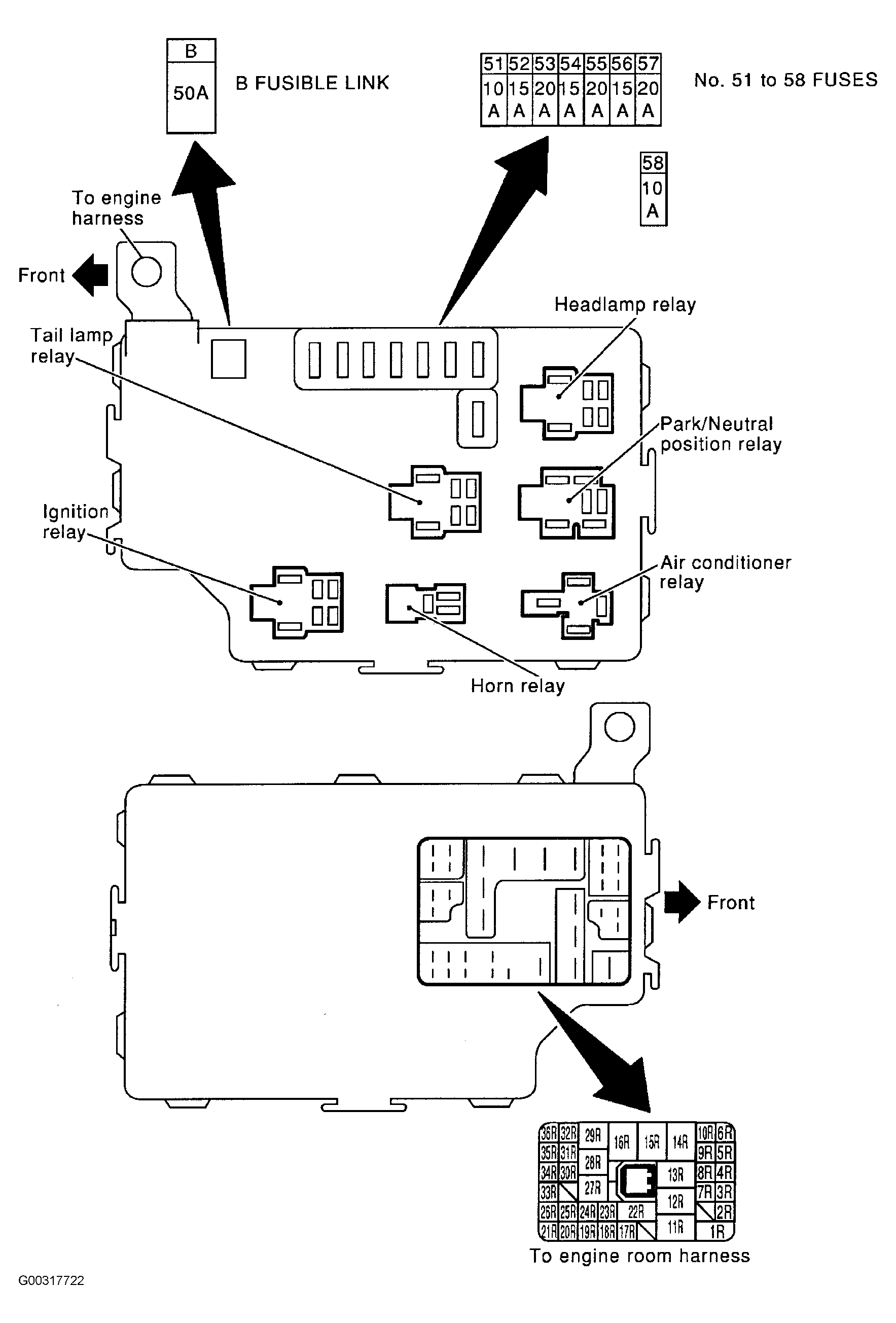

Fig 3: Identifying Engine Compartment Fuse, Fusible Link & Relay Block Fuses & Relays

G00317722

Courtesy of NISSAN MOTOR CO., U.S.A.

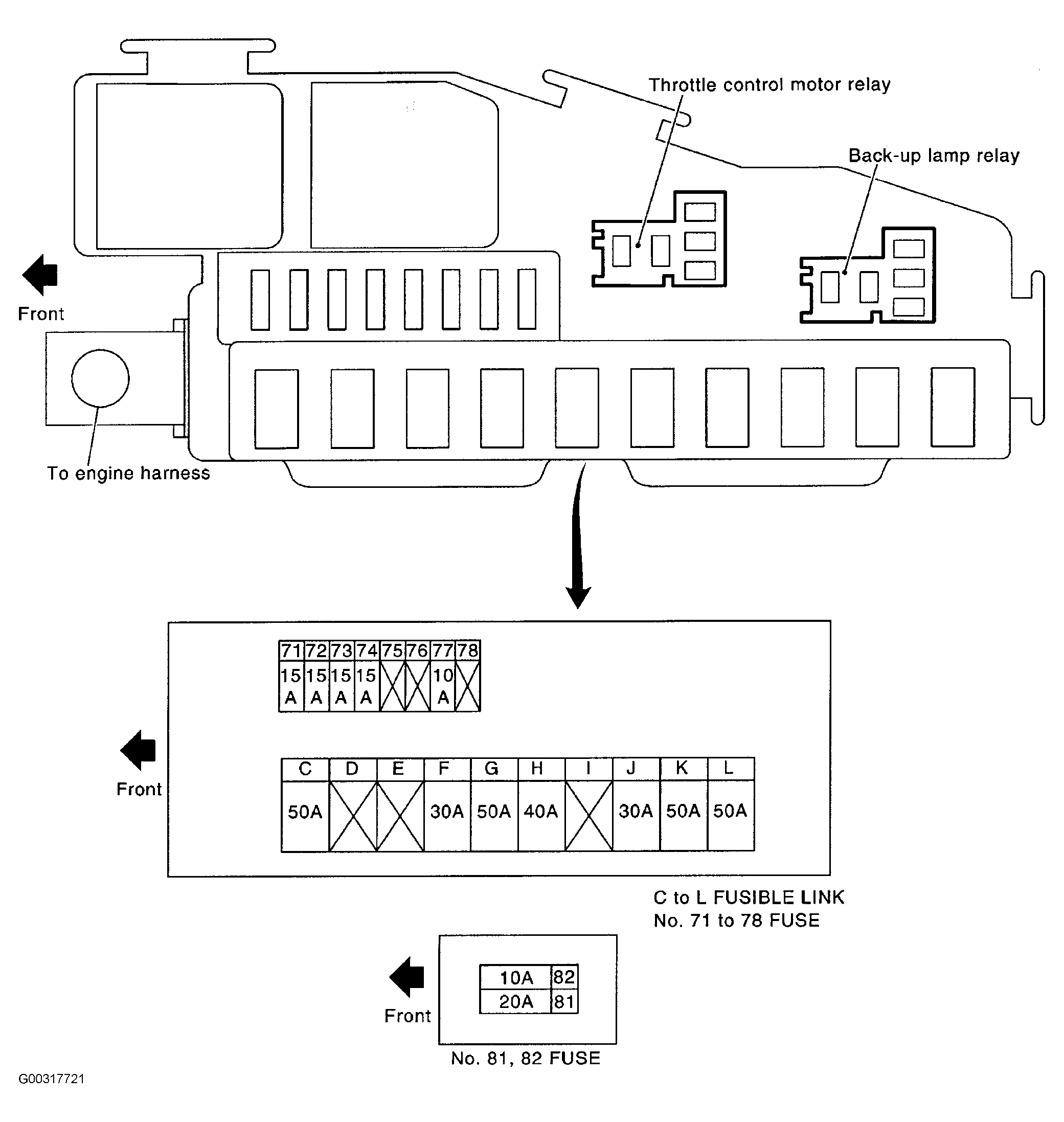

Fig 4: Identifying Engine Compartment Fuse, Fusible Link & Relay Box Fuses & Relays

G00317721

Courtesy of NISSAN MOTOR CO., U.S.A.

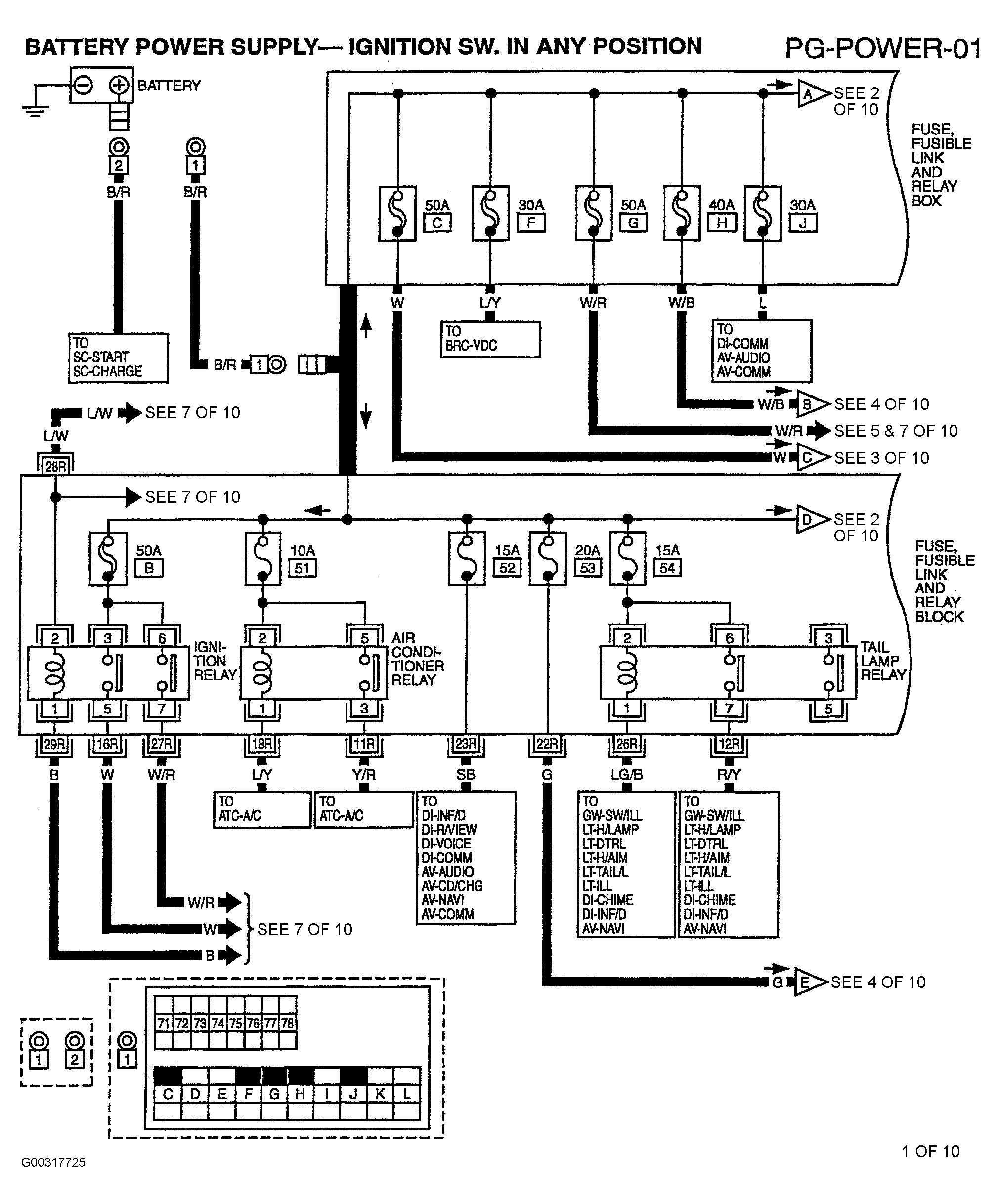

Fig 5: Identifying Circuit Protection Components (1 Of 10)

G00317725

Courtesy of NISSAN MOTOR CO., U.S.A.

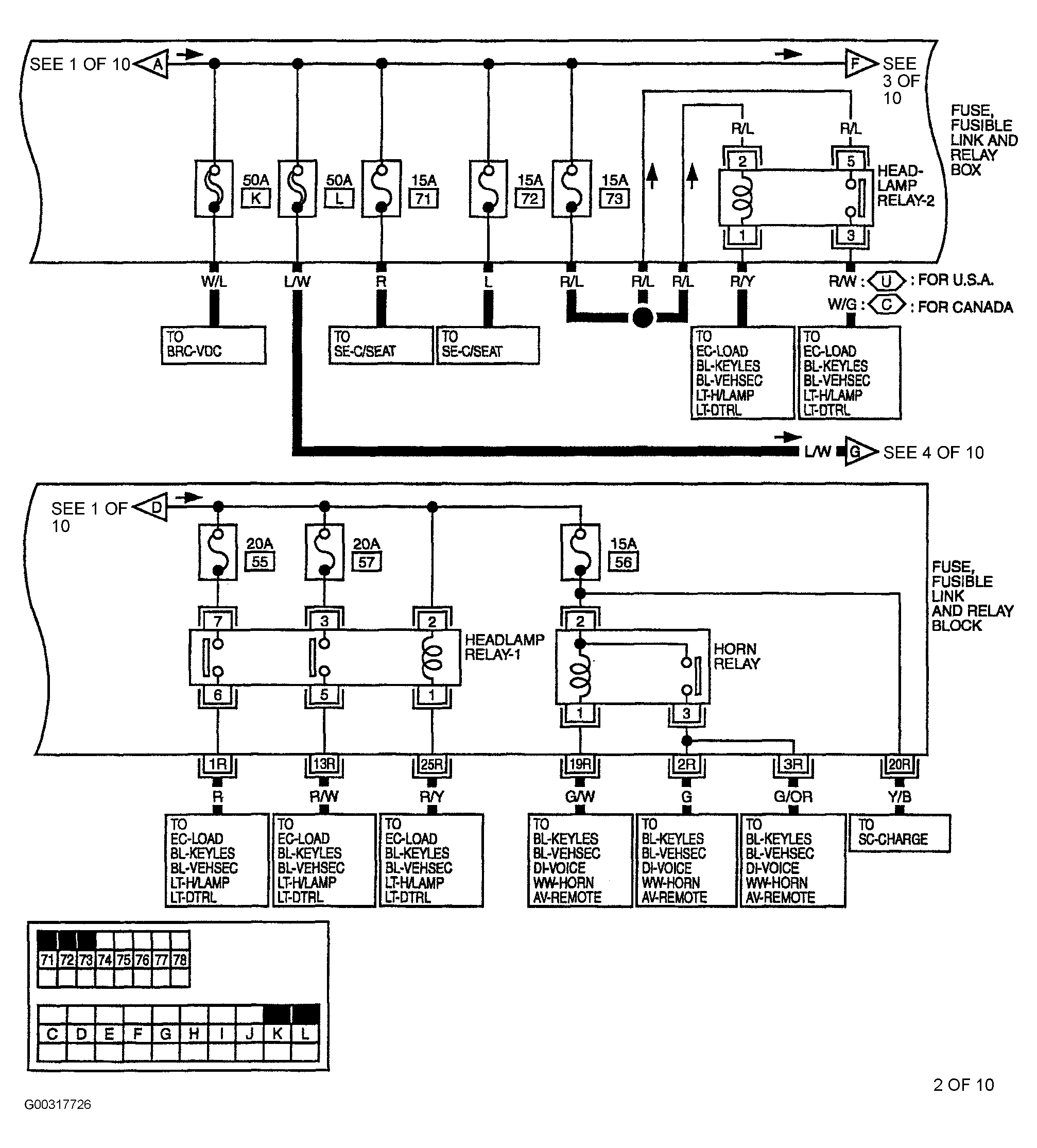

Fig 6: Identifying Circuit Protection Components (2 Of 10)

G00317726

Courtesy of NISSAN MOTOR CO., U.S.A.

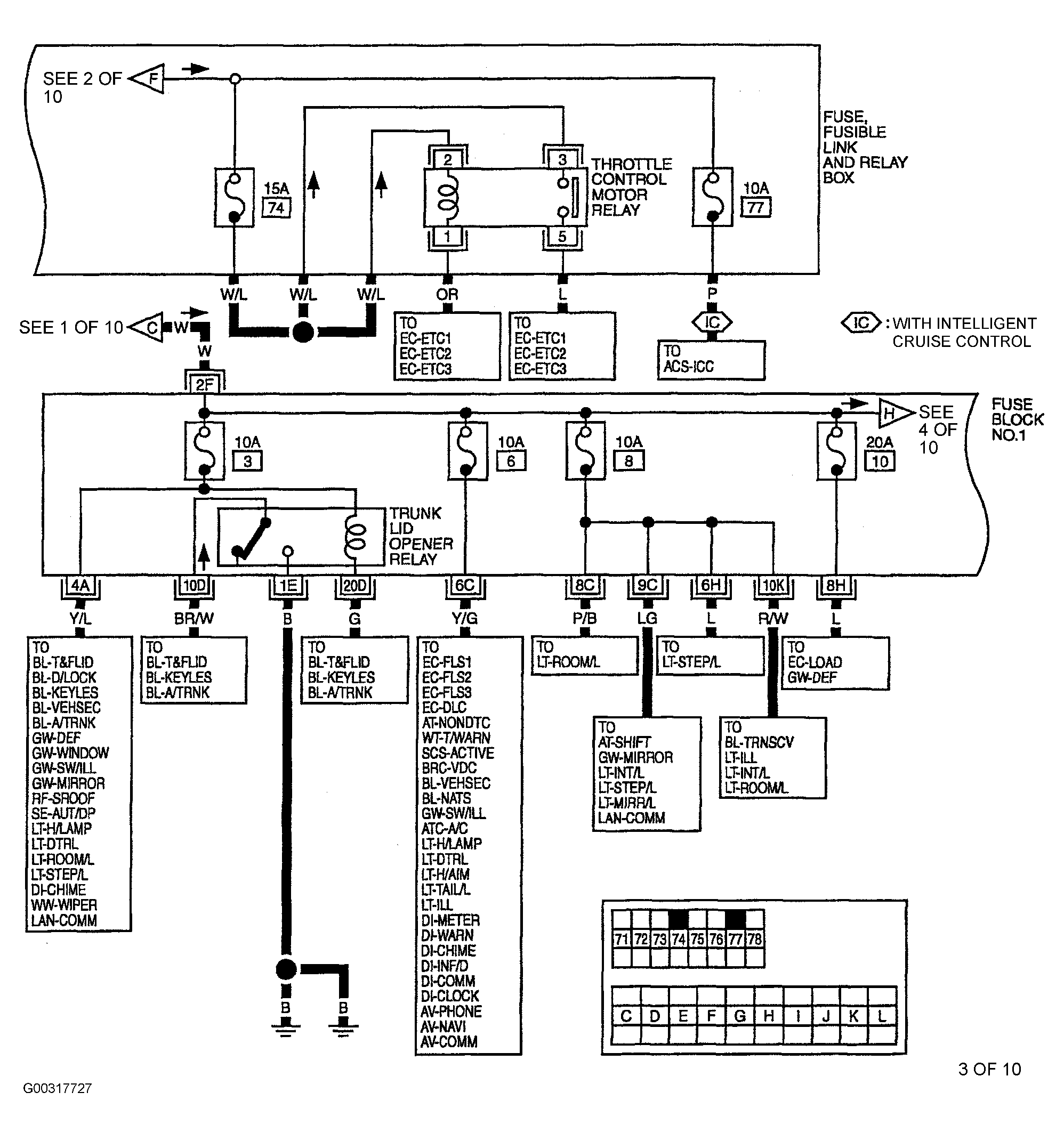

Fig 7: Identifying Circuit Protection Components (3 Of 10)

G00317727

Courtesy of NISSAN MOTOR CO., U.S.A.

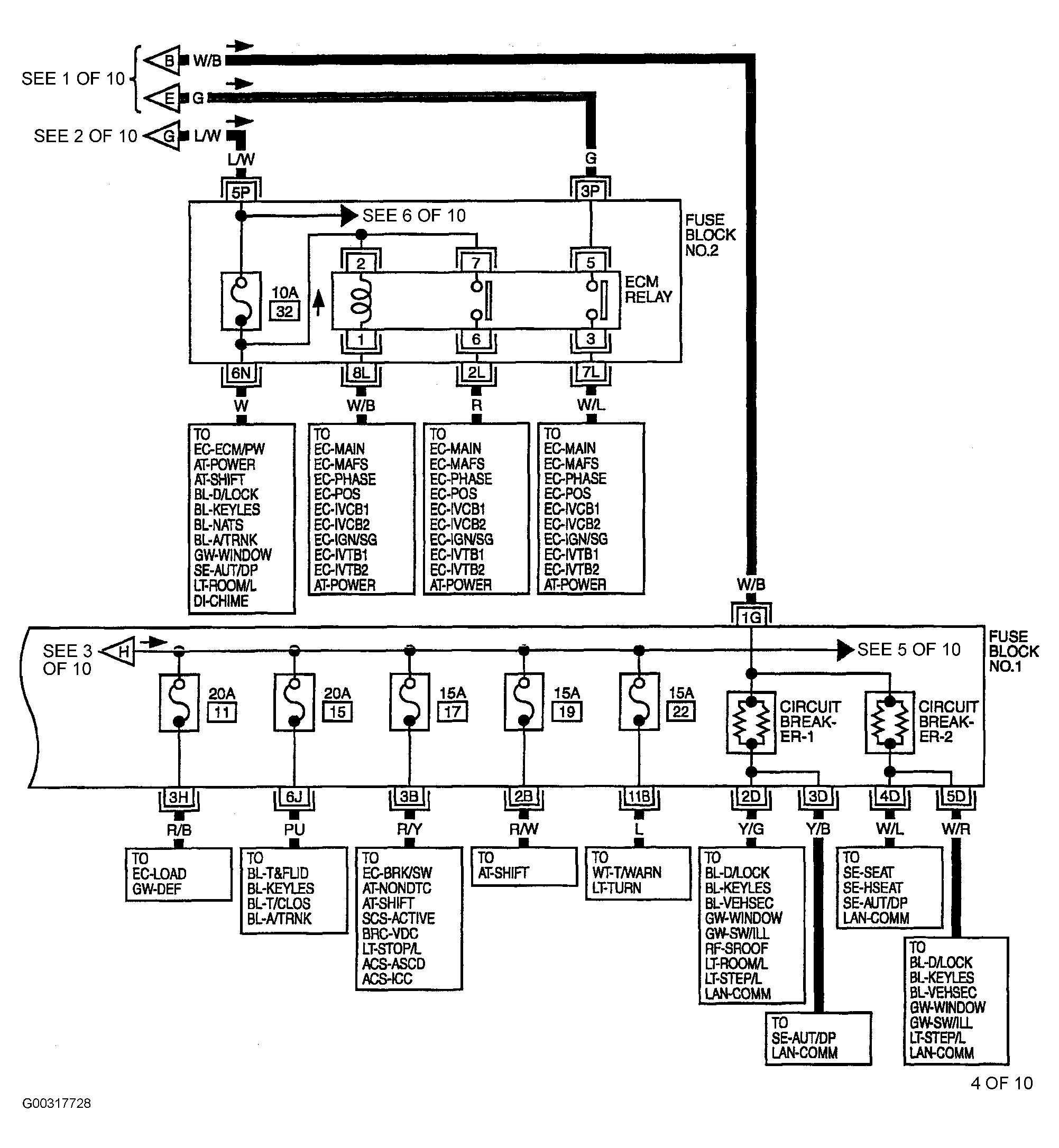

Fig 8: Identifying Circuit Protection Components (4 Of 10)

G00317728

Courtesy of NISSAN MOTOR CO., U.S.A.

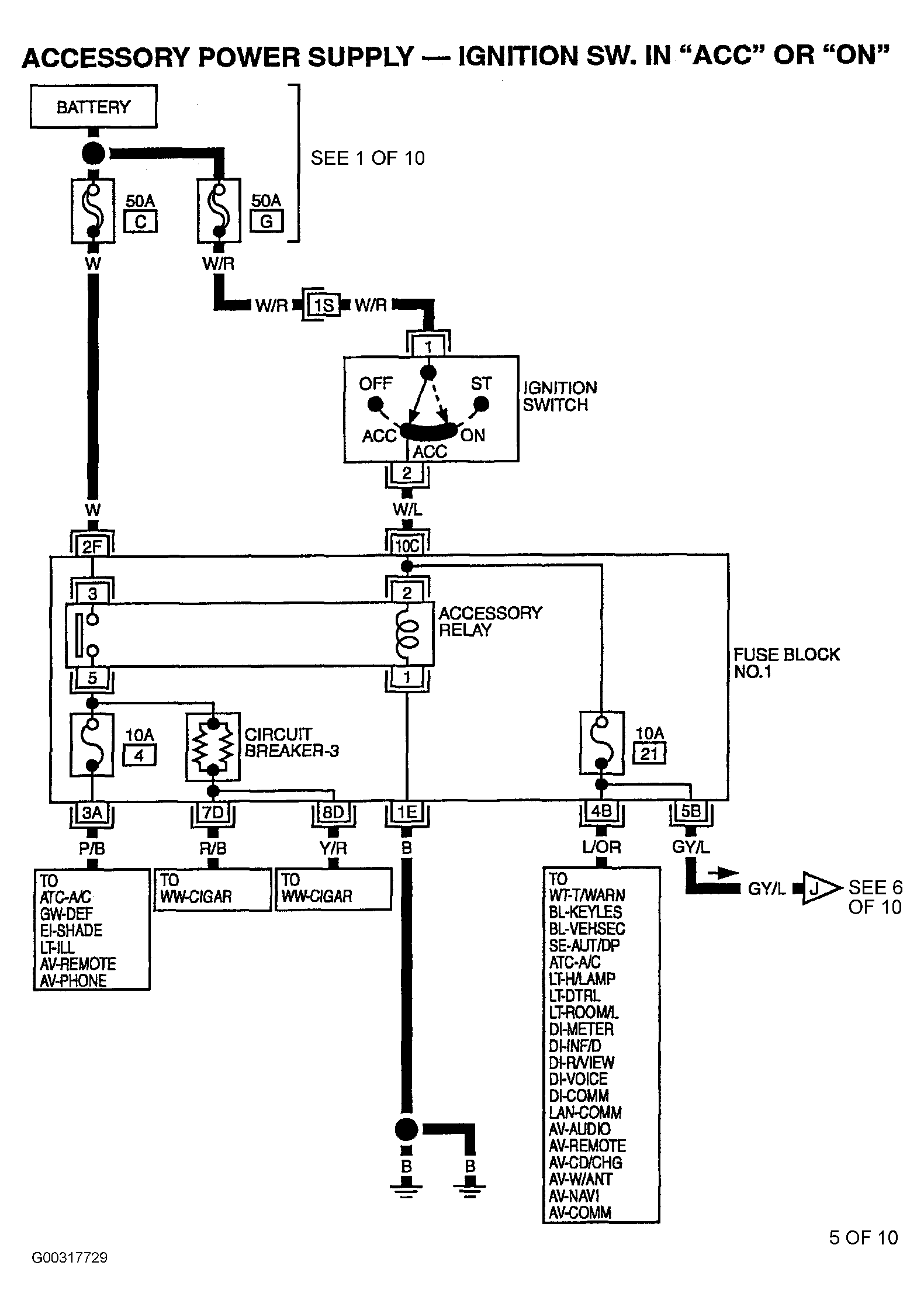

Fig 9: Identifying Circuit Protection Components (5 Of 10)

G00317729

Courtesy of NISSAN MOTOR CO., U.S.A.

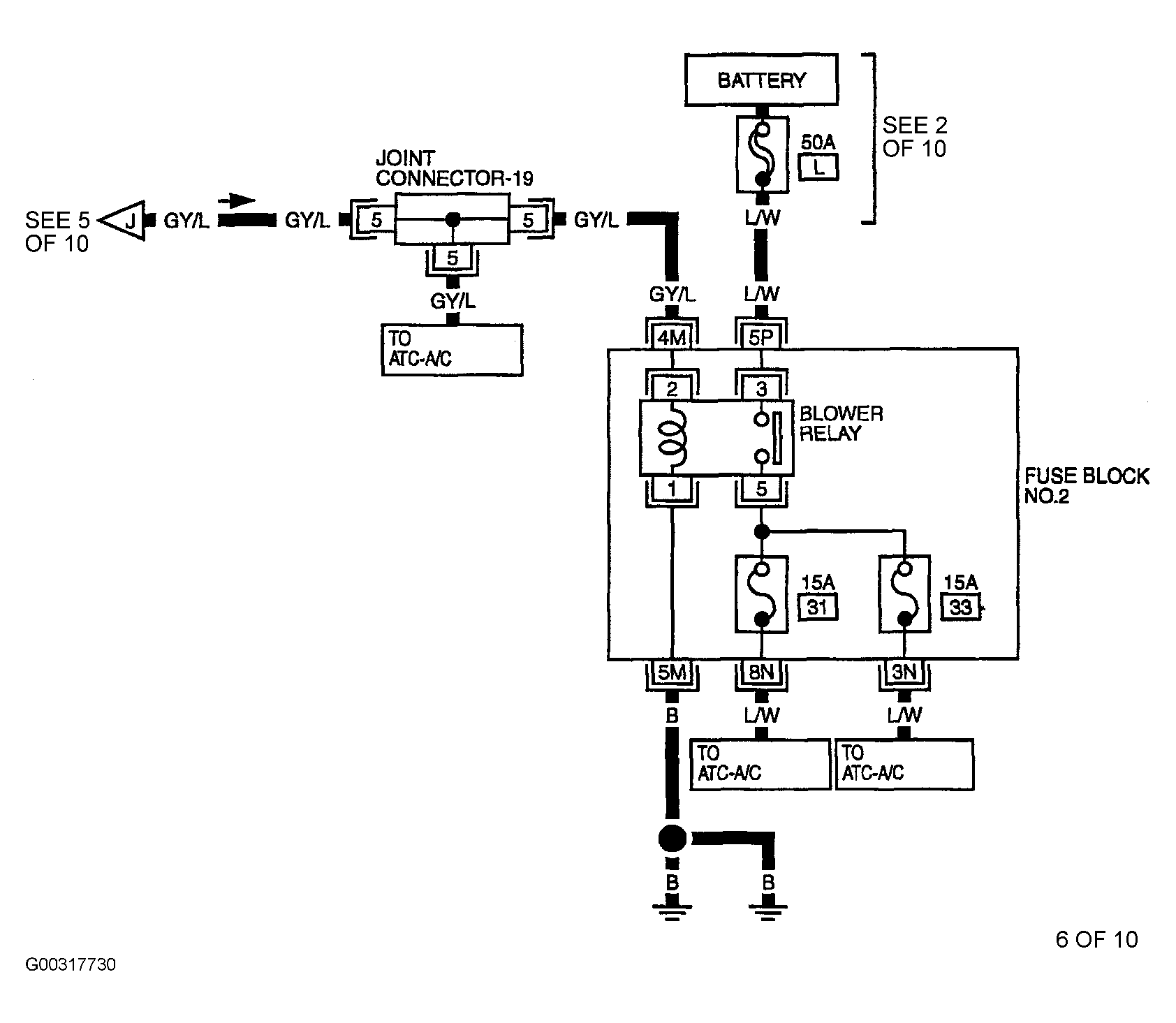

Fig 10: Identifying Circuit Protection Components (6 Of 10)

G00317730

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

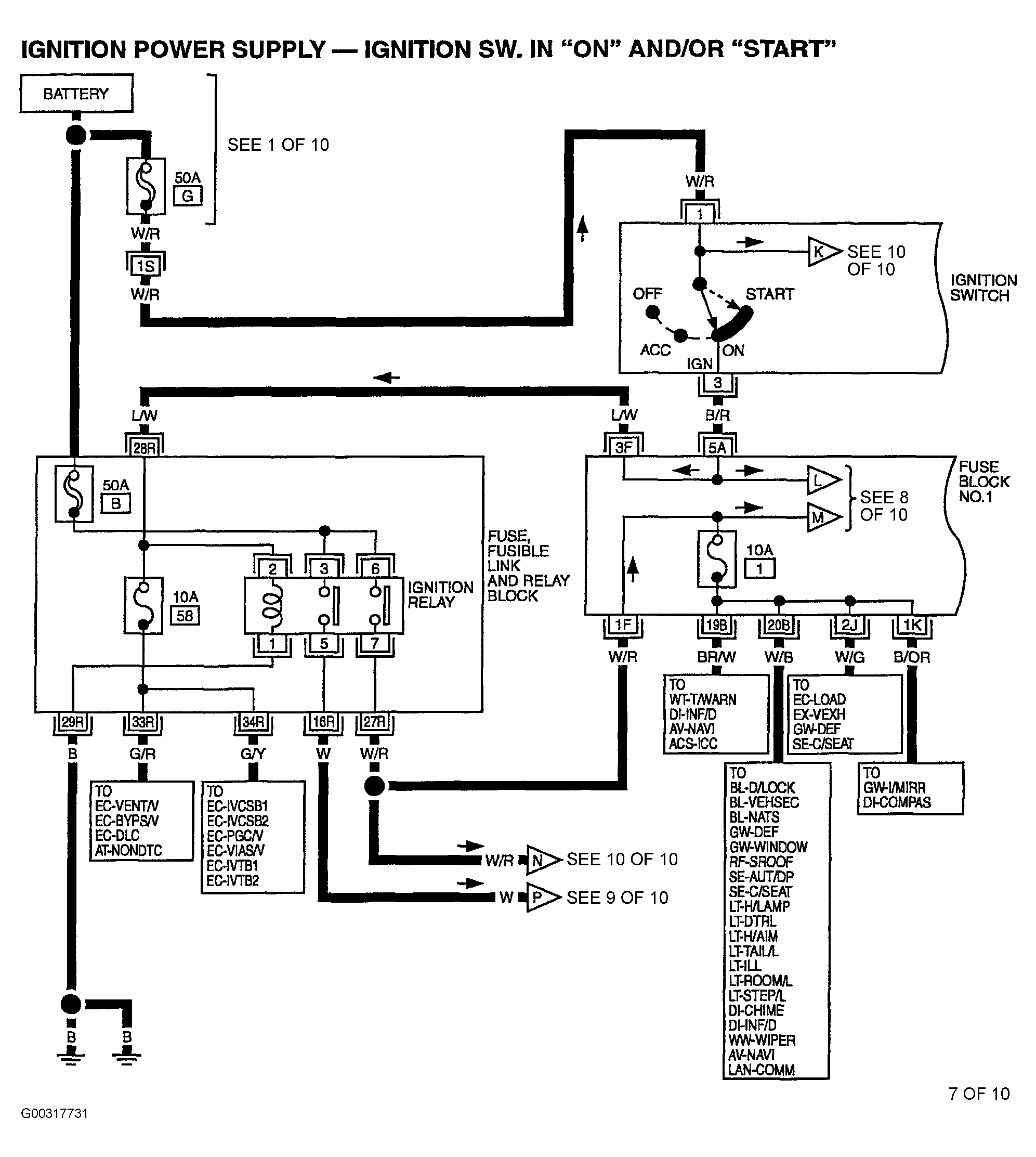

Fig 11: Identifying Circuit Protection Components (7 Of 10)

G00317731

Courtesy of NISSAN MOTOR CO., U.S.A.

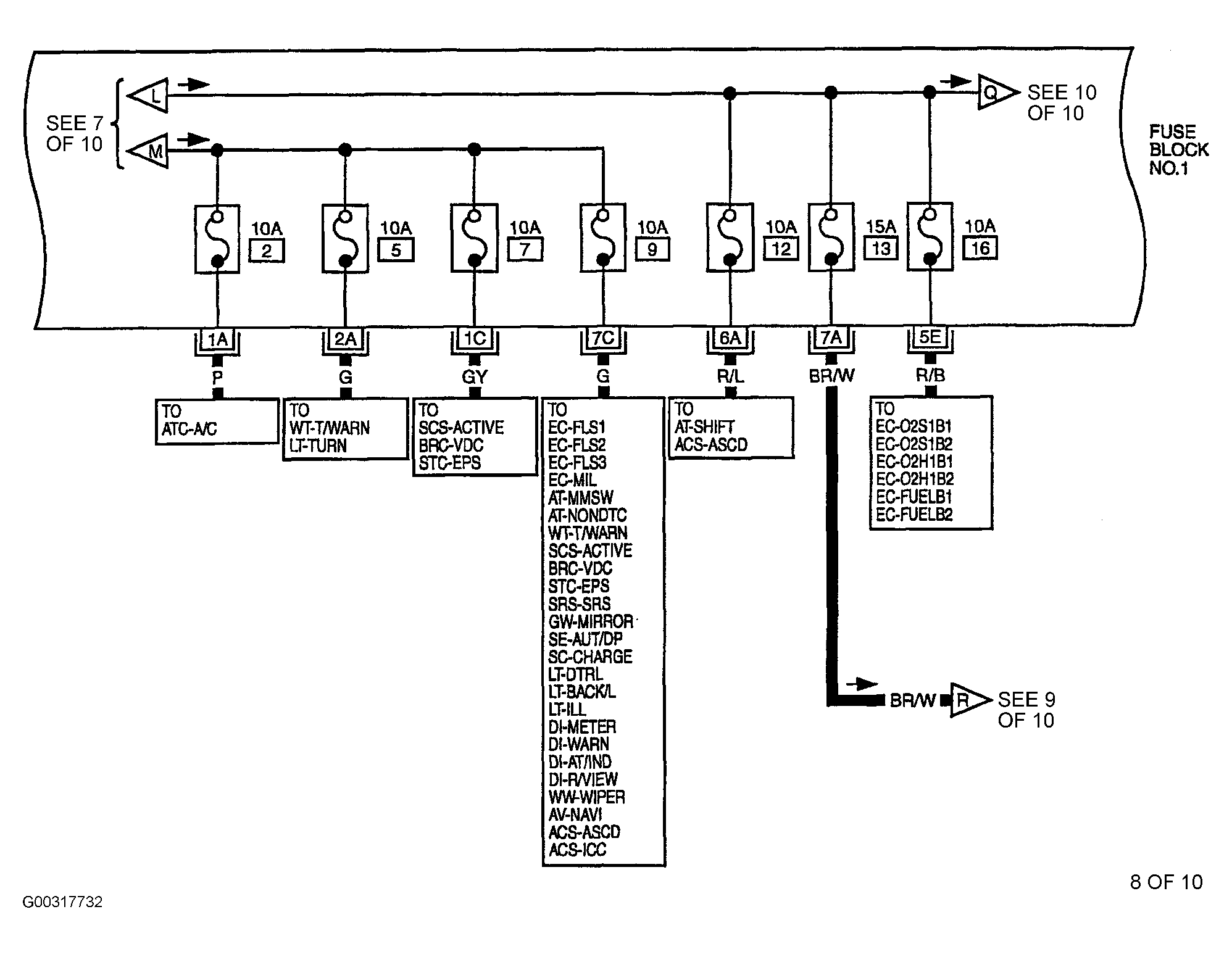

Fig 12: Identifying Circuit Protection Components (8 Of 10)

G00317732

Courtesy of NISSAN MOTOR CO., U.S.A.

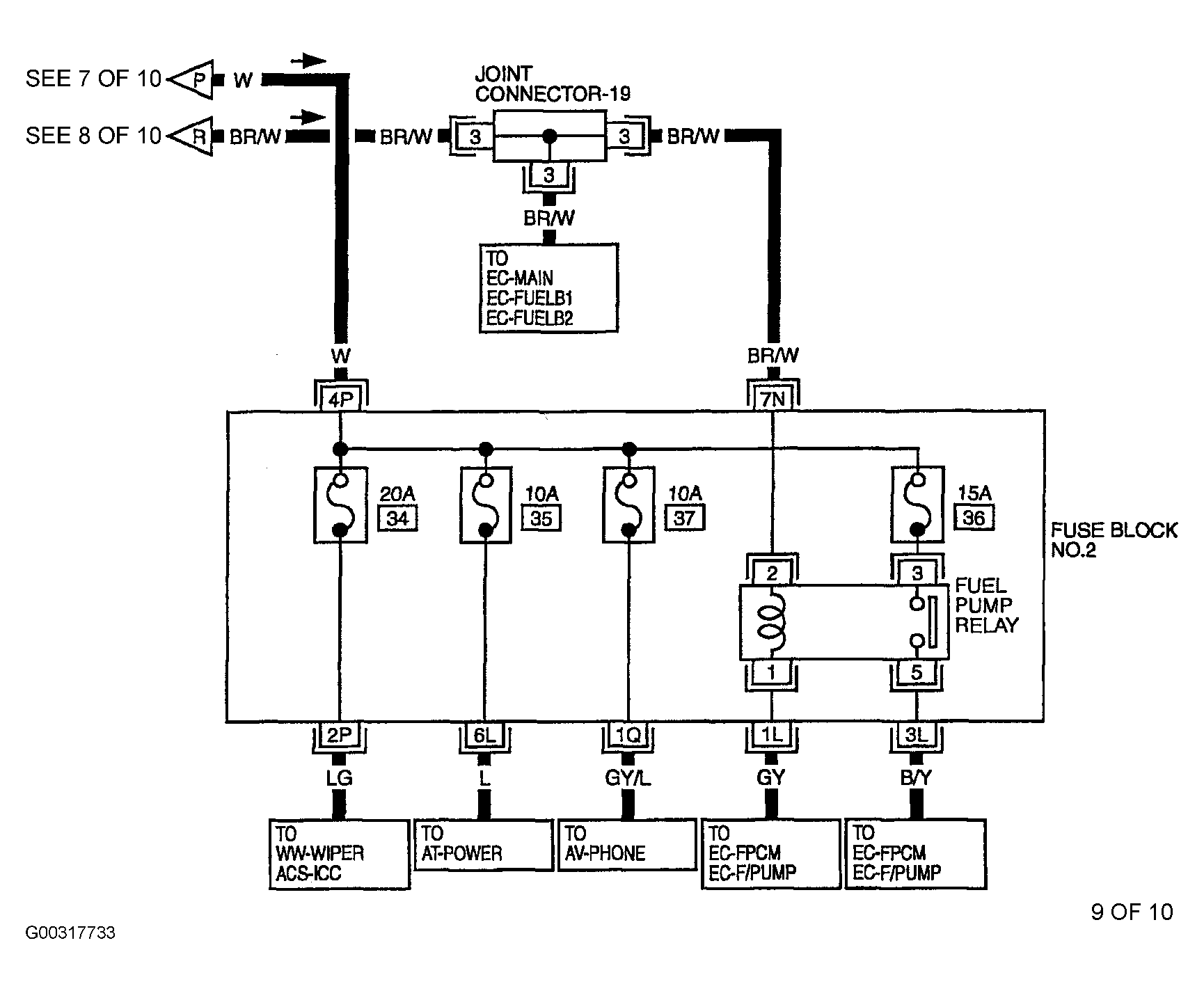

Fig 13: Identifying Circuit Protection Components (9 Of 10)

G00317733

Courtesy of NISSAN MOTOR CO., U.S.A.

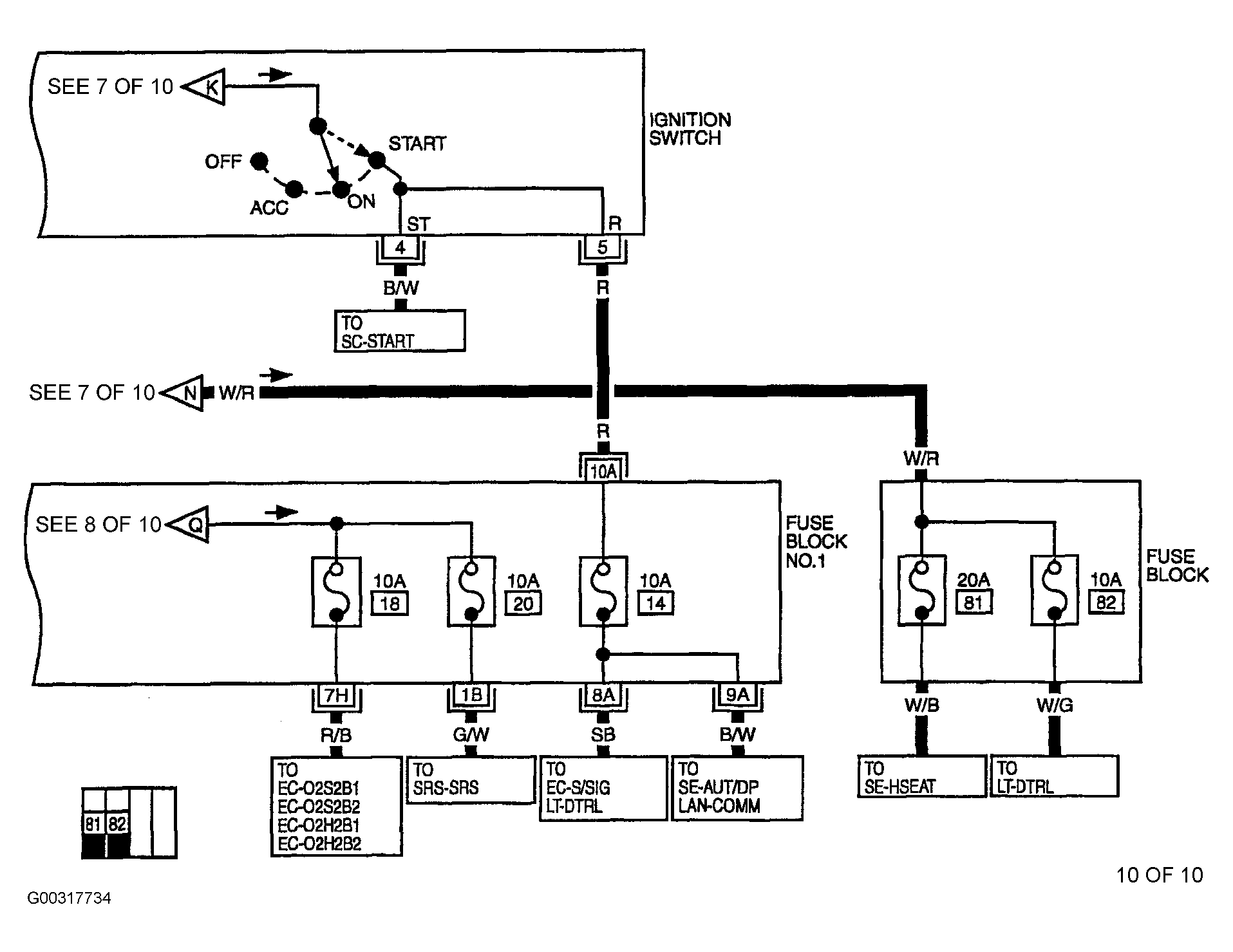

Fig 14: Identifying Circuit Protection Components (10 Of 10)

G00317734

Courtesy of NISSAN MOTOR CO., U.S.A.
