Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
System Description
>>
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

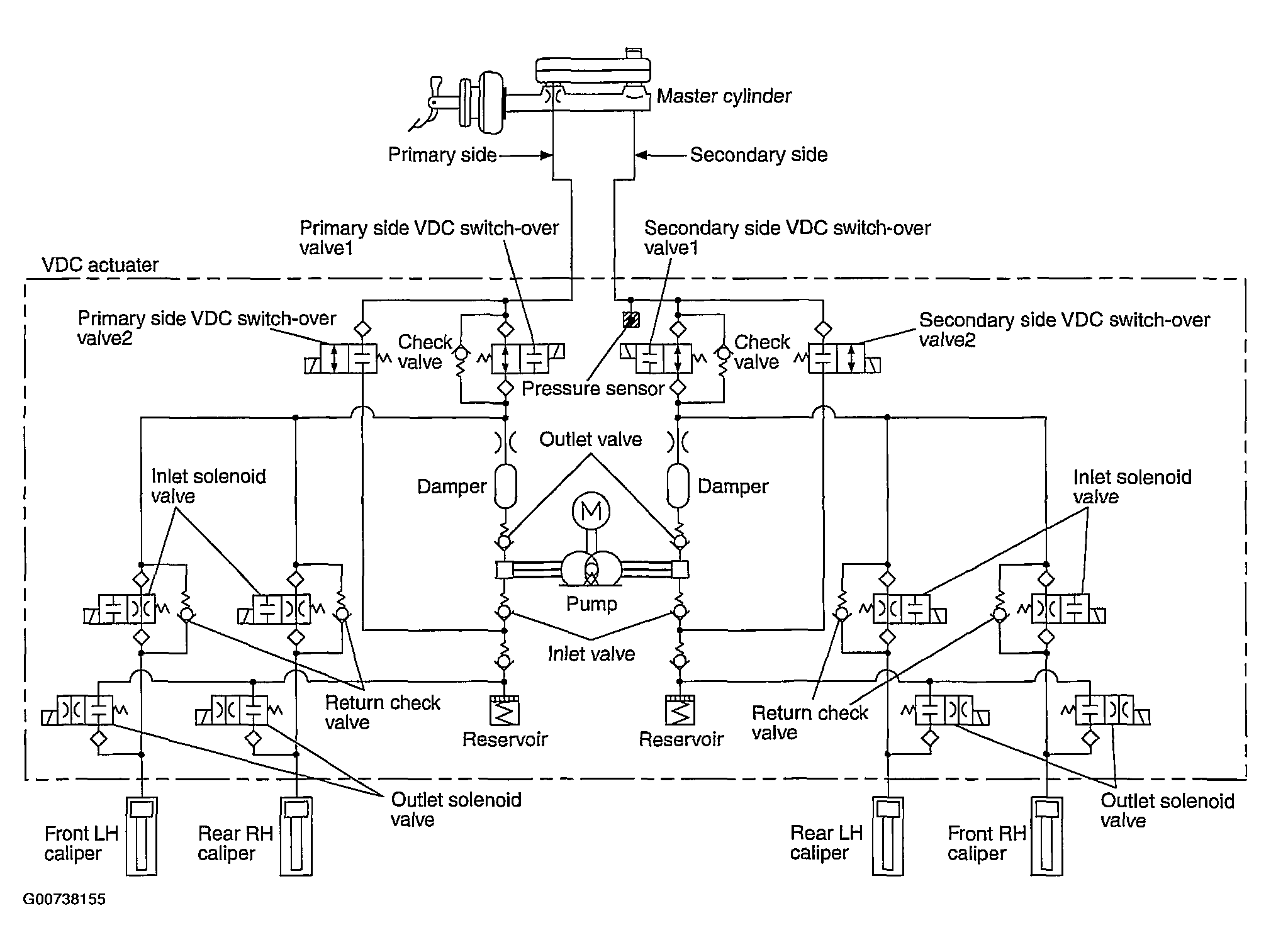

Fig 1: Identifying Hydraulic Circuit Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
