Trouble Diagnosis Chart By Symptom

Always check the "Work Flow" before troubleshooting. Refer to WORK FLOW .
Before carrying out the inspection on the following table, perform the preliminary check.
Refer to PRELIMINARY CHECK .

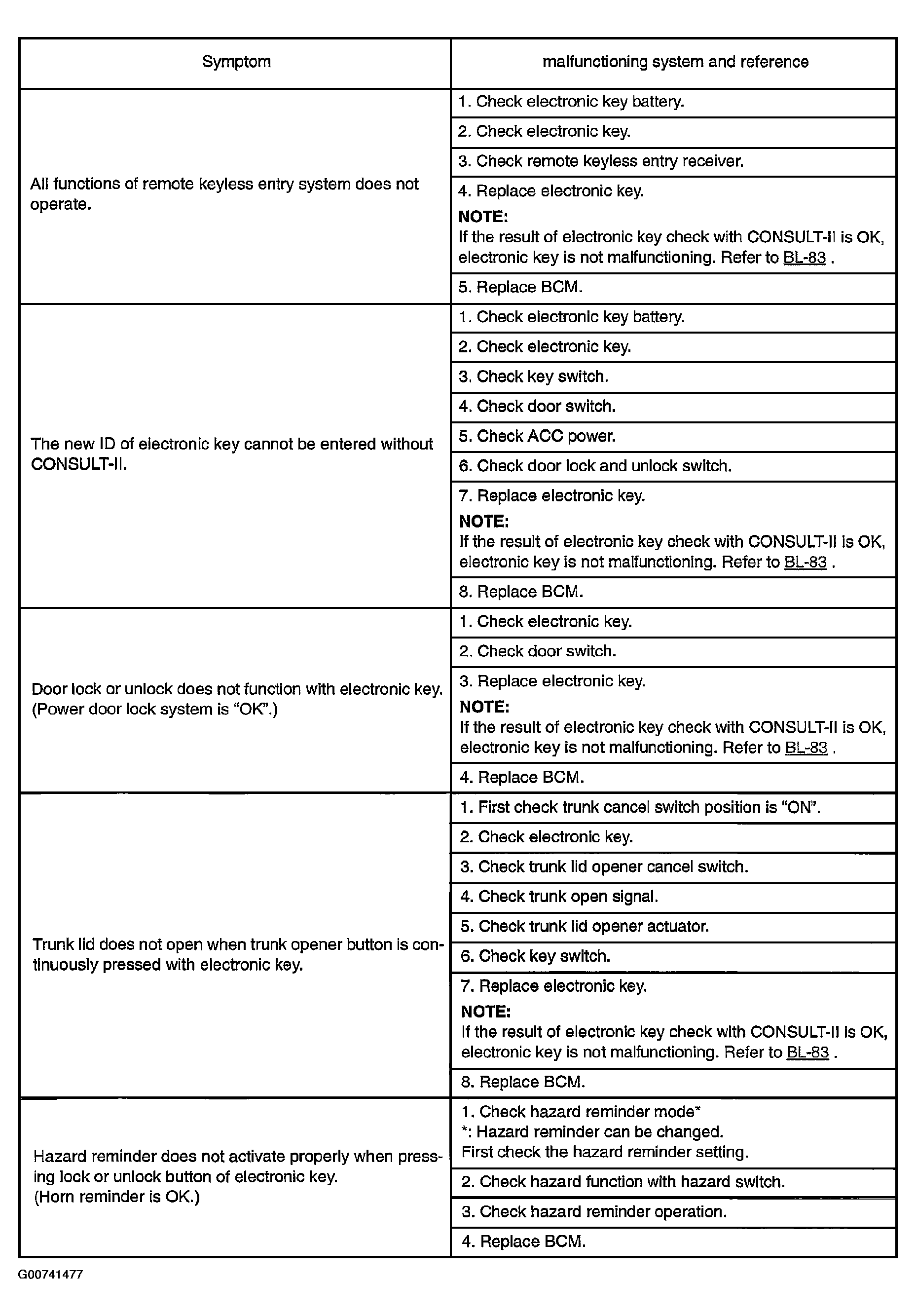

Fig 1: Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

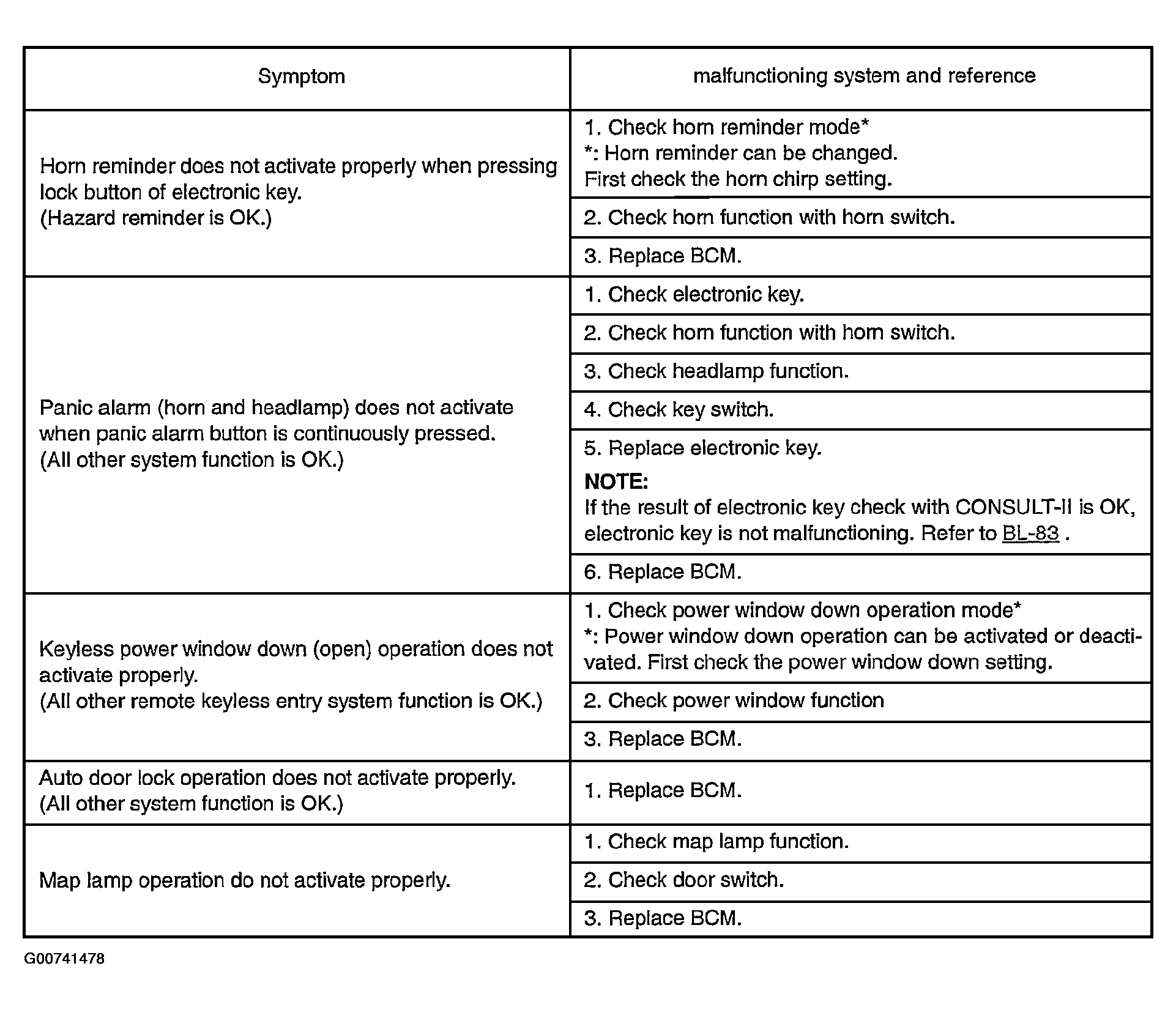

Fig 2: Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
