Symptom Chart
Symptom Chart
Always check the "Work Flow" before troubleshooting. Refer to
Work Flow
.
Before carrying out the inspection on the following table, carry out the preliminary check.
Refer to
Preliminary Check
.

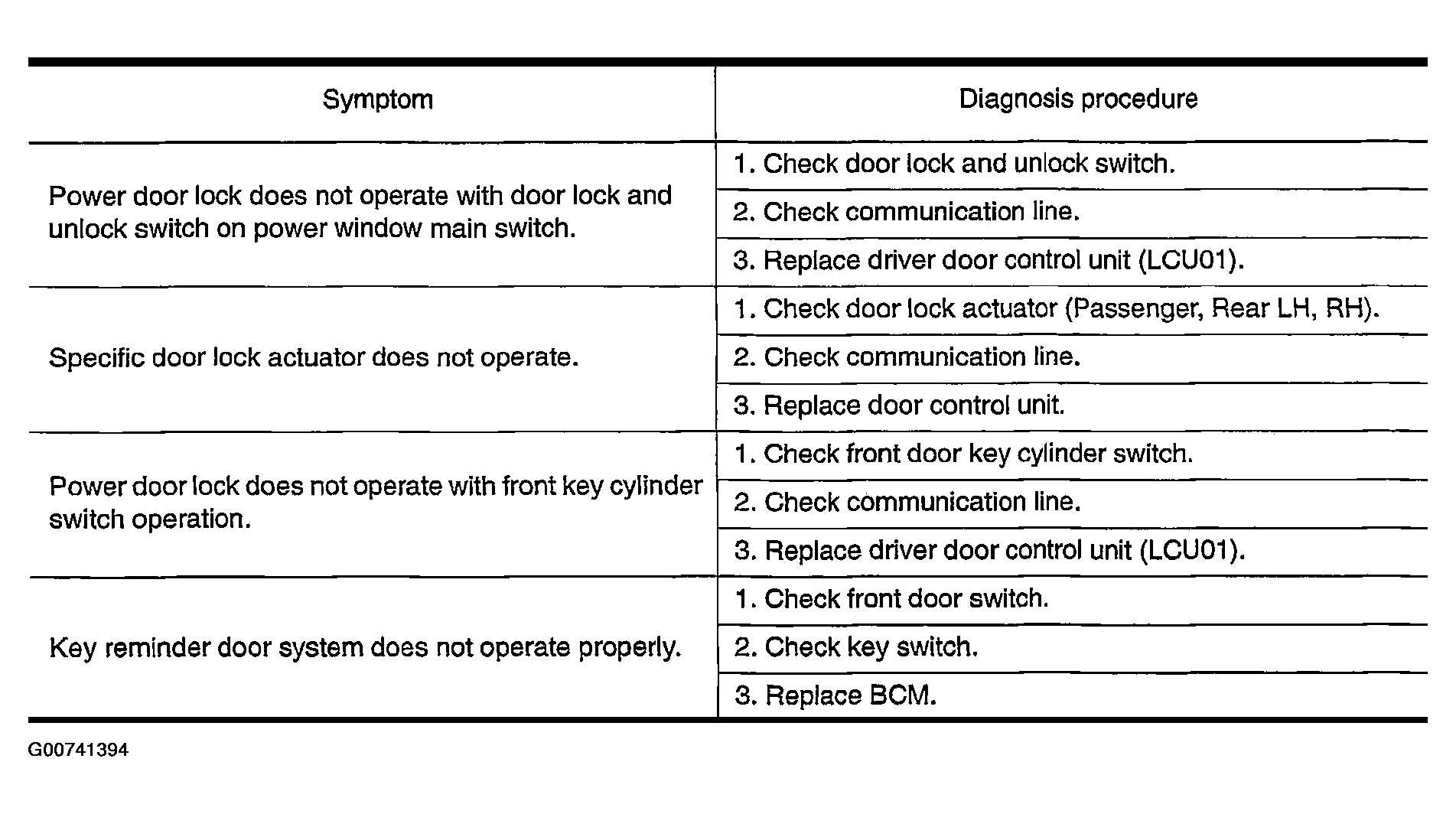

Fig 1: Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
