Home >> Infiniti >> 2004 >> Q45 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Body, Lock & Security System >> Fitting Adjustment >> Notes

Fitting Adjustment: Notes

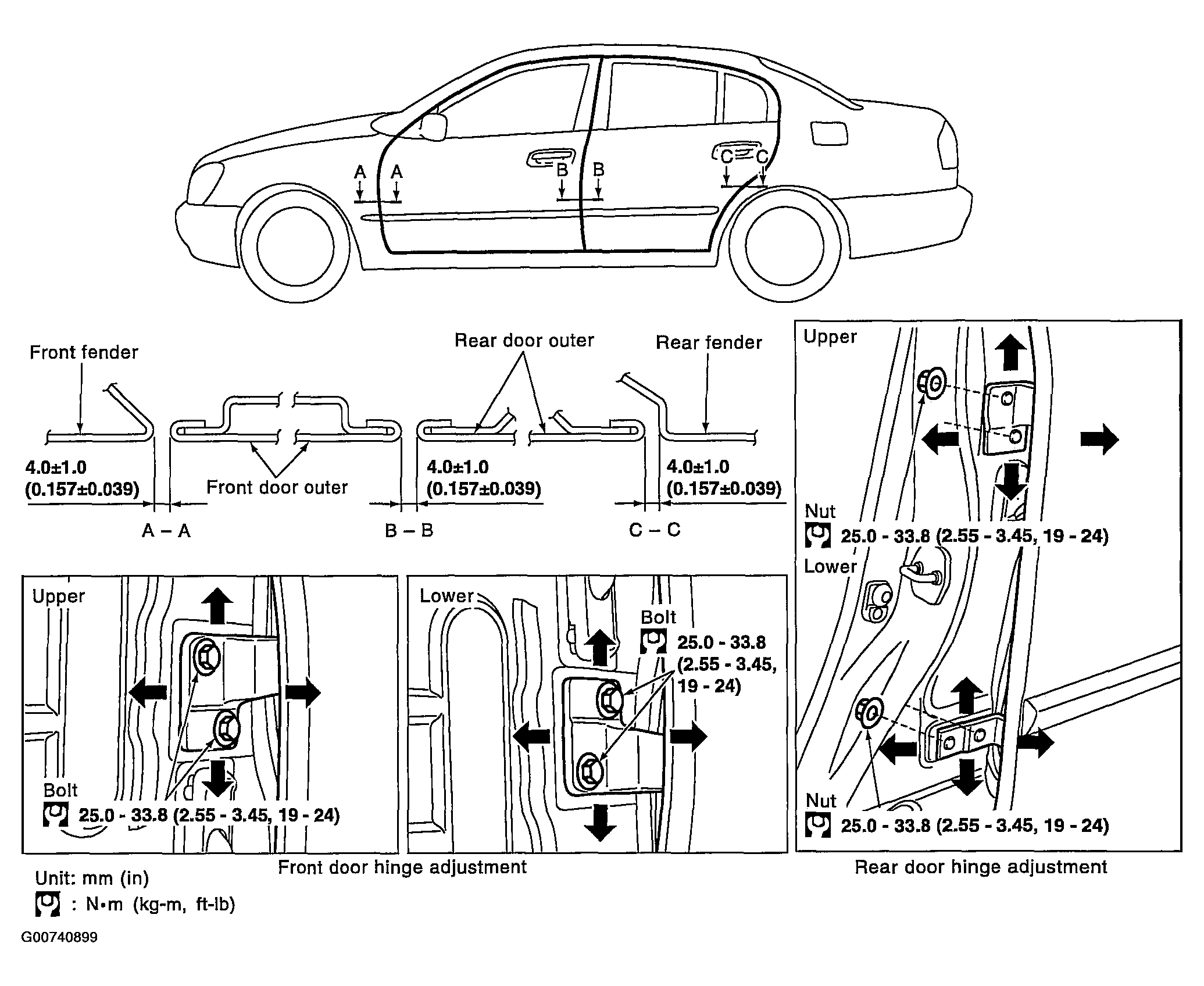

Fig 1: Fitting Adjustment

G00740899

Courtesy of NISSAN MOTOR CO., U.S.A.
