Terminals and Reference Value for Rear Control Switch

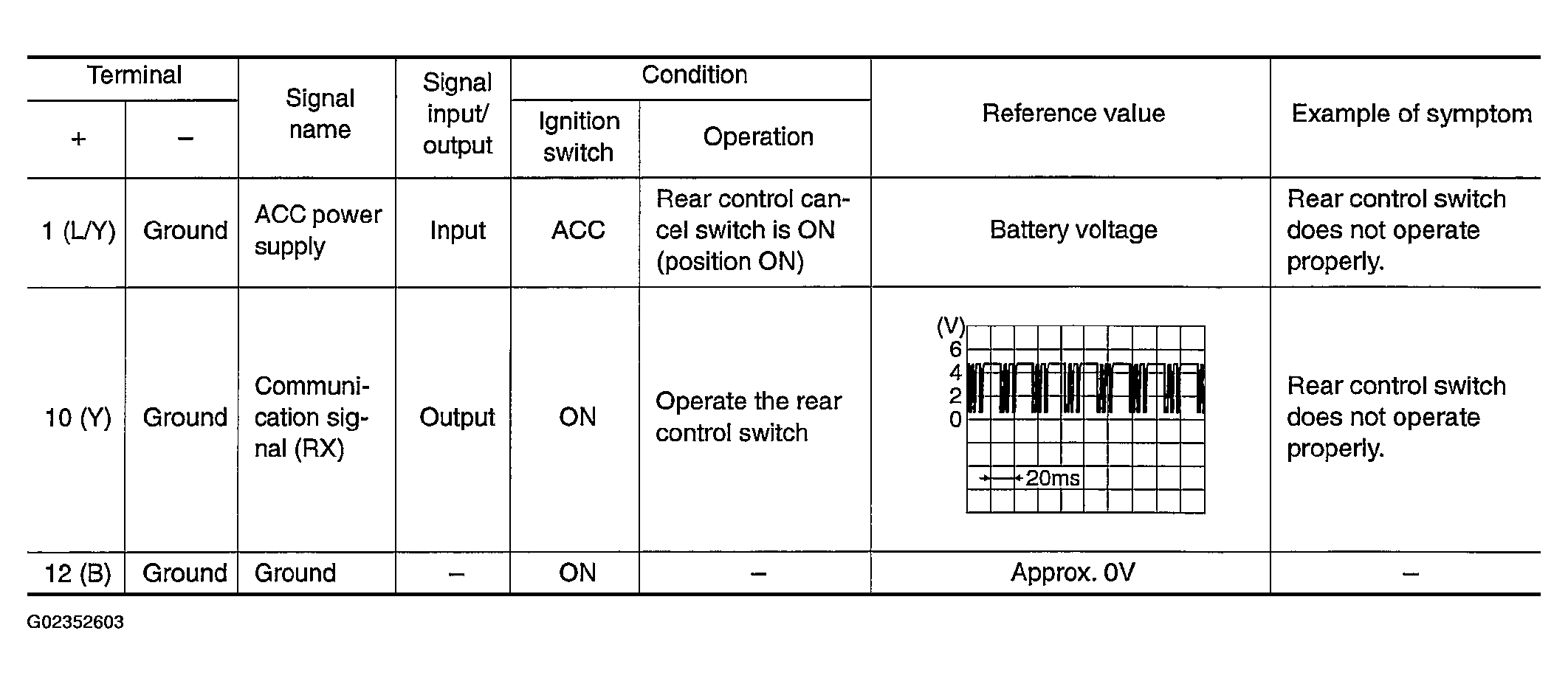

Fig 1: Rear Control Switch Changer Terminals And Reference Values

G02352603

Courtesy of NISSAN MOTOR CO., U.S.A.
