Rear Control Switch Does Not Operate

  1. CONFIRM STATUS OF REAR CONTROL CANCEL SWITCH

    Is rear control cancel switch in the status of cancel?

    YES or NO

    1. YES: After turning on the switch reconfirm the status.
    2. NO: GO TO 2.
  2. SELF-DIAGNOSIS MODE OF MULTIFUNCTION SWITCH
    1. Perform the self-diagnosis mode in the self-diagnosis function. Refer to "MULTIFUNCTION SWITCH SELF-DIAGNOSIS FUNCTION " (Without navigation system), "MULTIFUNCTION SWITCH SELF-DIAGNOSIS FUNCTION "(With navigation system).
    2. Push rear control switch.
      1. Beep sound should operate.

    OK or NG

    1. OK: GO TO  12 .
    2. NG: GO TO 3.
  3. CHECK POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between rear control cancel switch harness connector R16 terminal 4 (P/B) and ground.
      1. 4 - Ground: Battery voltage

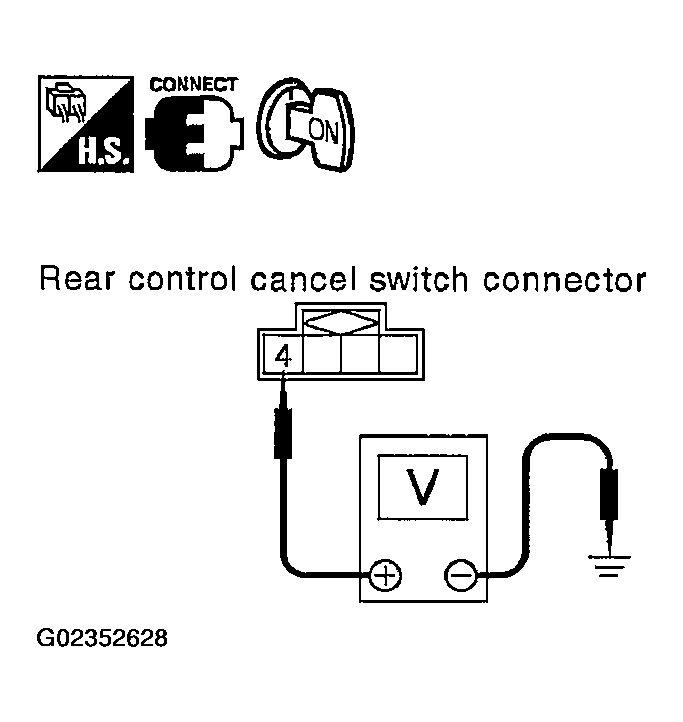

    Fig 1: Checking Voltage Between Rear Control Cancel Switch Harness Connector R16 Terminal 4 (P/B) And Ground
    G02352628Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair harness or connector.
  4. CHECK REAR CONTROL CANCEL SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect rear control cancel switch connector.
    3. Check continuity between rear control cancel switch terminals 3 and 4.
      1. When push "ON": Continuity should exist.
      2. When push "CANCEL": Continuity should not exist.

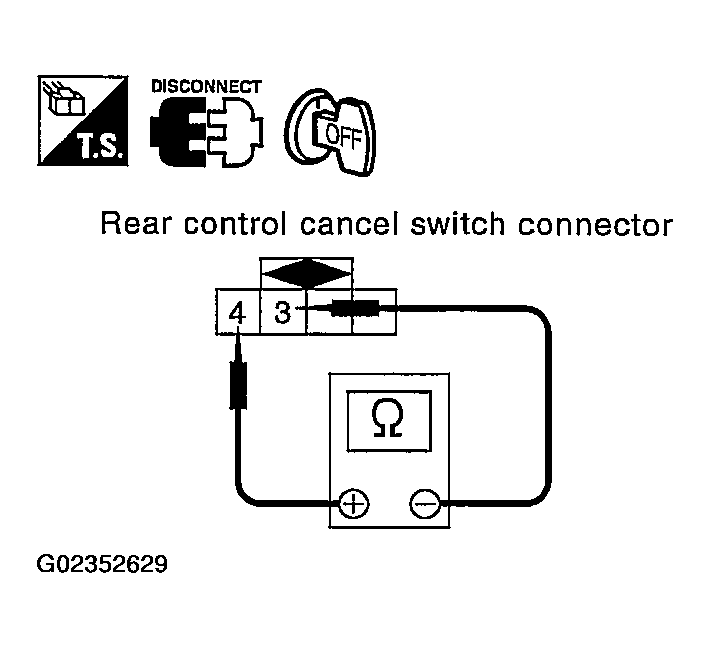

      Fig 2: Checking Continuity Between Rear Control Cancel Switch Terminals 3 And 4
      G02352629Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace rear control cancel switch.
  5. CHECK HARNESS
    1. Disconnect rear control cancel relay connector.
    2. Check continuity between rear control cancel switch harness connector R16 terminal 3 (G) and rear control cancel relay harness connector B253 terminal 2 (G).
      1. 3 - 2: Continuity should exist.

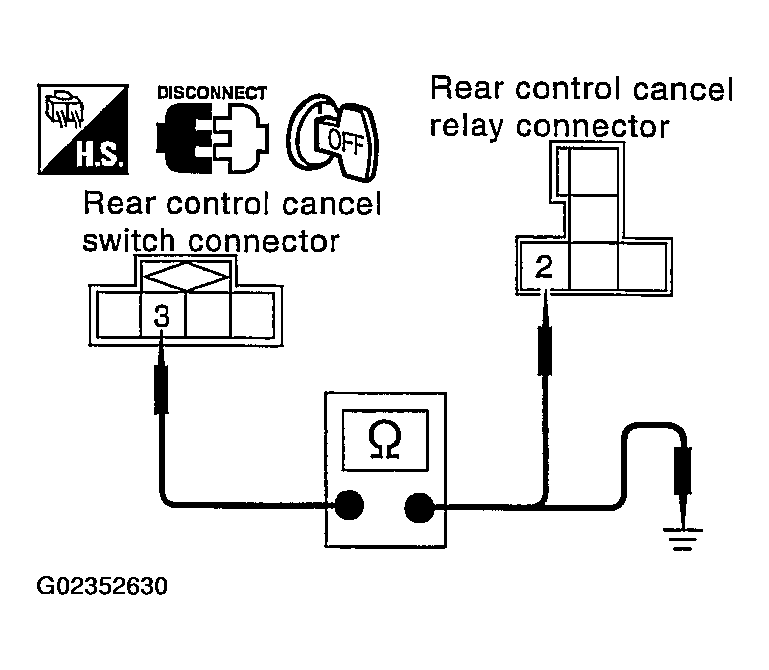

      3. Fig 3: Checking Continuity Between Rear Control Cancel Switch Harness Connector R16 Terminal 3 (G) And Rear Control Cancel Relay Harness Connector B253 Terminal 2 (G)
      G02352630Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between rear control cancel switch harness connector R16 terminal 3 (G) and ground.
      1. 3 - Ground: Continuity should not exist.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair harness or connector.
  6. CHECK REAR CONTROL CANCEL RELAY GROUND CIRCUIT

    Check continuity rear control cancel relay harness connector B253 terminal 1 (B) and ground.

    1. 1 - Ground: Continuity should exist.

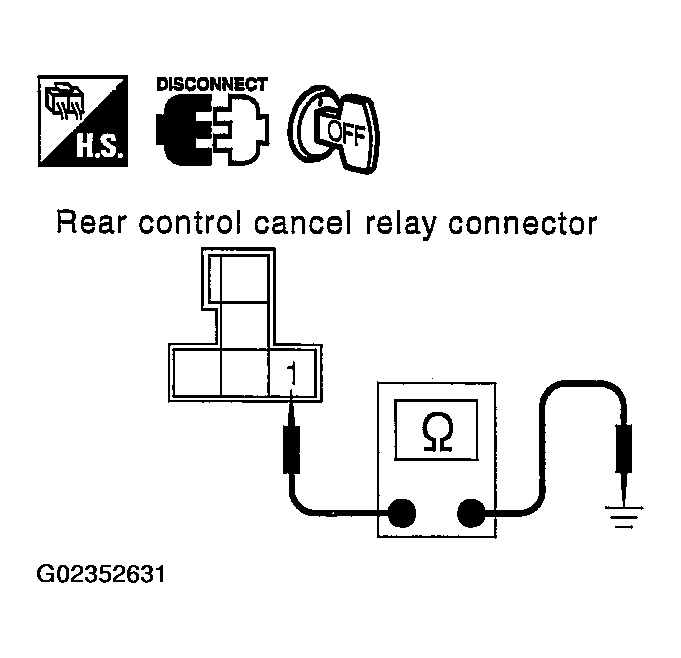

    Fig 4: Checking Continuity Rear Control Cancel Relay Harness Connector B253 Terminal 1 (B) And Ground
    G02352631Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 7.
    2. NG: Repair harness or connector.
  7. CHECK REAR CONTROL CANCEL RELAY
    1. Supply 12V current between rear control cancel relay terminals 1 and 2.
    2. Check continuity between rear control cancel relay terminals 3 and 5.
      1. 3-5: Continuity should exist.

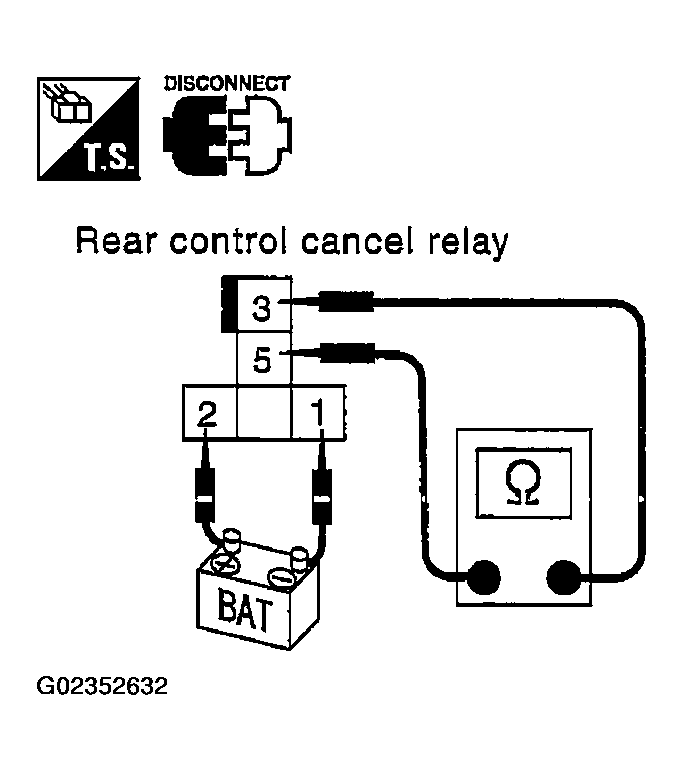

    Fig 5: Checking Continuity Between Rear Control Cancel Relay Terminals 3 And 5
    G02352632Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace rear control cancel relay.
  8. CHECK POWER SUPPLY CIRCUIT
    1. Connect rear control cancel switch connector and rear control cancel relay connector.
    2. Turn ignition switch ON.
    3. Check voltage between rear control cancel relay harness connector B253 terminal 3 (L/OR) and ground.
      1. 3 - Ground: Battery voltage

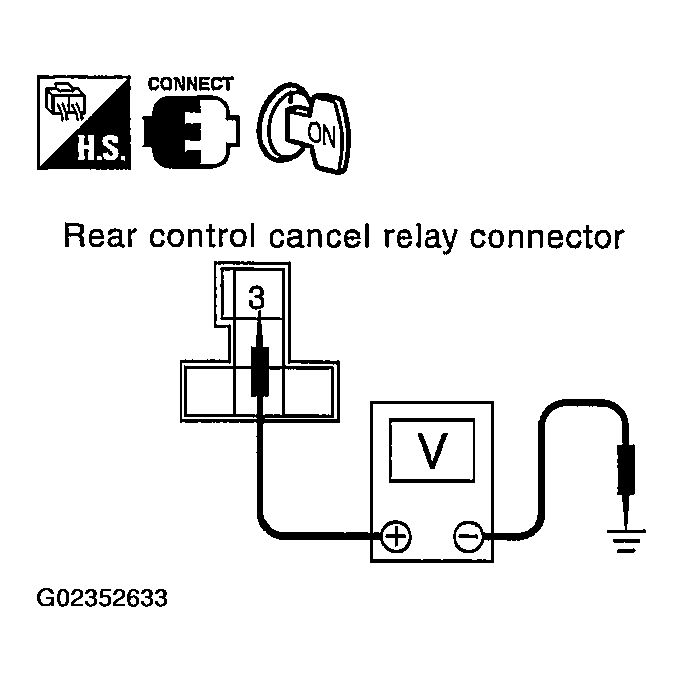

    Fig 6: Checking Voltage Between Rear Control Cancel Relay Harness Connector B253 Terminal 3 (L/OR) And Ground
    G02352633Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Repair harness or connector.
  9. CHECK HARNESS
    1. Turn ignition switch OFF.
    2. Disconnect rear control switch connector and rear control cancel relay connector.
    3. Check continuity between rear control switch harness connector B502 terminal 1 (L/Y) and rear control cancel relay harness connector B253 terminal 5 (L/Y).
      1. 1-5: Continuity should exist.

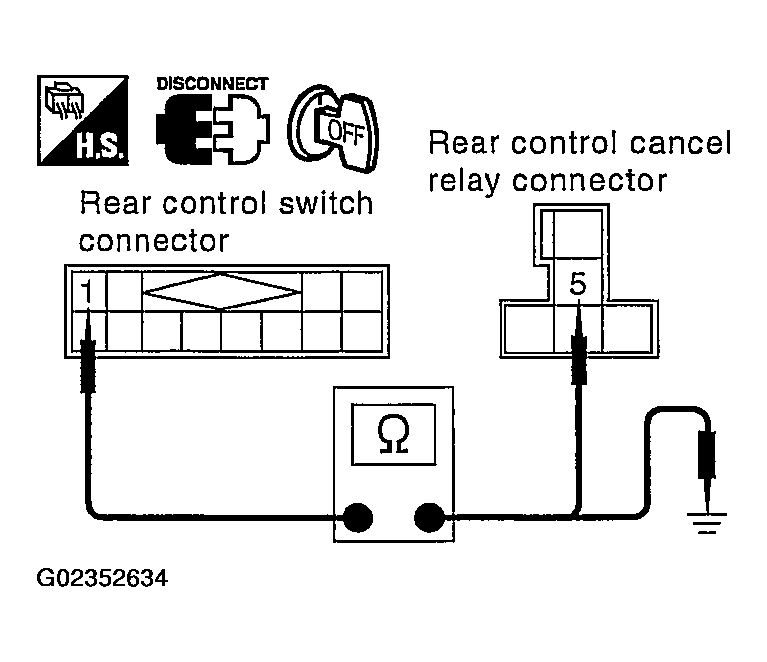

      4. Fig 7: Checking Continuity Between Rear Control Switch Harness Connector B502 Terminal 1 (L/Y) And Rear Control Cancel Relay Harness Connector B253 Terminal 5 (L/Y)
      G02352634Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between rear control switch harness connector B502 terminal 1 (L/Y) and ground.
      1. 1 - Ground: Continuity should not exist.

    OK or NG

    1. OK: GO TO 10.
    2. NG: Repair harness or connector.
  10. CHECK HARNESS

    Check continuity between rear control switch harness connector B502 terminal 12 (B) and ground.

    1. 12 - Ground: Continuity should exist.

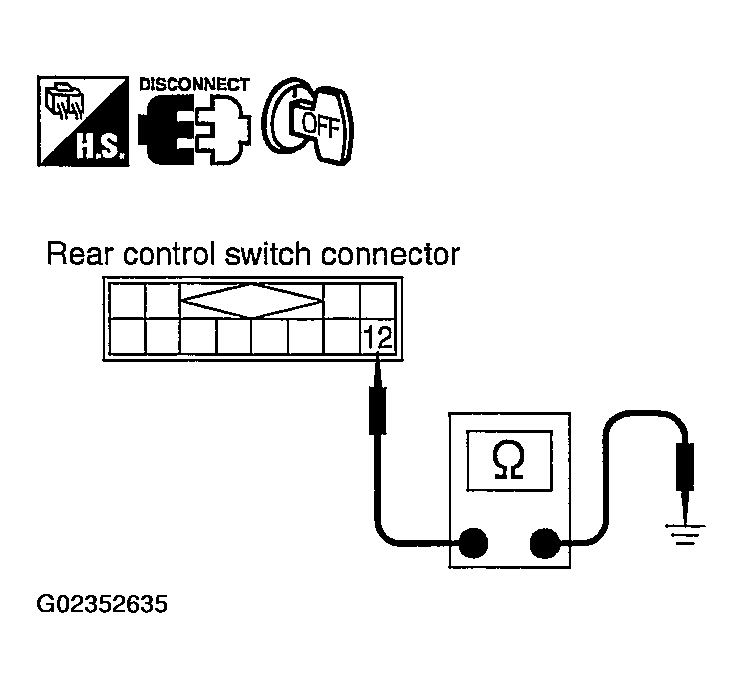

    Fig 8: Checking Continuity Between Rear Control Switch Harness Connector B502 Terminal 12 (B) And Ground
    G02352635Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 11.
    2. NG: Repair harness or connector.
  11. CHECK HARNESS
    1. Disconnect multifunction switch connector.
    2. Check continuity between rear control switch harness connector B502 terminal 10 (Y) and multifunction switch harness connector M83 terminal 8 (Y).
      1. 10 - 8: Continuity should exist.

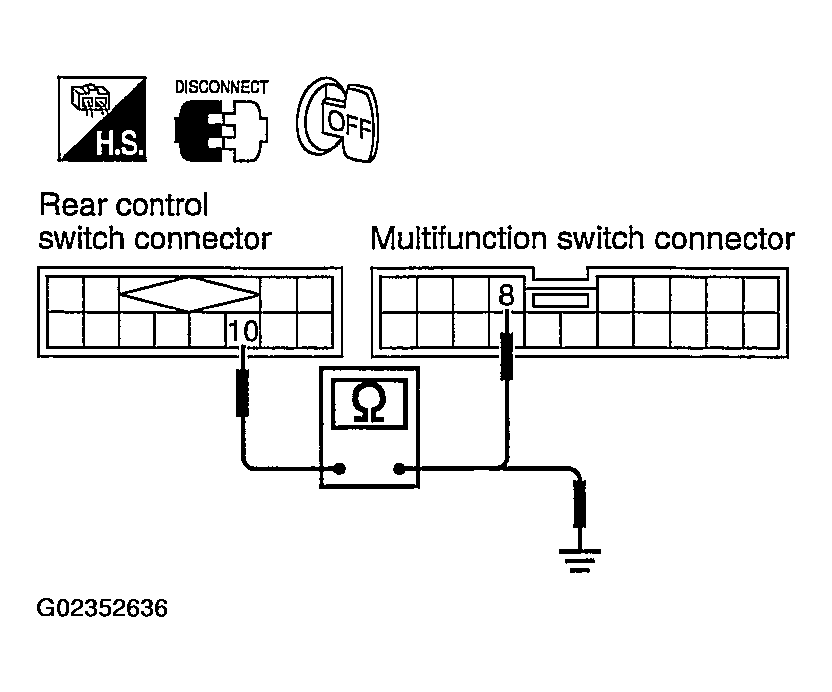

      3. Fig 9: Checking Continuity Between Rear Control Switch Harness Connector B502 Terminal 10 (Y) And Multifunction Switch Harness Connector M83 Terminal 8 (Y)
      G02352636Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between rear control switch harness connector B502 terminal 10 (Y) and ground.
      1. 10 - Ground: Continuity should not exist.

    OK or NG

    1. OK: GO TO 12.
    2. NG: Repair harness or connector.
  12. CHECK REAR CONTROL SWITCH SIGNAL
    1. Connect multifunction switch connector, rear control switch connector, rear control cancel relay connector and rear control cancel switch connector.
    2. Turn ignition switch ON.
    3. Check signal between rear control switch harness connector B502 terminal 10 (Y) and ground with CONSULT-II or oscilloscope, when operating the rear control switch.

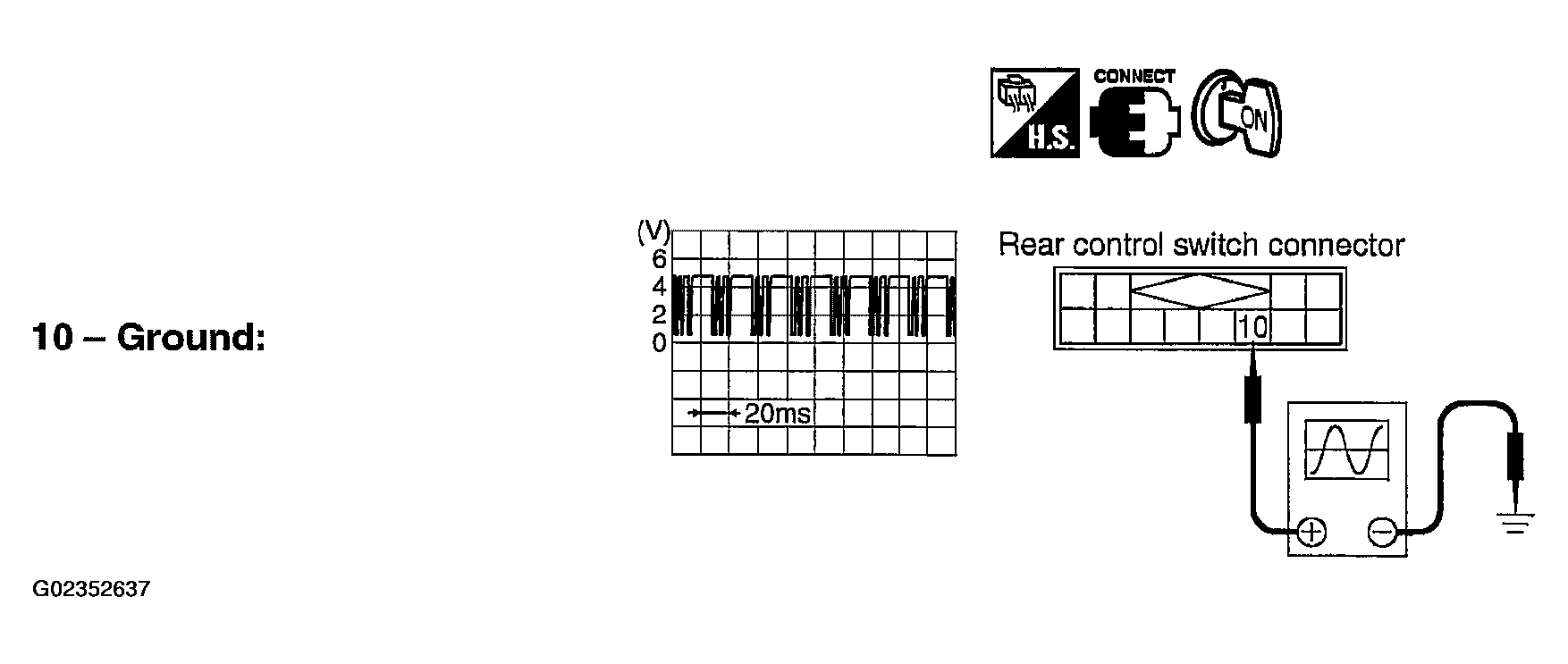

      Fig 10: Checking Signal Between Rear Control Switch Harness Connector B502 Terminal 10 (Y) And Ground
      G02352637Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Replace multifunction switch.
    2. NG: Replace rear control switch.
