On Board Diagnosis Logic

These self-diagnoses have the one trip detection logic.

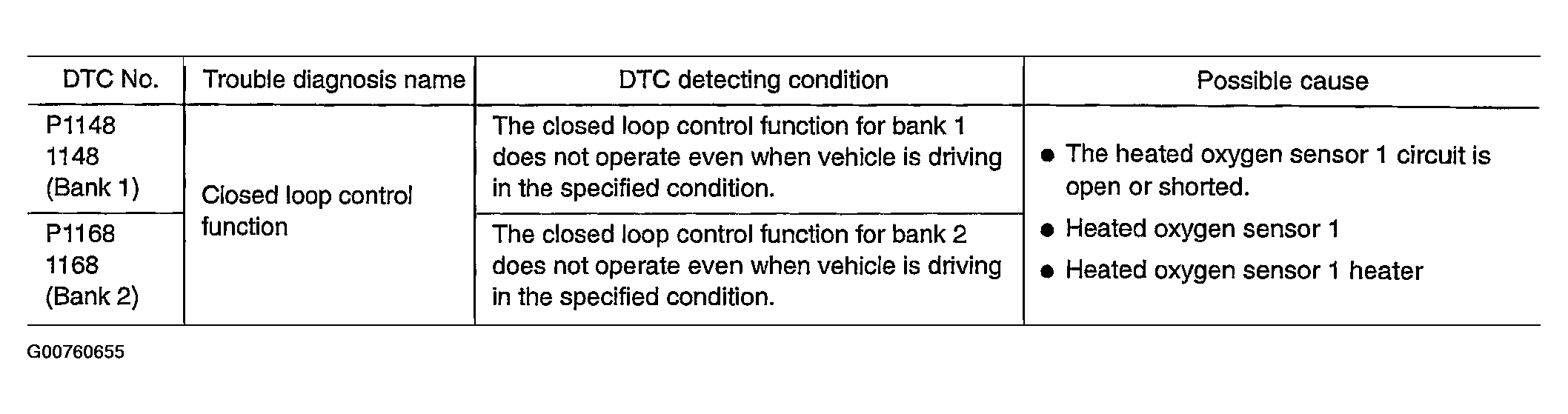

Fig 1: On Board Diagnosis Logic

G00760655

Courtesy of NISSAN MOTOR CO., U.S.A.
