DTC P1119: Radiator Coolant Temperature Sensor: Wiring Diagram

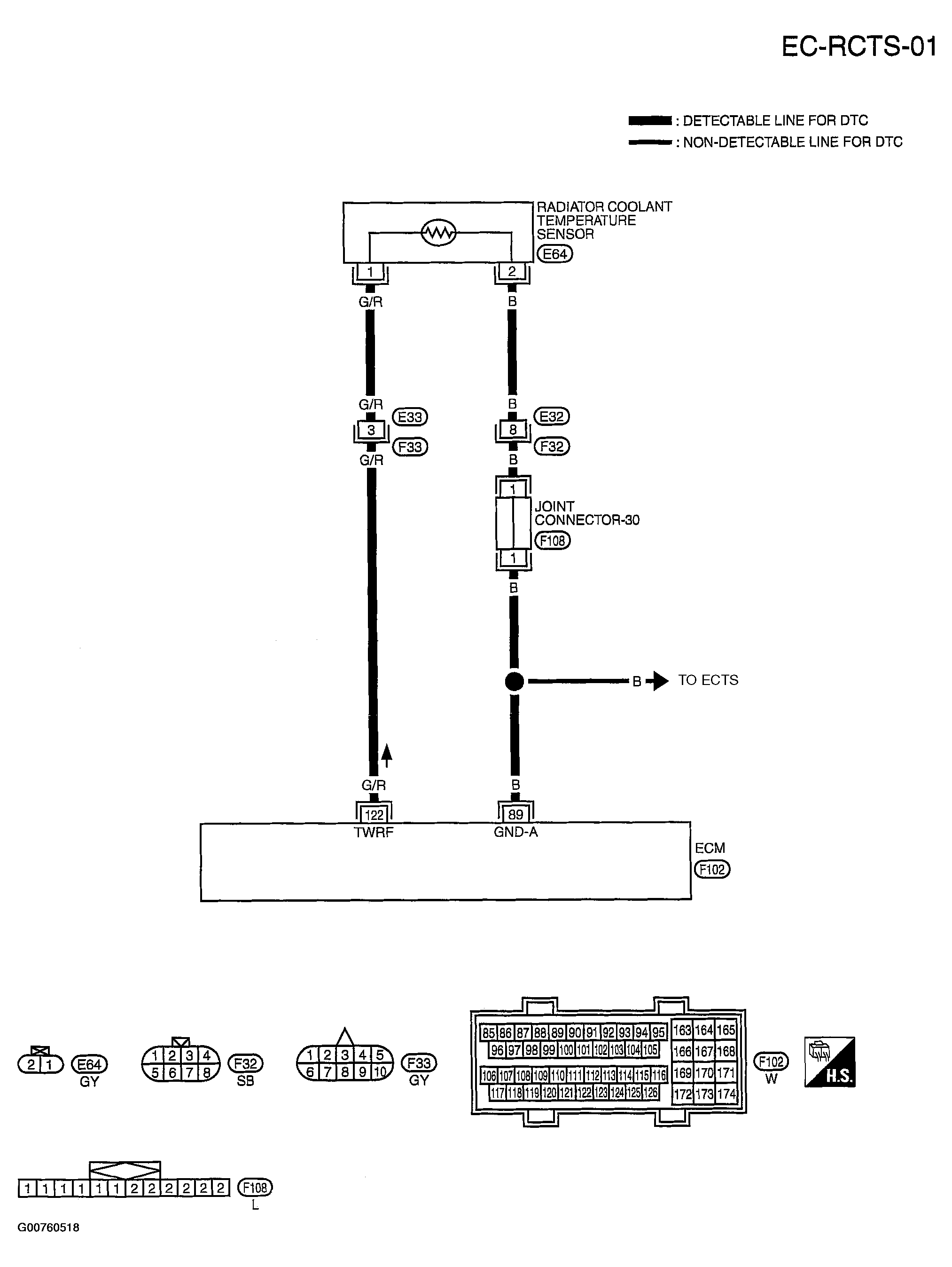

Fig 1: Circuit Diagram - EC-RCTS-01

G00760518

Courtesy of NISSAN MOTOR CO., U.S.A.
