Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

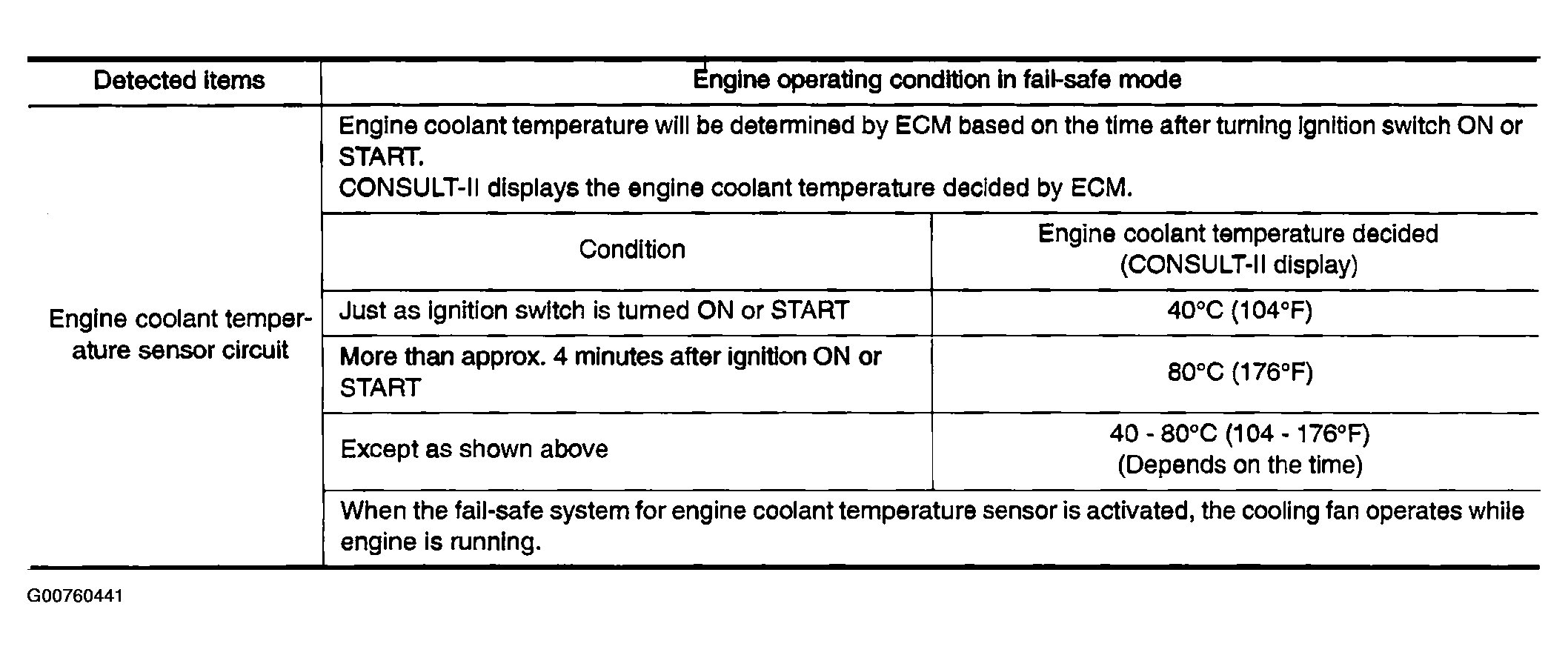

Fig 1: FAIL-SAFE MODE

G00760441

Courtesy of NISSAN MOTOR CO., U.S.A.
