DTC P0112, P0113: IAT Sensor: Wiring Diagram

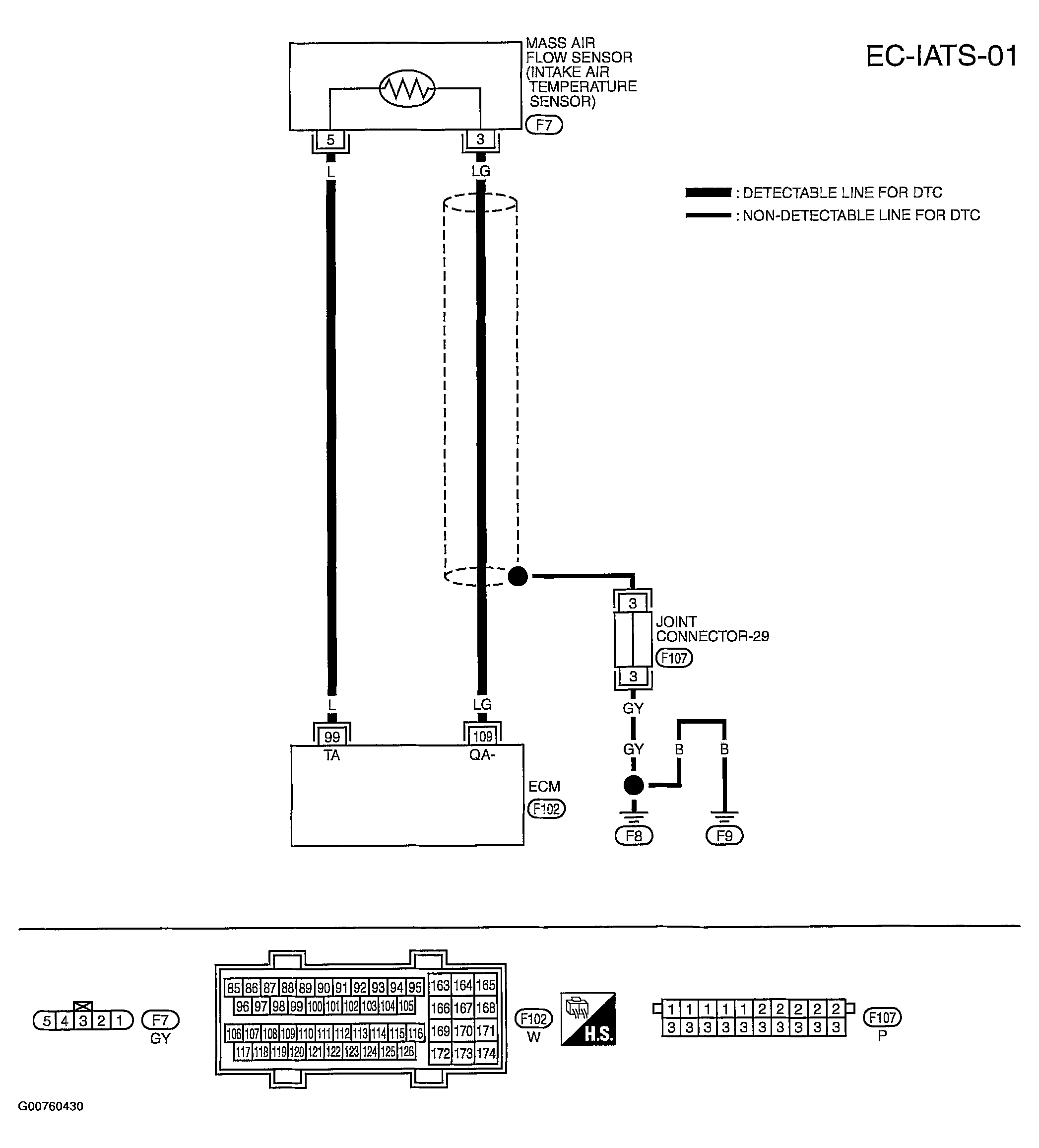

Fig 1: Circuit Diagram - EC-IATS-01

G00760430

Courtesy of NISSAN MOTOR CO., U.S.A.
