System Drawing

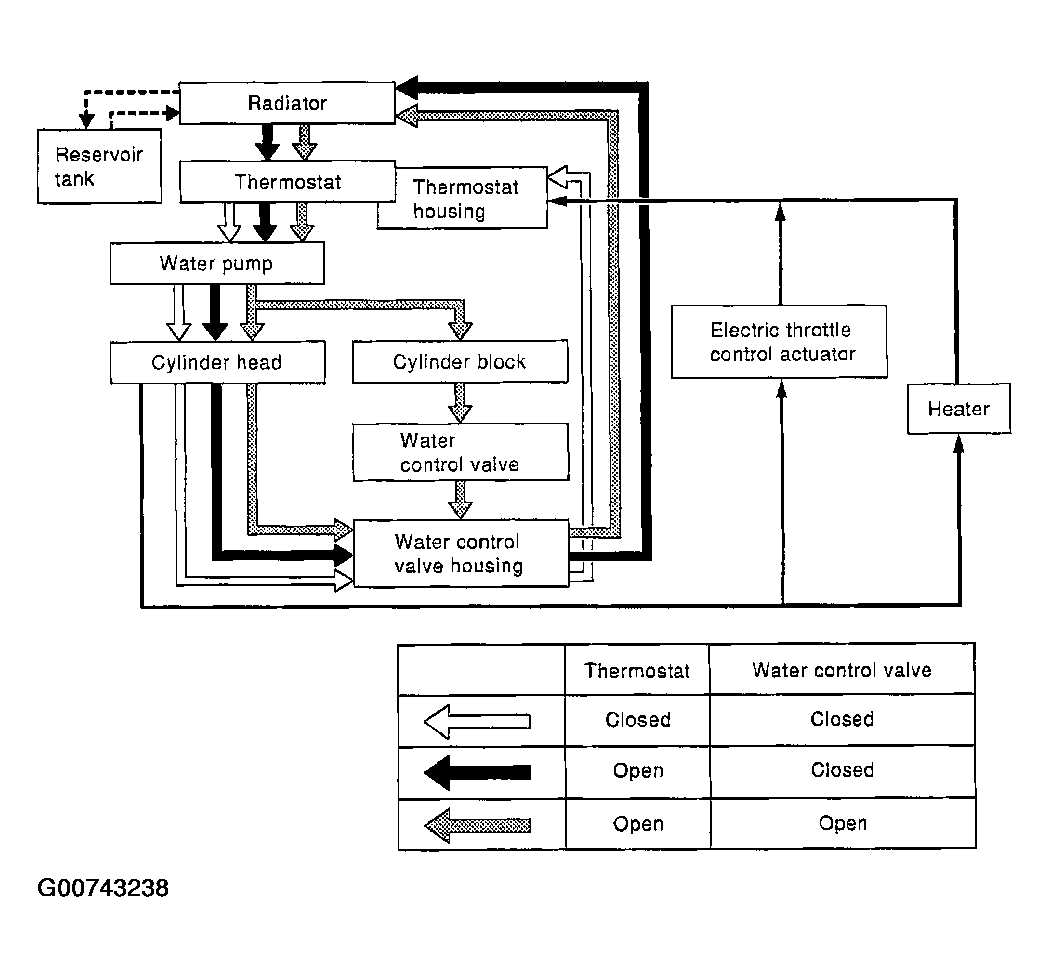

Fig 1: Displaying Cooling System Coolant Flow

G00743238

Courtesy of NISSAN MOTOR CO., U.S.A.
