Terminals And Reference Value For Combination Meter

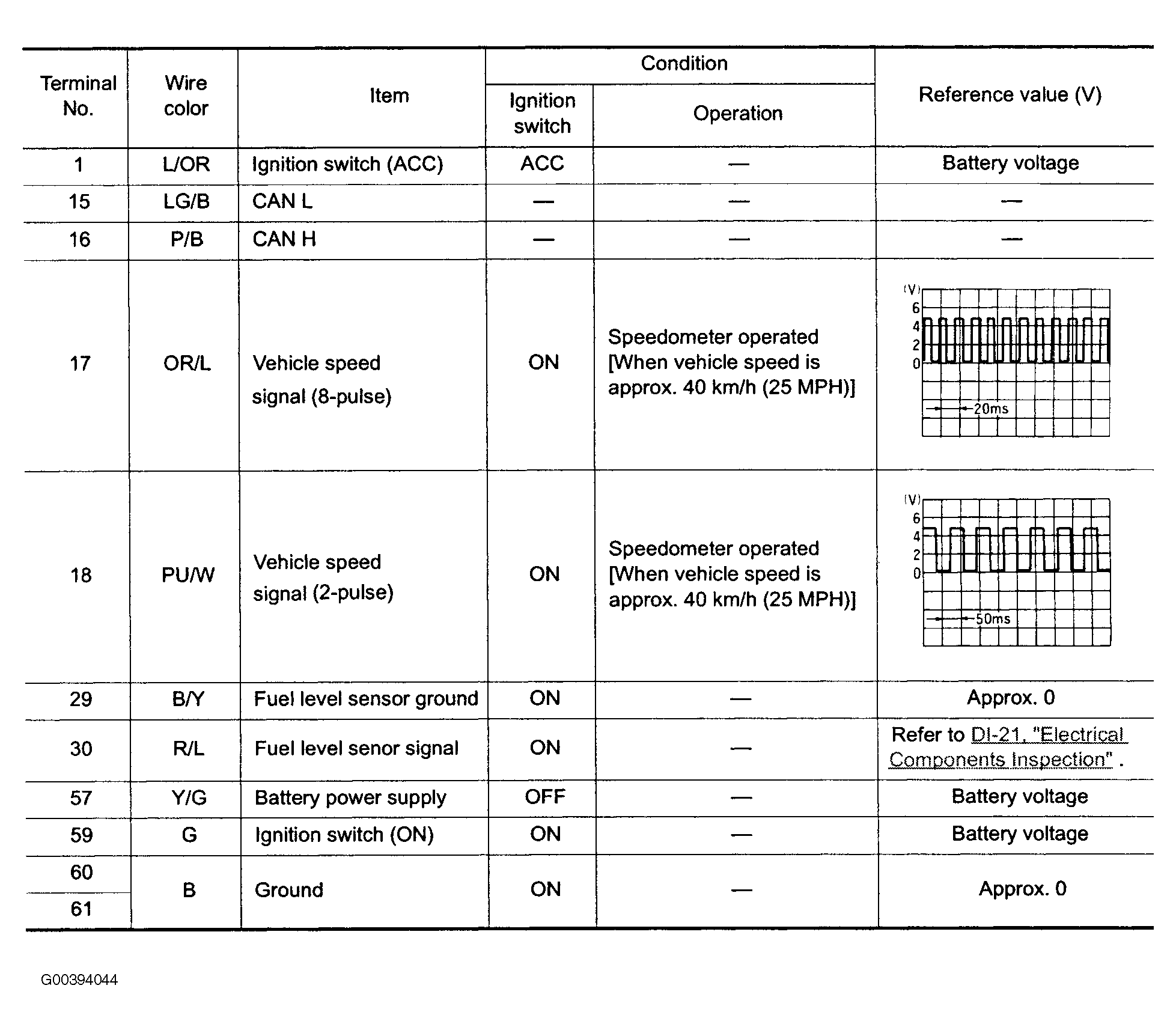

Fig 1: Terminals And Reference Values For Combination Meter

G00394044

Courtesy of NISSAN MOTOR CO., U.S.A.
