Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Trouble Diagnosis
>>
TCM Input/Output Signal Reference Values
>>
TCM Inspection Table
TCM Inspection Table

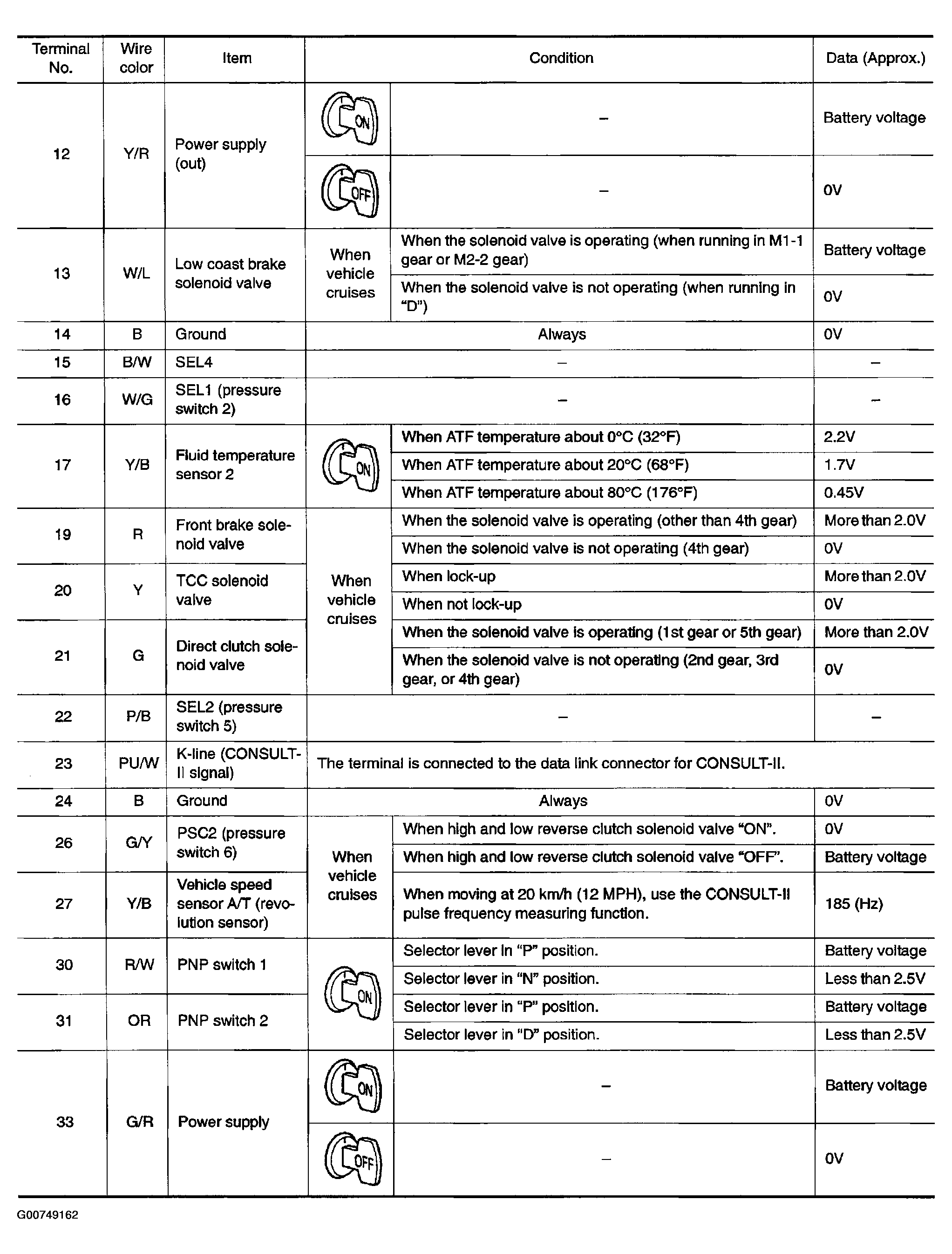

Fig 1: Checking Voltages At A/T Harness Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

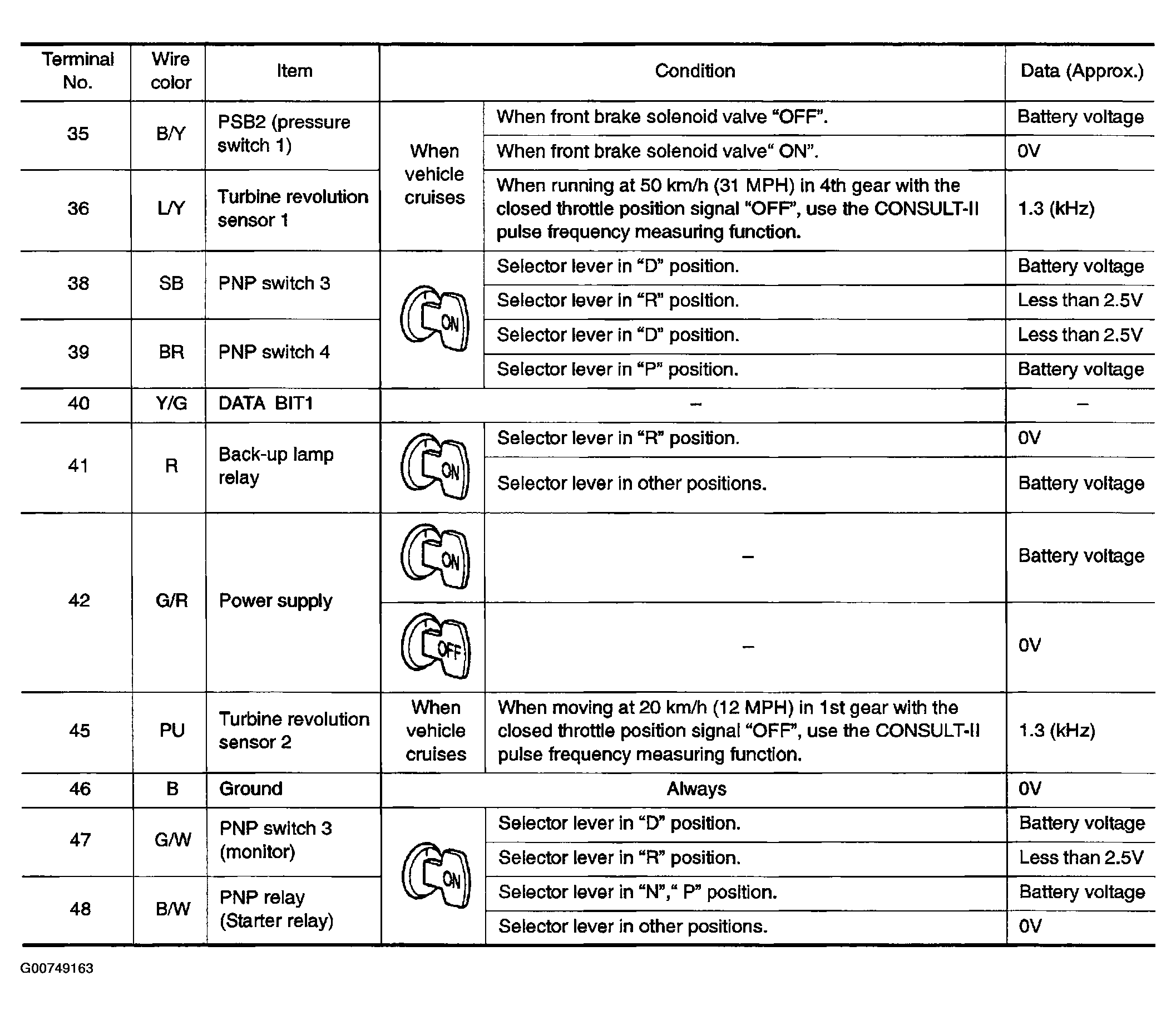

Fig 2: Checking Voltages At A/T Harness Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Checking Voltages At A/T Harness Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
