Work Flow: Notes

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In general, each customer feels differently about a malfunction. It is important to fully understand the symptoms or conditions for a customer complaint.

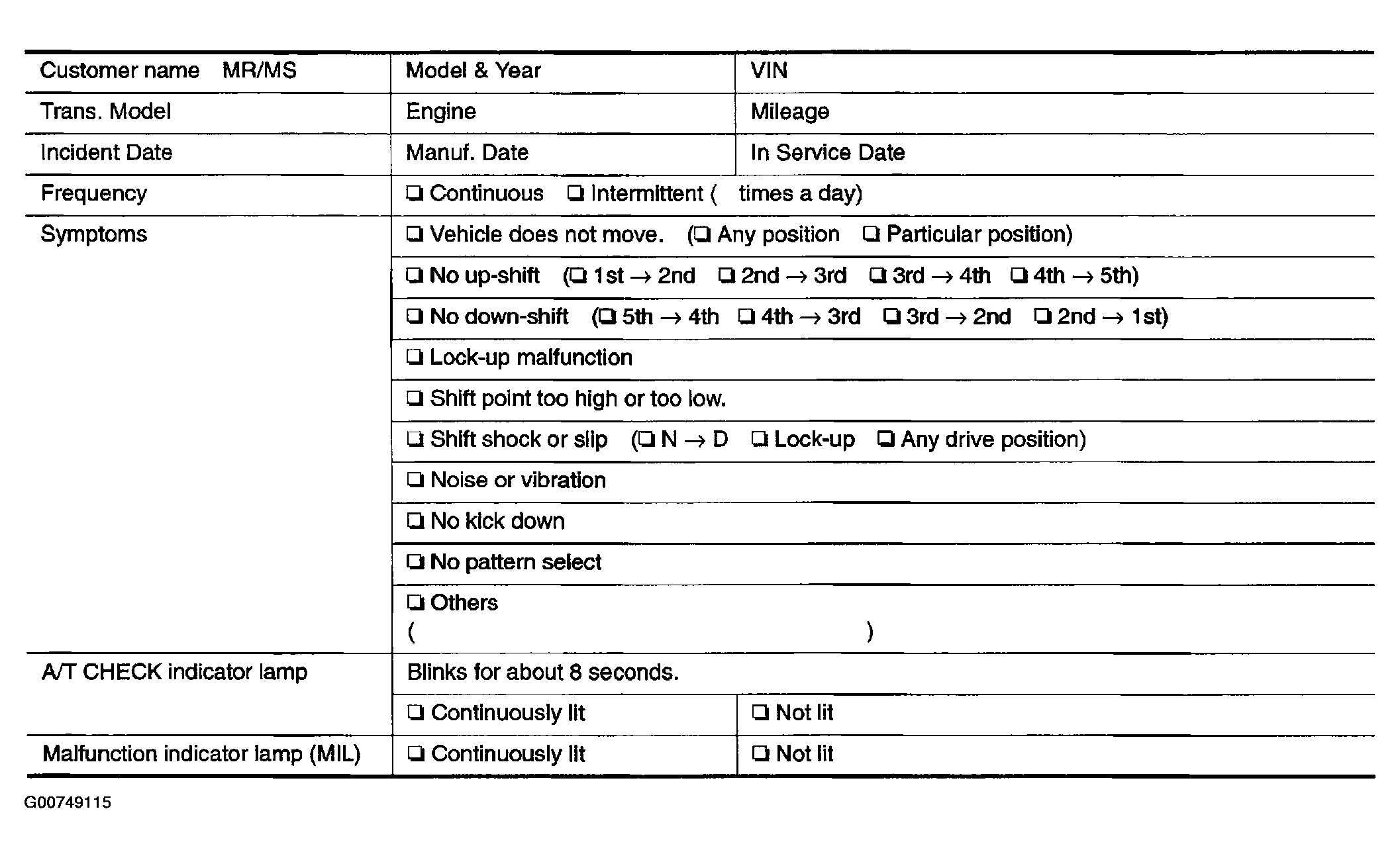

Make good use of Diagnostic Worksheets provided, see Figure-Information From Customer, and DIAGNOSTIC WORKSHEET  , to perform the best troubleshooting possible.

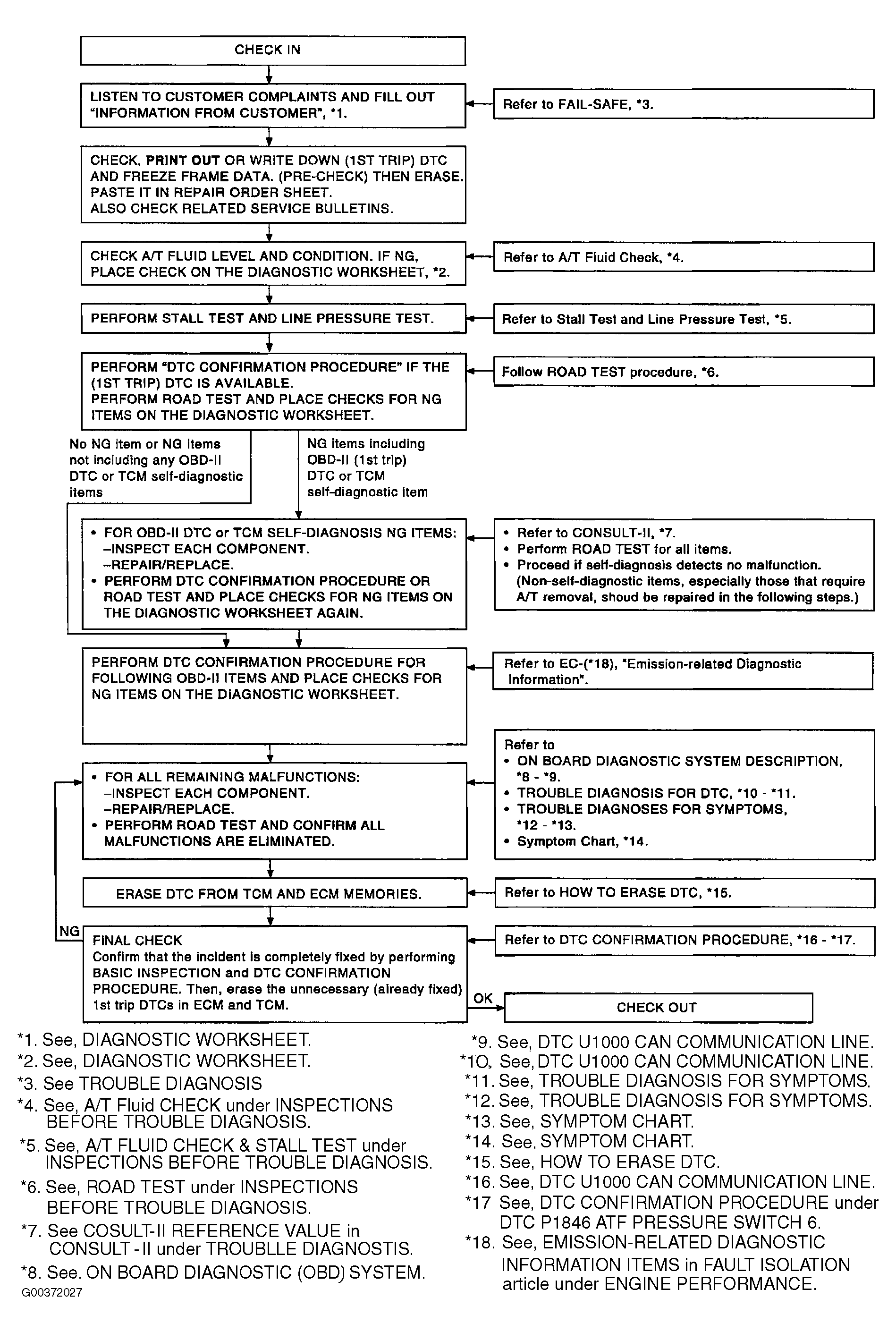

Fig 1: Work Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

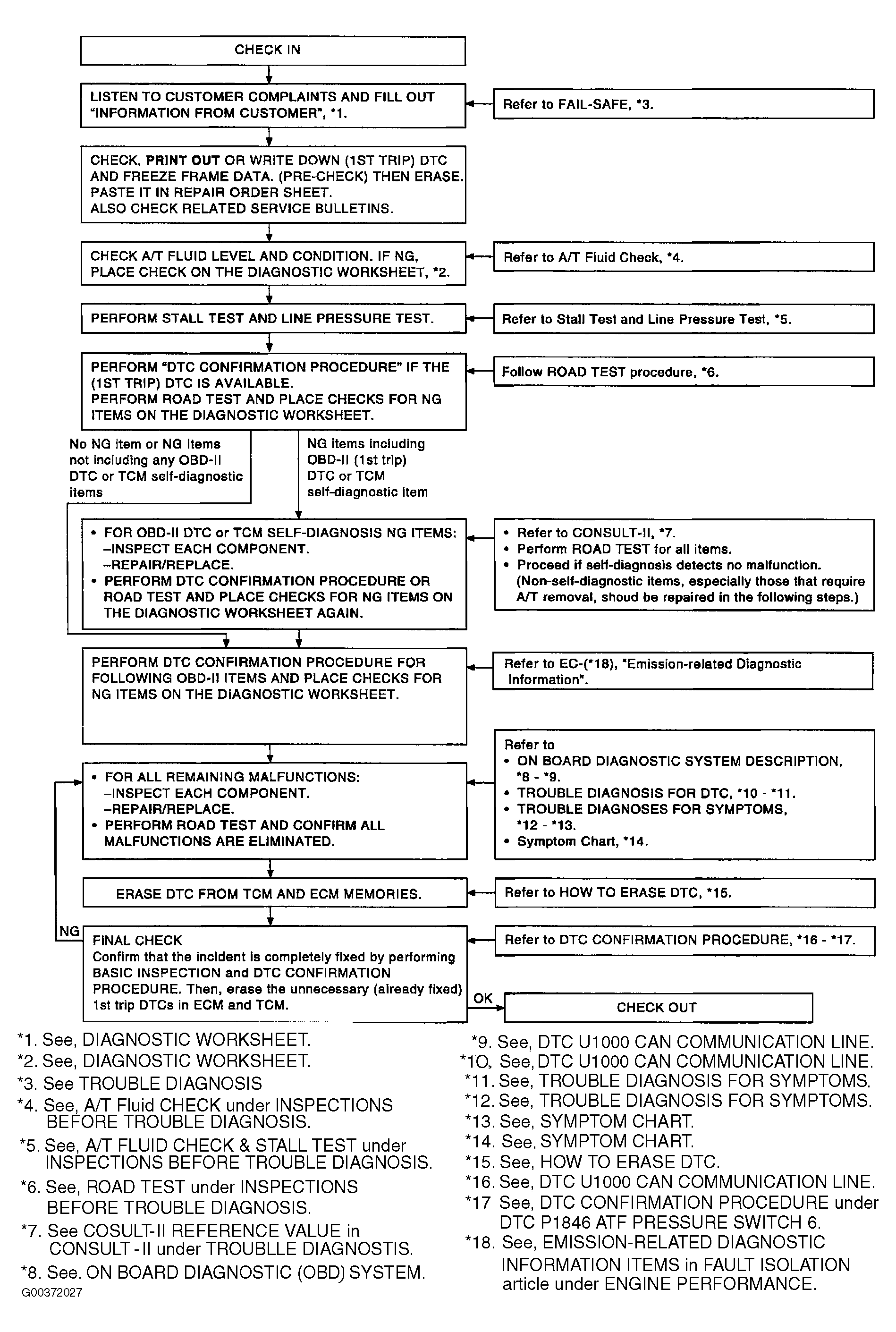

Fig 2: Work Flow Chart References Legend

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
