Oil Pump: Disassembly

  1. Remove oil pump housing from oil pump cover.

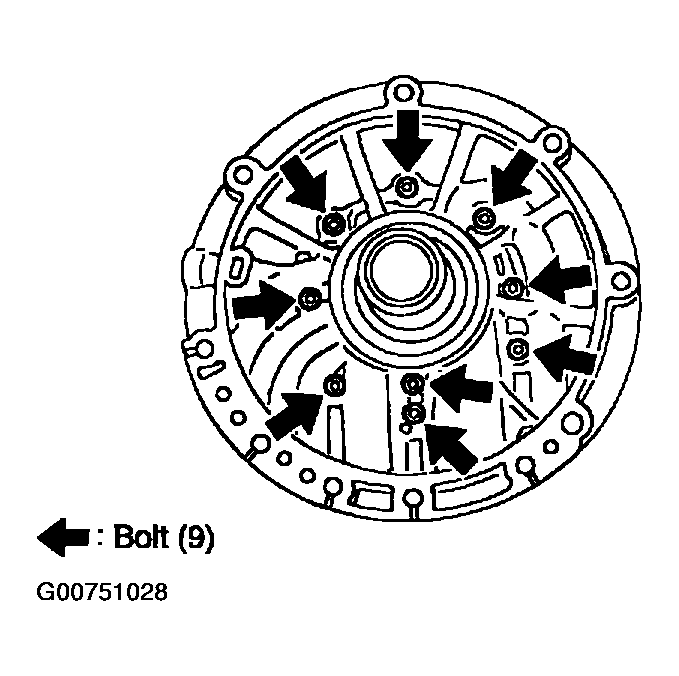

    Fig 1: Locating Oil Pump Cover Bolts
    G00751028Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove oil pump housing oil seal using a flat-bladed screwdriver.
    CAUTION: Be careful not to scratch oil pump housing.
    Fig 2: Removing Oil Pump Housing Oil Seal
    G00751029Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove O-ring from oil pump housing.
    Fig 3: Removing Oil Pump Housing "O" Ring
    G00751030Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove O-ring from oil pump cover.

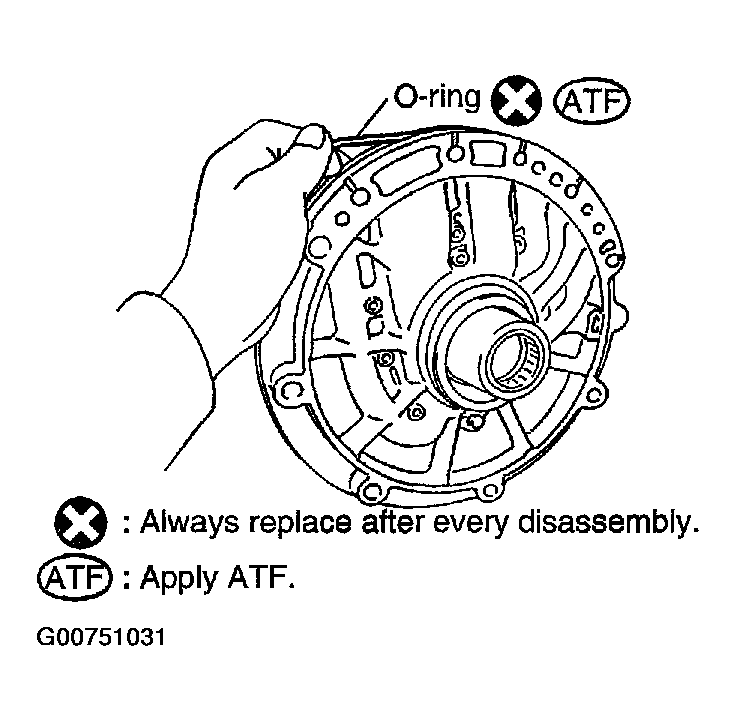

    Fig 4: Removing Oil Pump Cover "O" Ring
    G00751031Courtesy of NISSAN MOTOR CO., U.S.A.
