Diagnostic Procedure

With CONSULT-II:

1. Turn ignition switch ON and select "SELF DIAGNOSIS" mode for "A/T" with CONSULT-II.

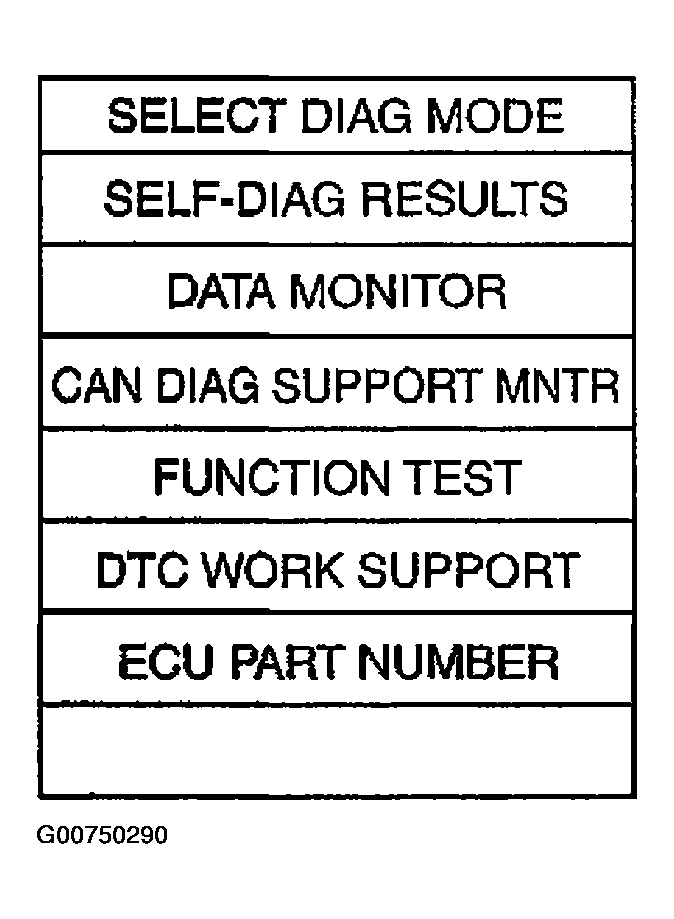

   Fig 1: Selecting "SELF DIAGNOSIS" Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Move selector lever to "R" position.
3. Depress accelerator pedal (Full throttle position).
4. Touch "ERASE".
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Perform "DTC Confirmation Procedure". Refer to " DTC CONFIRMATION PROCEDURE  "  .

Is the "TCM.EEPROM" displayed again?

1. YES : Replace TCM.
2. NO : Inspection end.
